| [Uc] Maximum Continuous Operating Voltage | 420 V |
| [Ue] Rated Operational Voltage | 600Y/347 V AC |
| Accessory / Separate Part Category | replacement part |
| Ambient Air Temperature For Operation | 65-65 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Connections - Terminals | terminals |
| Depth | 68.3 mm |
| Device Short Name | HRG || IMA |
| Enclosure Material | Black Plastic |
| Eu Rohs Directive | Under investigation |
| Height | 158.8 mm |
| Local Signalling | status LED green normal operation |
| Mounting Support | panel mounting |
| Nema Degree Of Protection | NEMA 2 |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |

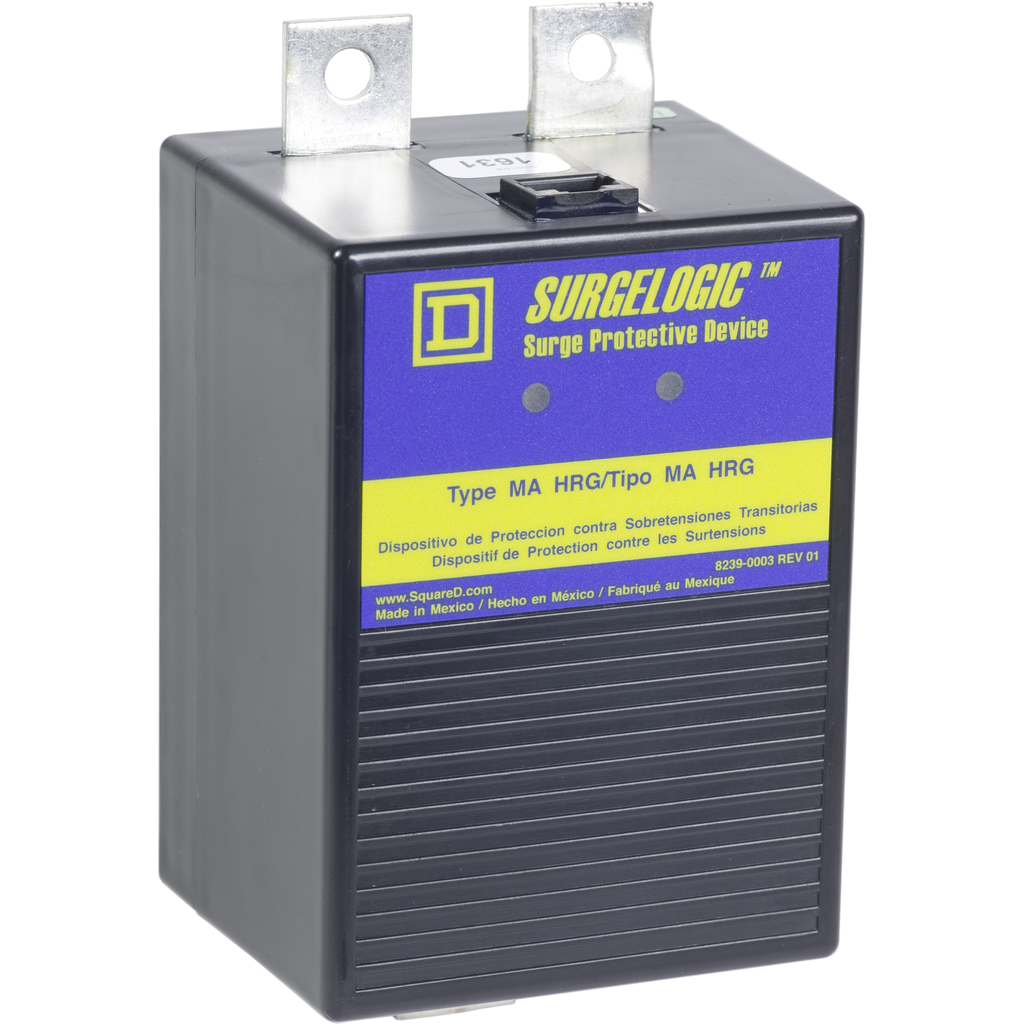

| Product Or Component Type | surge protection module |
| Provided Equipment | alarm enable/disable switch |
| Range Of Product | Surgelogic |
| Short-Circuit Protection | 200 kA |
| Standards : UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8 | 1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 |
| Surge Current | 160 kA per phase |
| Warranty | 18 months |
| Width | 82.8 mm |
| Wiring Configuration | 3-wire |
