| [Ue] Rated Operational Voltage | 240...600 V AC |
| Awg Gauge | AWG 6...300 kcmil 1 ground || AWG 1/0...600 kcmil 2 phase and neutral |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407016EN |
| Depth | 349 mm |
| Environmental Disclosure | ENVPEP1407016EN |
| Eu Rohs Directive | Compliant |
| Fuse Type | H, K or R |
| Height | 532 mm |
| Line Rated Current | 400-400 A |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Mode | plug-in |
| Phase | 3 phase |
| Poles Description | 3P |
| Product Certifications | CSA C22.2 No 27 || UL listed file E22182 |

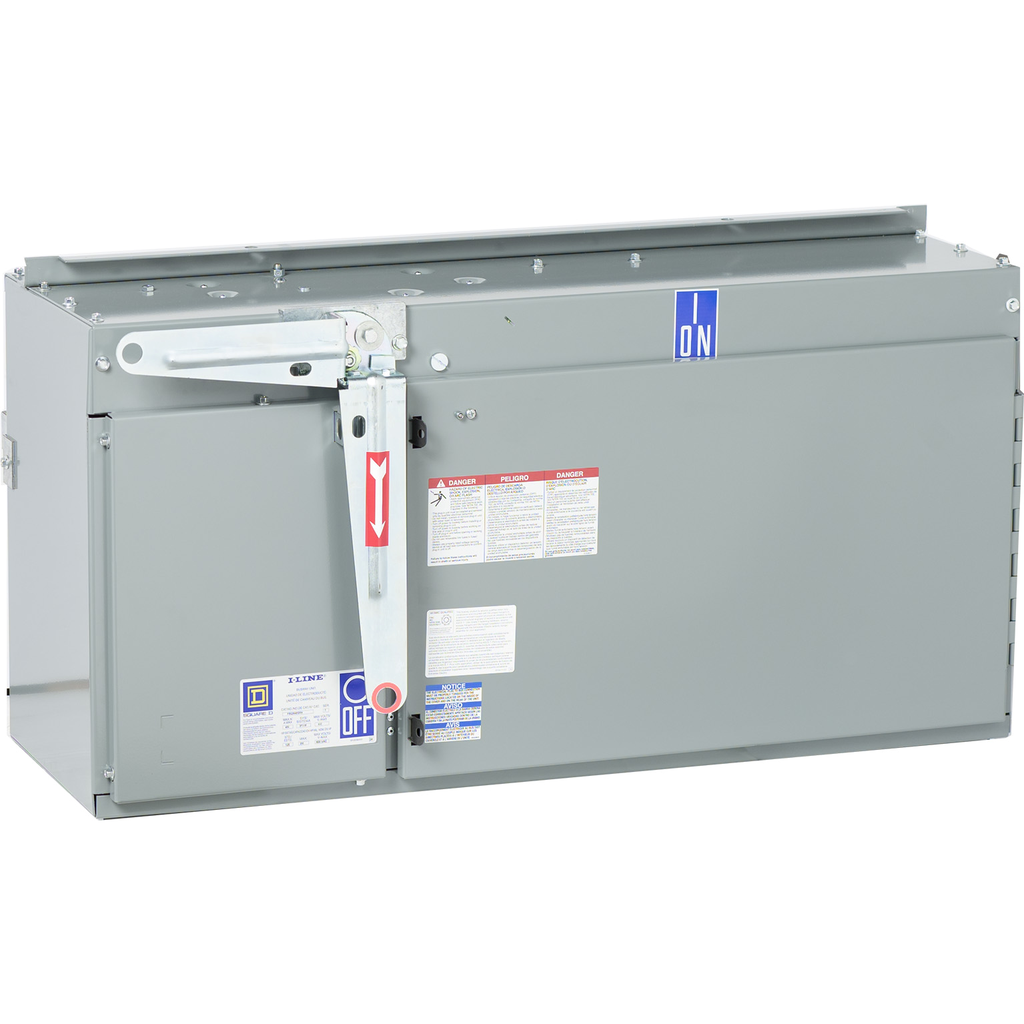

| Product Or Component Type | plug-in unit |
| Protection Type | fuse |
| Range Of Product | I-Line |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Standards | UL 857 |
| Sustainable Offer Status | Green Premium product |
| Warranty | 18 months |
| Width | 1067 mm |
| Wiring Configuration | 3-wire (integral ground bus) |
