Description:

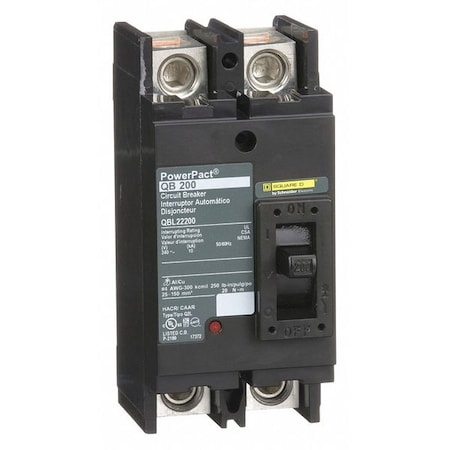

Molded Case Circuit Breaker, 200 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, For Use With -, Series QB, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Not Applicable, Frame Size 250A/QB, Circuit Breaker Mounting Style Free Standing, Height 6.47 in, Width 4.5 in
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 240V AC |
| Amps | 200 A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style, Mounting | Free Standing |
| Circuit Breaker Type | Standard |
| DC Voltage Rating | Not Rated |
| Depth | 3.93 in |
| Frame Size | 250A/QB |
| Height | 6.47 in |
| High Amp Trip Setting | 2,400 A |
| Instantaneous Trip | Fixed |
| Item | Molded Case Circuit Breaker |
| Max. AIR Rating | 10kA at 240V AC |
| Max. Wire Size | 300 MCM |
| Min. Wire Size | 4 AWG |
| Number of Poles | 2 |
| Phase | Single |
| Phase Connection | Not Applicable |
| Series | QB |
| Standards | CSA, IEC, UL Listed |
| Terminal Connection | Line/Load Lug |
| Trip Type | Thermal Magnetic |
| Width | 4.5 in |
