Description:

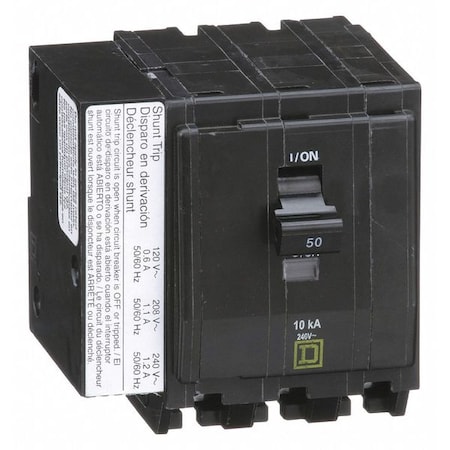

Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Three, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.12 in, Width 3 in, Depth 2.91 in, Min. Wire Size 8 AWG
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 120/240V AC |
| Amps | 50 A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Shunt Trip |
| DC Voltage Rating | 48V DC |
| Depth | 2.91 in |
| Features | Mercury Free |
| For Use With | QO Load Centers and NQ Panelboards |
| Frame Size | 100A/QO |
| Height | 79 mm |
| Interrupt Rating | 10 kA at 120/240V AC |
| Item | Miniature Circuit Breaker |
| Length, Length (Straight Wireway) | 3.12 in |
| Max. AIR Rating | 10kA at 120/240V AC |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 8 AWG |
| Number of Poles | 3 |
| Series | QO |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Lug |
| Voltage | 240VAC |
| Width | 3 in |
