Square D QOB3301021

B00VJL0C9S

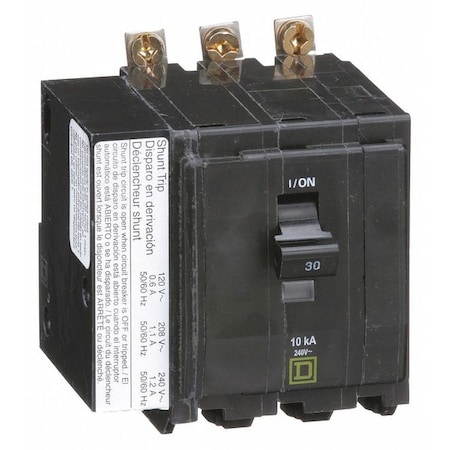

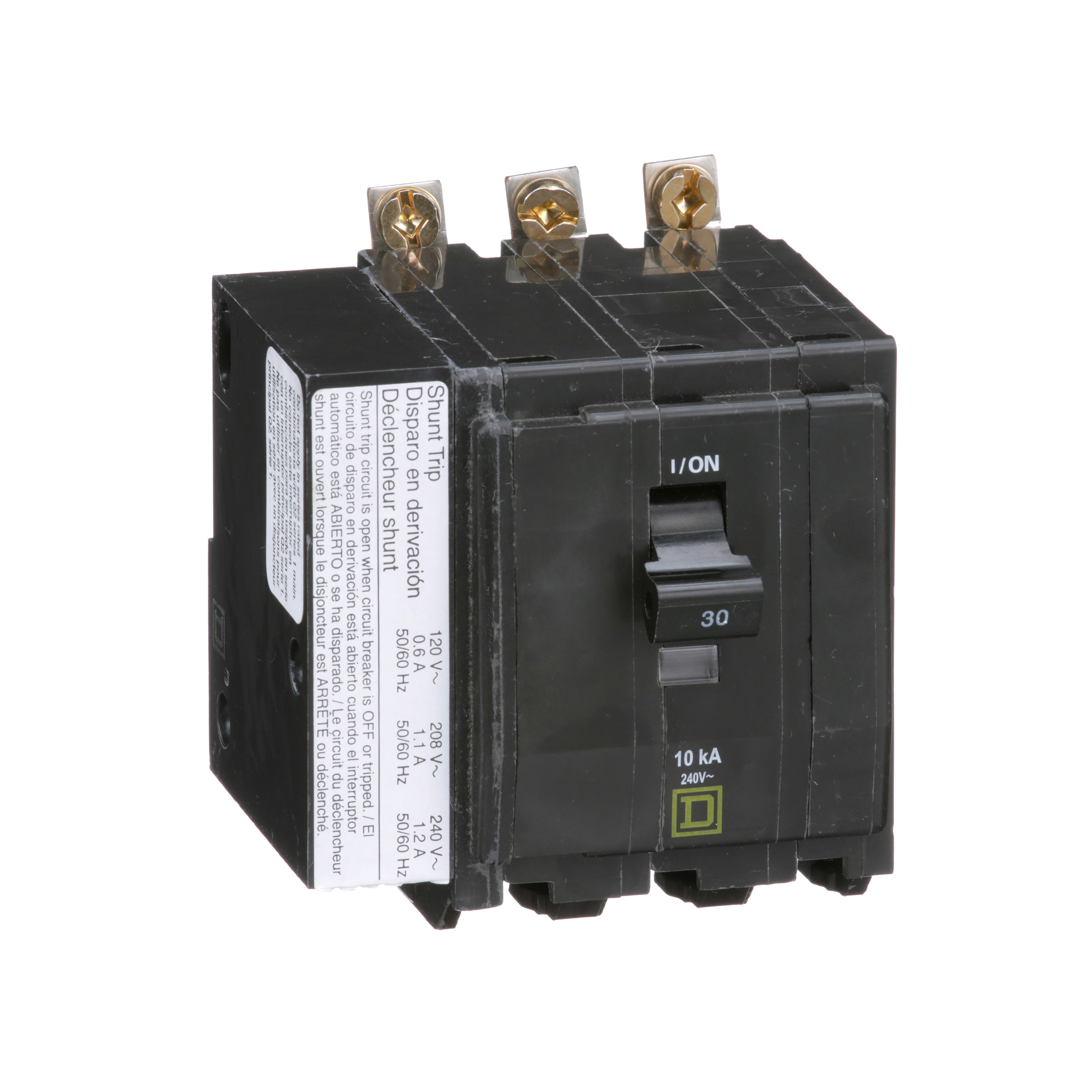

Shunt Trip Circuit Breaker 3P 30 Amp 240Vac/48Vdc

Shunt Trip Circuit Breaker 3P 30 Amp 240Vac/48Vdczoom

Attributes

Key Value
AC Voltage Rating120/240V AC
Amperage Rating30
Amps30 A
ApplicationHACR rated
AWG RangeAWG 14...AWG 8 copper o.
BrandSquare D
Catalog NumberQOB3301021
Circuit Breaker ActuatorPaddle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeShunt Trip
Compatible Panelboard/L.QO
ConnectionPressure plate;AWG 14...
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Cross Reference ProductsGrainger 2DM90|Schneide.
Current Rating30A
DC Voltage Rating48V DC
Depth2.91 in, 74 mm
DisplayQOB3301021 Mini Circuit.
ECCNEAR99
For Use WithSquare D NQOD Panelboar.
Frame Size100A/QO
GTIN00785901494409
Height76 mm, 2.99
Interrupt Rating10 kA, 10?kA 120/240 V .
ItemMiniature Circuit Break.
Item TypeShunt trip 120/208/240 .
Length3.0 in, 2.91
Length (Straight Wirewa.3.0 in
Length UOMInch
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating10kA at 120/240V AC
Max. Operating Temp.104 Degrees F
Max. Wire Size8 AWG
Min. Operating Temp.104 Degrees F
Min. Wire Size14 AWG
MountingBolt On
Mounting TypeBolt-On
No. of Poles3-Pole
Number of Poles3
Operating Temperature40 A Degrees C
Phase3, Three
Product TypeMiniature Circuit Break.
Rated Voltage120/240V AC || 240V AC .
SeriesQOB
Special FeaturesSTANDARD BOLT-ON
StandardUL LISTED - CSA CERTIFI.
StandardsCSA, UL Listed
Sub BrandQO
Terminal ConnectionPressure Plate
Torque5-5 N.m 10-25 mm? (AWG .
TypeStandard
UNSPSC39121603
UPC785901494409
Voltage240VAC
Voltage Rating120/240 V AC;240 V AC;1.
Warranty DescriptionContractual Warranty:18.
Width76 mm, 3 in, 2.99

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
SuperbreakersQOB3301021126.191In StockSquare D126.19 @ 1
AmazonSCB00VJL0C9S170.891In StockSquare D170.89 @ 1
AmazonTPB00VJL0C9S184.891In Stock1Square D184.89 @ 1
thumbzoomstandardelectricsupply.com2393324395.361In StockSquare D (Schneider Electric)395.36 @ 1
thumbzoomZoroG1216801444.151In StockSquare D1.15444.15 @ 1
us.rs-online.com72131856466.0211Square D466.02 @ 1
Newark16B1899502.511In StockSQUARE D BY SCHNEIDER ELECTRIC502.51 @ 1
Graybar91032905526.87041In StockSquare D (Schneider Electric)526.8704 @ 1
thumbzoomsustainablesupply.comC1179678560.611In StockSquare D1.15560.61 @ 1
thumbzoomcrescentelectric.com84263565.51In StockSquare D565.5 @ 1
thumbzoomRaptor SuppliesAF9GVY851.5324351In StockSQUARE D851.532435 @ 1
simplybreakers.comQOB3301021868.991In StockSchneider Electric868.99 @ 1
