| [Ie] Rated Operational Current | 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC |
| [Ithe] Conventional Enclosed Thermal Current | 15 A -40-55 ?C |
| [Uc] Control Circuit Voltage | 12 V DC |
| [Ui] Rated Insulation Voltage | 250 V IEC || 300 V CSA || 300 V UL |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50 ?s |
| Ambient Air Temperature For Operation | -40-55 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Average Coil Consumption | 1.5 W |
| Average Resistance | 80 Ohm at 20 ?C +/- 10 % |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Contacts Material | AgNi |
| Contacts Type And Composition | 3 C/O |
| Control Type | lockable test button |
| Device Presentation | complete product |

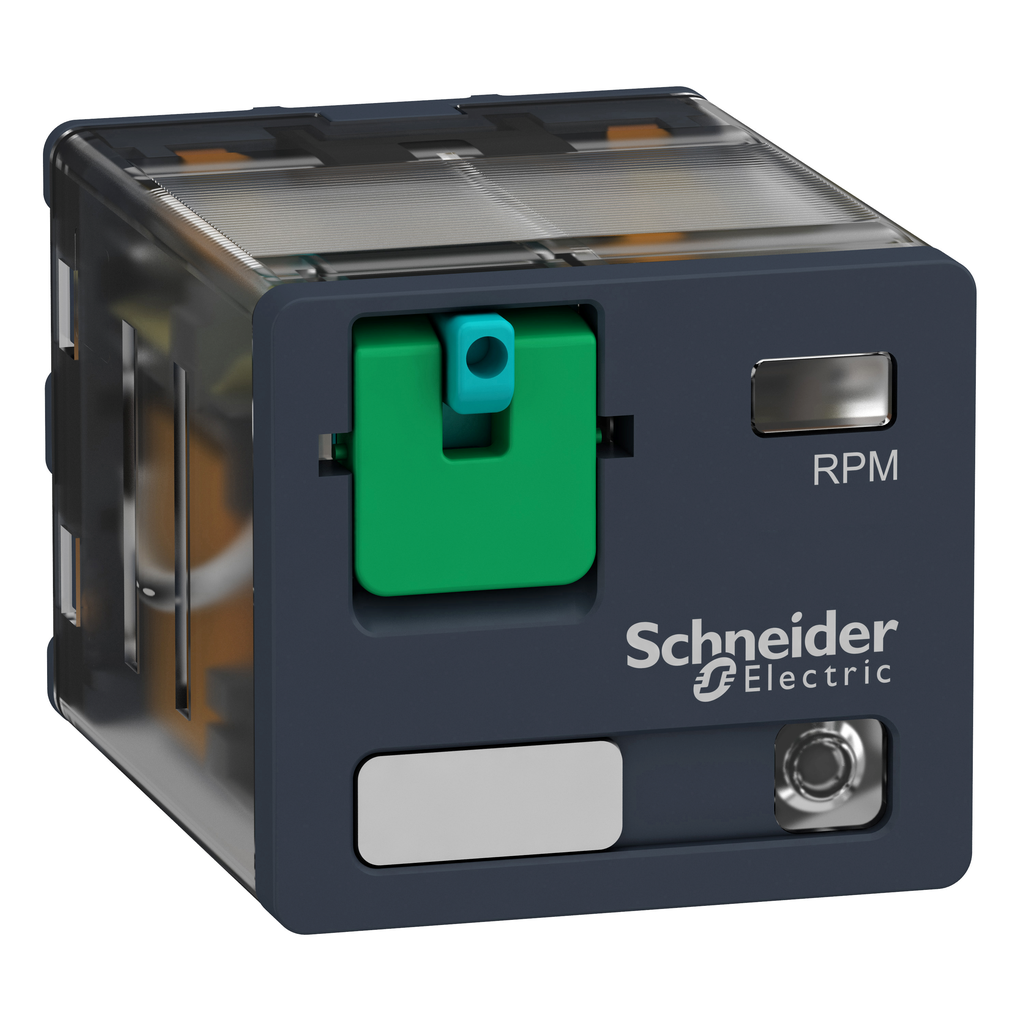

| Device Short Name | RPM |
| Dielectric Strength | 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic |
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Electrical Durability | 100000 cycles resistive |
| Environmental Disclosure | ENVPEP1406038EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ip Degree Of Protection | IP40 conforming to EN/IEC 60529 |
| Load Current | 15 A 250 V AC || 15 A 28 V DC |
| Maximum Switching Capacity | 3750 VA || 420 W |
| Maximum Switching Voltage | 250 V IEC |
| Mechanical Durability | 10000000 cycles |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Net Weight | 0.054 kg |
| Operating Position | any position |
| Operating Time, Reset Time | 20 ms at nominal voltage |
| Pollution Degree | 3 |
| Product Certifications | UL || EAC || CSA |
| Product Or Component Type | plug-in relay |
| Protection Category | RT I |
| Range Of Product | Harmony Electromechanical Relays |
| Rated Operational Voltage Limits | 9.6...13.2 V DC |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Safety Reliability Data | B10d = 100000 |
| Series Name | Power |
| Shape Of Pin | flat |
| Shock Resistance | 15 gnin operation || 30 gnnot operating |
| Standards | CSA C22.2 No 14 || EN/IEC 61810-1 || UL 508 |
| Status Led | with |
| Sustainable Offer Status | Green Premium product |
| Test Levels | level A |
| Utilisation Coefficient | 20 % |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
