| [Uc] Control Circuit Voltage | 24 V DC |
| Ambient Air Temperature For Operation | -40-160 ?F |
| Awg Gauge | AWG 18...AWG 12 copper |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1310013EN |
| Contacts Type And Composition | 4 NO 4 standard contact cartridges |
| Control Circuit Voltage Limits | operational 0.8...1.1 Uc DC |
| Depth | 5.17 in |
| Electrical Connection | ring tongue |
| Environmental Disclosure | ENVPEP1310013EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 3.56 in |
| Hold-In Power Consumption In W | 18-18 W |
| Inrush Power In W | 18 W |
| Line Rated Current | 10 A AC || 5 A DC |
| Mercury Free | Yes |
| Mounting Support | panel |
| Operating Time | 37 ms - pick-up || 21 ms - drop-out |
| Product Certifications | CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR |

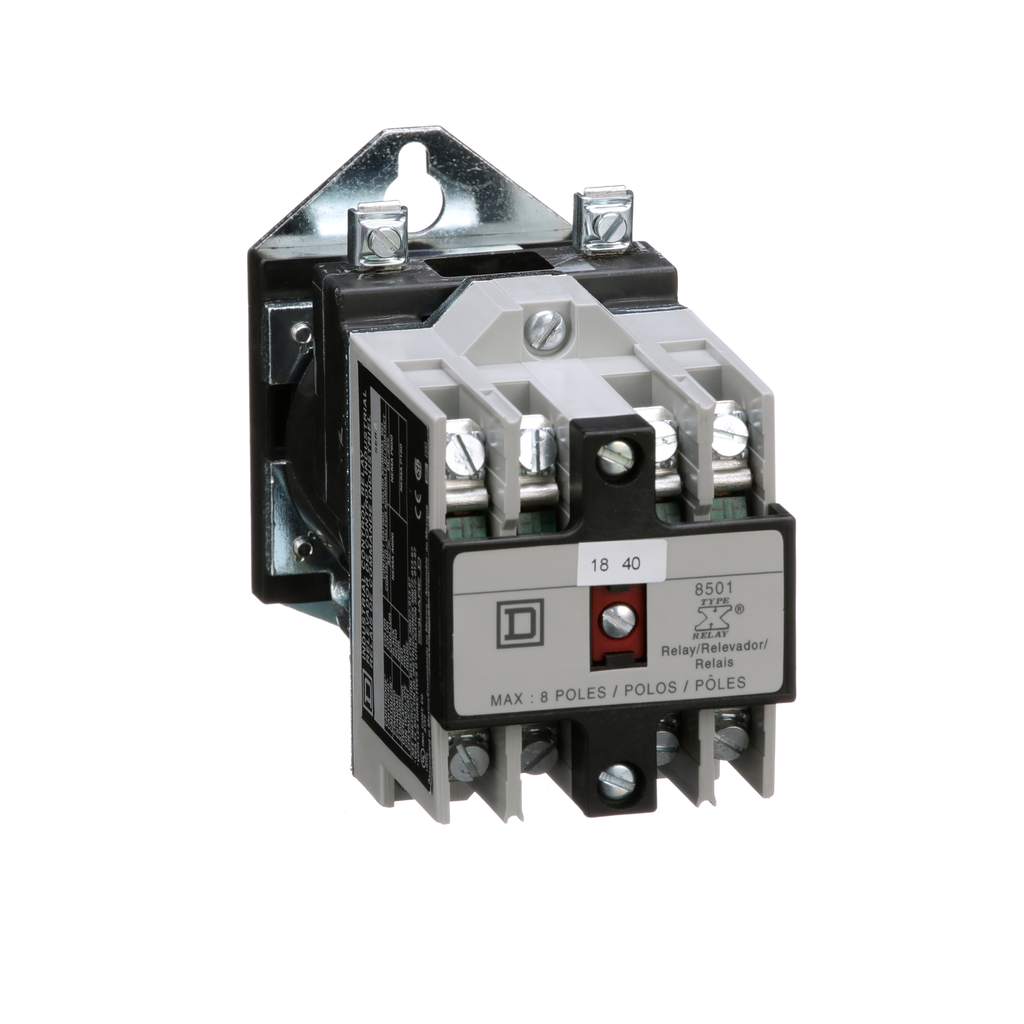

| Product Or Component Type | relay |
| Range Of Product | 8501X |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Relay Type | control |
| Rohs Exemption Information | Yes |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
| Warranty | 18 months |
| Width | 2.23 in |
