| [Uc] Maximum Continuous Operating Voltage | 552 V |
| [Ue] Rated Operational Voltage | 480 V delta AC |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Depth | 101 mm |
| Eu Rohs Directive | Compliant |
| Height, Width | 152 mm |
| Input Voltage | 1800 V L - G || 2000 V N - G |
| Line Rated Current | 20 kA |
| Mercury Free, Rohs Exemption Information | Yes |
| Nema Degree Of Protection | NEMA 4X |
| Phase | 3 phase |

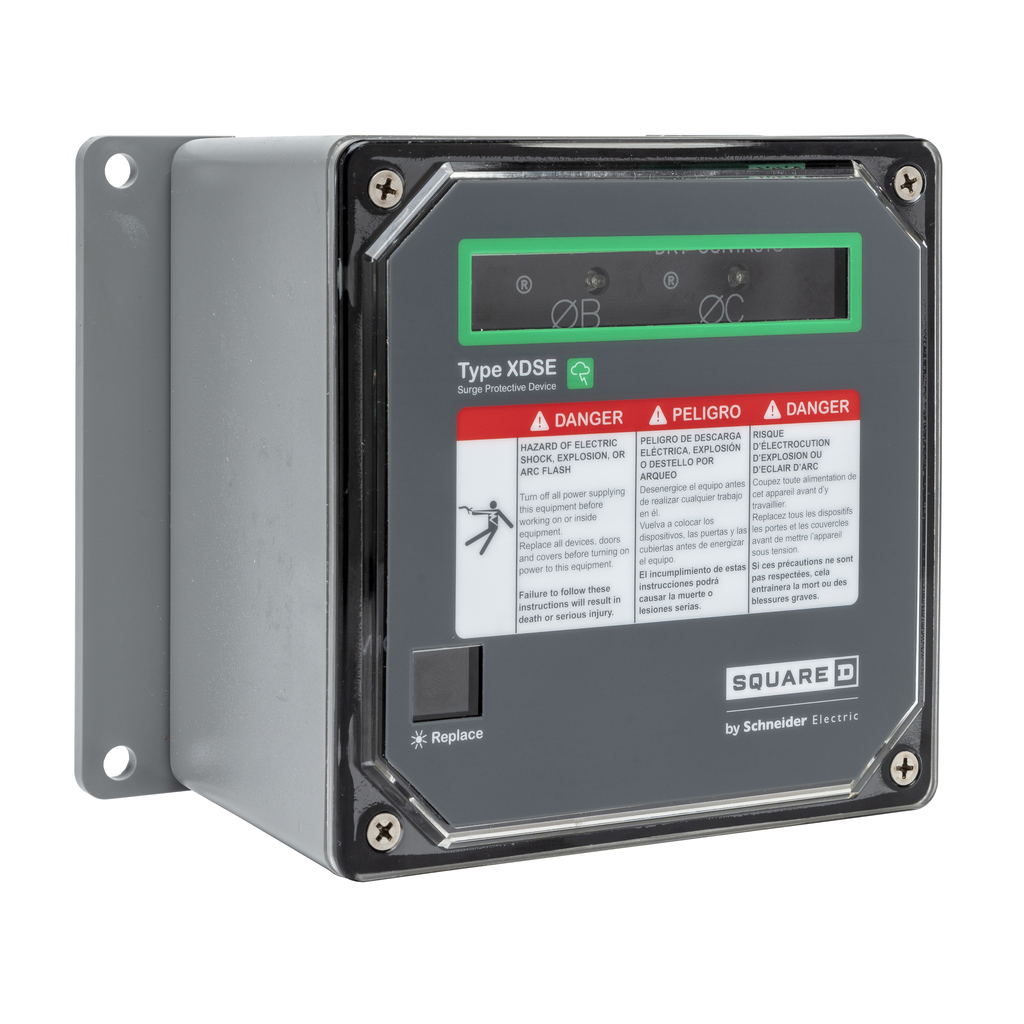

| Product Or Component Type | surge protection device |
| Surge Current | 100 A per phase |
| Wiring Configuration | 3-wire (isolated ground) |
