| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Ambient Air Temperature For Operation, Ambient Air Temperature For Storage | -40-70 ?C |
| Bezel Material | chromium plated metal |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Contact Operation | slow-break |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Type And Composition | 2 NO |
| Contacts Usage | standard contacts |
| Depth | 100 mm |
| Device Mounting | built-in |
| Device Presentation | complete product |
| Device Short Name | XB4F |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Environmental Disclosure | ENVPEP1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Center | 40 x 50 mm 1...6 mm thick panel) |
| Fixing Collar Material | zamak |
| Fixing Mode | by screws |
| Head Type | built-in-flush |
| Height | 47 mm |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E |
| Key Withdrawal Position | left and center |
| Mechanical Durability | 1000000 cycles |
| Mercury Free, Rohs Exemption Information | Yes |
| Mounting Diameter | 30.5 mm |
| Net Weight | 0.127 kg |
| Operator Position Information | 3 positions +/- 45? |

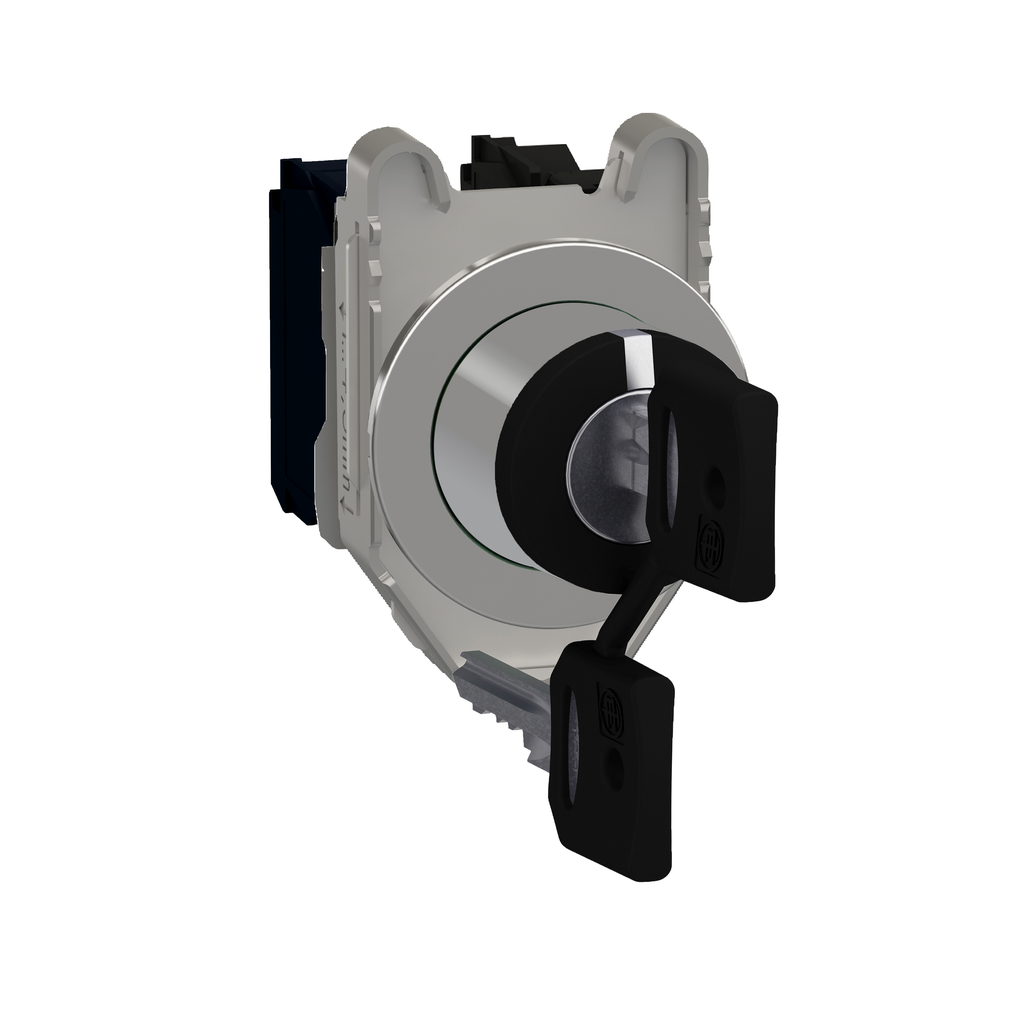

| Operator Profile | black key switch |
| Overvoltage Category | class I IEC 60536 |
| Positive Opening | without |
| Product Certifications | UL Listed || CSA || CCC || EAC |
| Product Or Component Type | selector switch |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Resistance To High Pressure Washer | 7000000 Pa 55 ?C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm |
| Shape Of Signaling Unit Head | round |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1 |
| Sustainable Offer Status | Green Premium product |
| Terminals Description Iso N?1 | (23-24)NO || (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Torque Value | 0.14 N.m NO changing electrical state |
| Type Of Keylock | Ronis 455 |
| Type Of Operator | stay put |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 36.6 mm |
