| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Body Material, Head Material | zamak |
| Body Type | fixed |
| Cable Composition | 5 x 0.75 mm? |
| Cable Length | 10 m |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI110612EN |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Contact Operation | snap action |
| Contacts Insulation Form | Zb |
| Contacts Type And Composition | 1 NC + 1 NO |
| Depth | 16 mm |
| Device Short Name | XCMD |
| Electrical Connection | removable cable connector |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Environmental Disclosure | ENVPEP110612EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by the body |
| Head Type | plunger head |
| Height | 50-50 mm |
| Ik Degree Of Protection | IK06 EN 62262 |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529 |
| Material | metal |
| Maximum Actuation Speed | 0.5 m/s |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Mechanical Durability | 10000000 cycles |
| Mercury Free, Rohs Exemption Information | Yes |
| Minimum Force For Tripping | 7 N |
| Movement Of Operating Head | linear |
| Net Weight | 0.185 kg |
| Number Of Poles | 2 |
| Overvoltage Category | class I IEC 61140 || class I NF C 20-030 |
| Positive Opening | with |
| Positive Opening Minimum Force | 35 N |
| Product Certifications | CCC || UL || CSA |

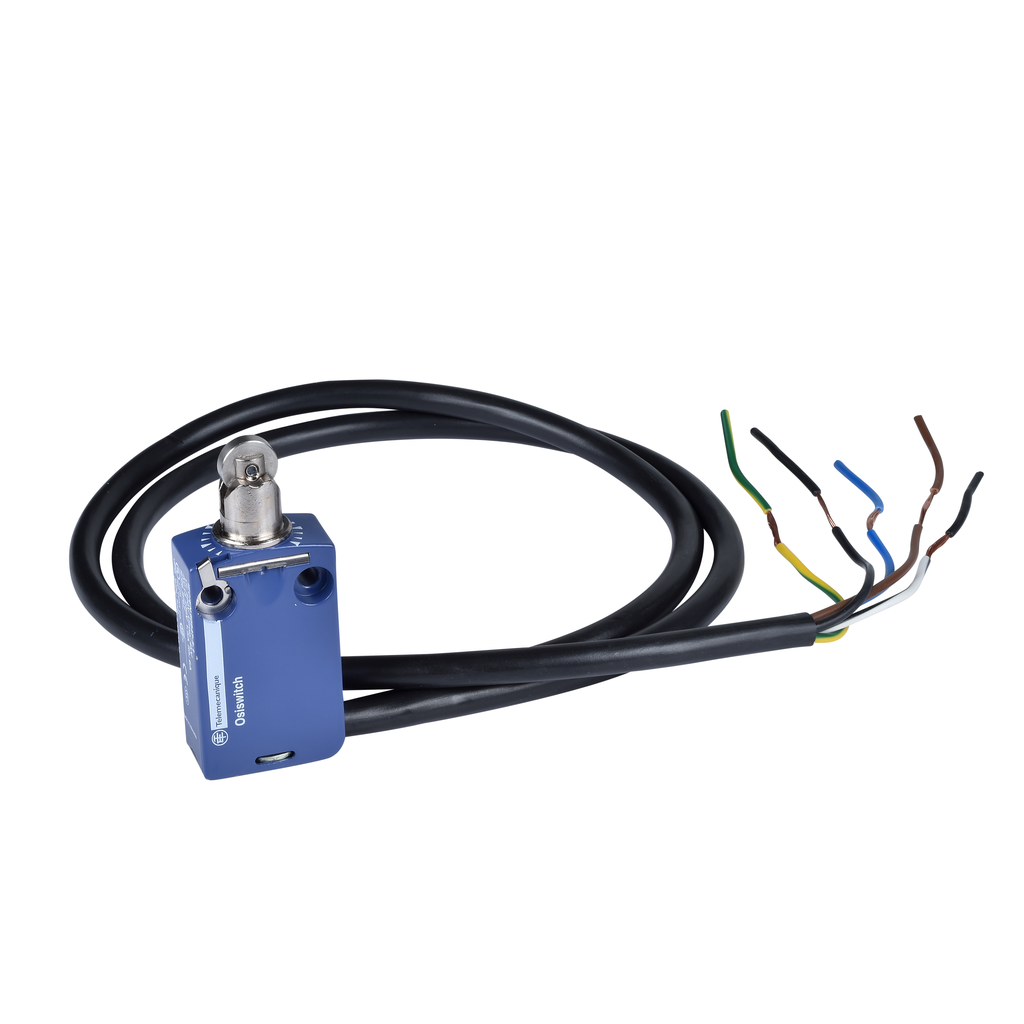

| Product Or Component Type | limit switch |
| Protective Treatment | TC |
| Range Of Product | Telemecanique Limit switches XC Standard |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Sensor Design | miniature |
| Series Name | standard format |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Standards | EN/IEC 60947-5-1 || EN/IEC 60204-1 || UL 508 || CSA C22.2 No 14 |
| Sustainable Offer Status | Green Premium product |
| Switch Actuation | by 30? cam |
| Type Of Approach | lateral approach, 2 directions |
| Type Of Operator | spring return roller plunger metal |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Width | 30 mm |
| Wire Insulation Material | PvR |
