| [Ithe] Conventional Enclosed Thermal Current | 6 A |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 400 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 || 4 kV IEC 60664 |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Body Material, Head Material | zamak |
| Cable Entry | 1 entry tapped Pg 13.5 |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Clamping Connection Capacity | 1 x 0.34...2 x 0.75 mm? |
| Component Name | XCSD |
| Contact Code Designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A |
| Contact Operation | slow-break, break before make |
| Contacts Type And Composition | 1 NC + 1 NC + 1 NO |
| Depth | 35 mm |
| Design | compact |
| Electrical Connection | terminal |
| Electrical Shock Protection Class | class I NF C 20-030 || class I EN/IEC 61140 |
| Enclosure Material | Plastic |
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Head Type | rotary head |
| Height | 122-122 mm |
| Ik Degree Of Protection | IK06 EN 50102 |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Material | metal |
| Maximum Actuation Speed | 1.5 m/s |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
| Mechanical Durability | 10000000 cycles |
| Mercury Free, Rohs Exemption Information | Yes |
| Minimum Torque For Tripping | 0.1 N.m |
| Net Weight | 0.22 kg |
| Number Of Poles | 3 |
| Positive Opening | with NC contact |
| Positive Opening Minimum Torque | 0.25 N.m |
| Product Certifications | UL || CSA |

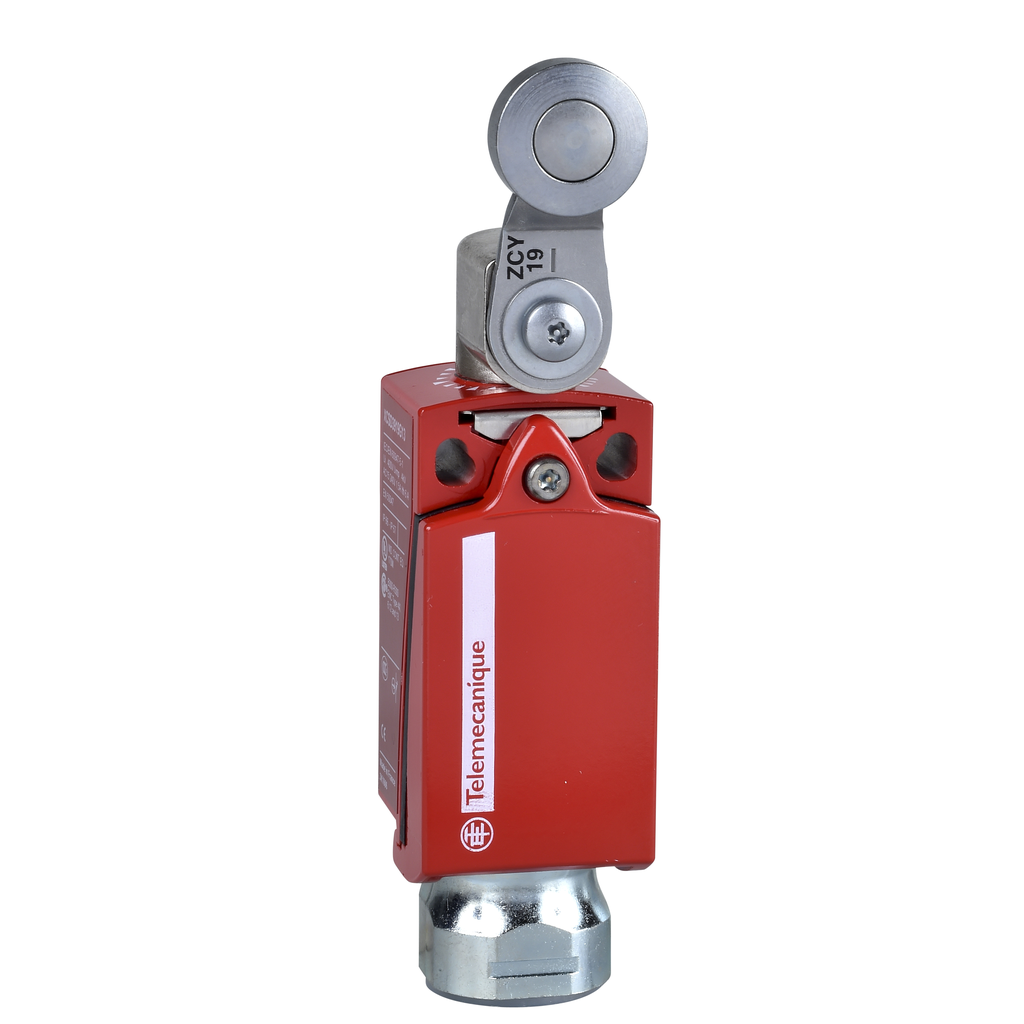

| Product Or Component Type | safety limit switch |
| Protection Technology | plastic protective cover, secured by 5-lobe socket head safety screw |
| Protective Treatment | TC |
| Range Of Product | Telemecanique Safety switches XCS |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Repeat Accuracy | 0.1 mm on tripping points, 1 million operating cycles for head with end plunger |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508 |
| Safety Reliability Data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Short-Circuit Protection | 6 A cartridge fuse gG (gl) |
| Standards | CSA C22.2 No 14 || EN/IEC 60204-1 || EN/IEC 60947-5-1 || UL 508 || EN 1088/ISO 14119 |
| Sustainable Offer Status | Green Premium product |
| Switch Actuation | by 30? cam |
| Type Of Operator | steel roller lever |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Width | 34 mm |
