| Ambient Air Temperature For Operation, Ambient Air Temperature For Storage | -40-70 ?C |
| Bezel Material | plastic colour plated grey |
| Cad Overall Depth | 46 mm |
| Cad Overall Height, Cad Overall Width | 37 mm |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Device Presentation | basic element |
| Device Short Name | ZB5 |
| Electrical Composition Code | C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Head Type | built-in-flush |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 |
| Mechanical Durability | 1000000 cycles |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Mounting Diameter | 30 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Net Weight | 0.031 kg |
| Operator Position Information | 3 positions +/- 45? |
| Operator Profile | white standard handle |
| Overvoltage Category | class II IEC 60536 |
| Product Certifications | LROS (Lloyds register of shipping) || BV || CSA || DNV || GL || UL Listed |

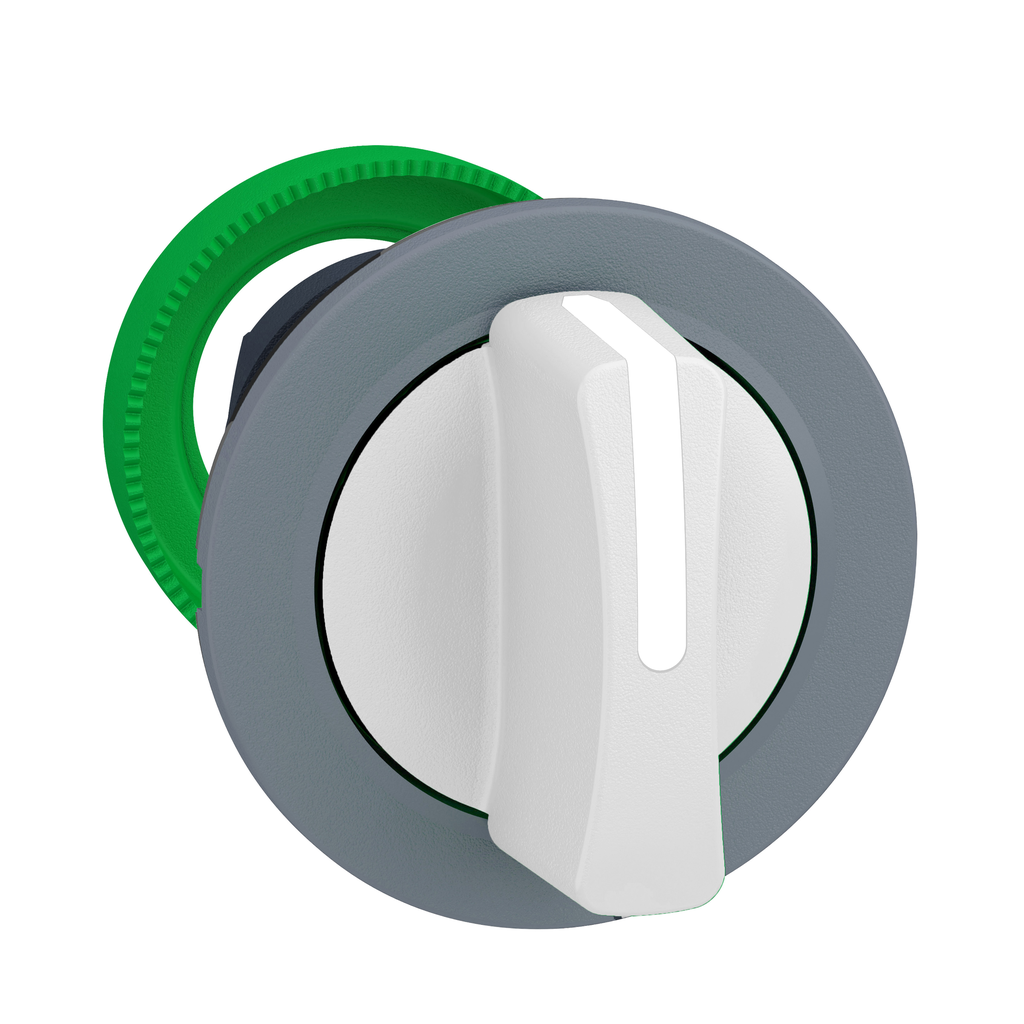

| Product Or Component Type | head for selector switch |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Resistance To High Pressure Washer | 7000000 Pa 55 ?C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | round |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Type Of Operator | right to centre spring return |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
