Description:

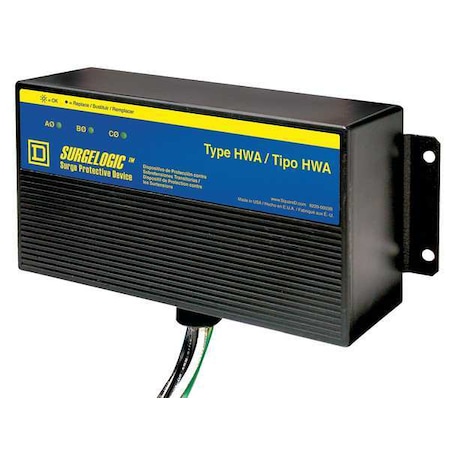

Surge Protection Device, Nonmetallic, Black, Depth 3.11 in, Enclosure Material Plastic, Enclosure NEMA Rating 4X
Attributes
| Key | Value |
|---|---|
| Cable Length | 33.6 in |
| Depth | 3.11 in |
| Enclosure Material | Plastic |
| Enclosure NEMA Rating | 4X |
| Filtering / Nonfiltering | Filtering |
| Height | 122 mm |
| Item | Surge Protection Device |
| Length | 4.8 in |
| Length (Straight Wireway) | 4.8 in |
| Lightning Impulse Current | 100 kA |
| Max. Continuing Operating Voltage | 150 V AC |
| Max. Surge Current Per Mode | 50kA |
| Max. Surge Current Per Phase | 100kA |
| Modes of Protection | L-G, L-L, L-N, N-G |
| Modular / Nonmodular | Nonmodular |
| Noise Attenuation | -54dB |
| Nominal Discharge Current | 20 kA |
| Number of Poles | 2 |
| Phase | Three |
| Standards | CSA C22.2 No 8:1986, Type 2, UL 1283:ed. 5, UL 1449:ed. 4 |
| Voltage | 120/208V AC Wye |
| Voltage Protection Rating | 1200V (L-G), 1500V (L-L), 700V (N-G), 900V (L-N) |
| Width | 8.62 in |
| Wire Gauge | 10 AWG |
