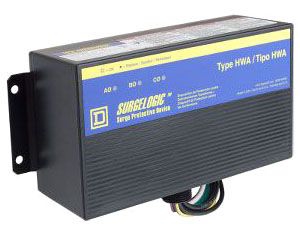

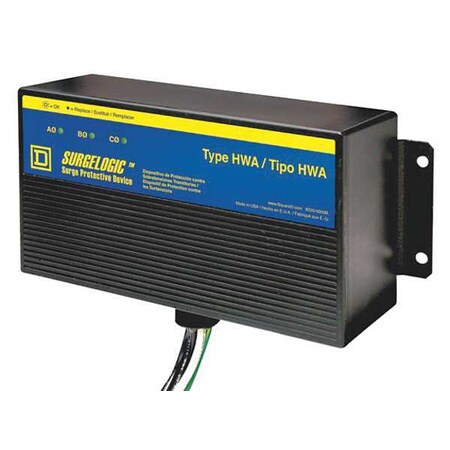

Square D TVS2HWA80X Surge Protection Device 208Y/120 volt 3 Phase 80KV

Square D TVS2HWA80X Surge Protection Device 208Y/120 volt 3 Phase 80KVzoom

Attributes

Key Value
ApplicationSUITABLE FOR USE IN SER.
ApprovalsCSA, UL
BrandSquare D by Schneider E.
Catalog NumberTVS2HWA80X
ConditionNew
Country of OriginUnited States
Depth3.11 in
EnclosureNEMA 4X
Enclosure MaterialPlastic
Enclosure NEMA Rating4X
Enclosure RatingNEMA 4X
Family SeriesSquare D Surge Protecti.
Filtering / NonfilteringFiltering
Gross Weight0 lbs
ItemSurge Protection Device
Item NumberTVS2HWA80X
Item TypeSurge protection device.
Length9.4 in
Length (Straight Wirewa.9.4 in
Line Voltage120 VAC, 208 VAC
Made in USAYes
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberTVS2HWA80X
Max. Continuing Operati.150 V AC
Max. Surge Current Per .40kA
Max. Surge Current Per .80kA
Modes of ProtectionL-G, L-L, L-N, N-G
Modular / NonmodularNonmodular
MountingNipple
Mounting StyleChase Nipple/Wire Lead
Mounting TypePanel Mount
Net Weight0 lbs
Noise Attenuation-54dB
Nominal Discharge Curre.20 kA
Number of Poles2
Number of Wires4 Wires + Ground
Operating Voltage120 V
Panelboard TypeReview
Phase3, Three
Product SeriesSurgelogic
SCCR200 kA
SeriesTVS HWA Series
Short Circuit Current R.200kA
Short Circuit Rating200 kA
Size33.6
Special FeaturesAUDIBLE ALARM, Audible .
StandardLISTED TO UL 1449 SECON.
StandardsCSA C22.2 No 8, NEC 285.
Sub BrandHWA
Surge Capacity80 kA
Surge Current80 kA
TerminationLead Wires
UL Type1283, 1449
UPC785901293668
UPC Code785901293668
Voltage120/208V AC Wye
Voltage Protection Rati.1200V (L-G), 1500V (L-L.
Voltage Rating208Y/120 V AC
Warranty DescriptionContractual Warranty:10.
Weight2.000000
Width4.8 in
Wire Gauge10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comTVS2HWA80X975.01In Stock10SQUARE D975.0 @ 1
thumbzoomZoroG6089115997.991In StockSquare D5.06997.99 @ 1
thumbzoomsustainablesupply.comC26822891082.281In StockSquare D5.061082.28 @ 1
thumbzoomindustrialrefrigerationparts.comTVS2HWA80X1124.411In StockSquare D2.01124.41 @ 1
thumbzoomGalcoTVS2HWA80X-SQD1220.931In StockSquare D1220.93 @ 1
us.rs-online.com702762521631.411In StockSquare D1631.41 @ 1
thumbzoomcrescentelectric.com849622614.71In StockSquare D by Schneider Electric2614.7 @ 1
