| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 61800-5-1 |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Ambient Air Temperature For Operation | -10-55 ?C |
| Ambient Air Temperature For Storage | -20-85 ?C |
| Cable Cross Section | 0.2-1.5 mm? - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm? - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm? - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm? - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm? - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm? - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm? - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm? - AWG 24...AWG 14 solid without cable end |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409010EN |
| Connections - Terminals | 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block |
| Depth | 22.5 mm |
| Device Short Name | XPSMCM |
| Discrete Input Type | isolated |
| Discrete Input Voltage, Discrete Output Voltage | 24 V DC |
| Discrete Output Current | 400 mA || 100 mA |
| Discrete Output Type | PNP |
| Electrical Connection | screw terminal |
| Electromagnetic Compatibility | electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3 |
| Environmental Disclosure | ENVPEP1409010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Function Of Module | monitoring safety detection discrete input || monitoring safety dialogue discrete input || monitoring safety actuators discrete output |
| Height | 99 mm |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
| Integrated Connection Type | backplane expansion bus |
| Ip Degree Of Protection | IP20 enclosure) |
| Load Type | resistive load |
| Local Signalling | 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status || 2 LEDs green/red OUT output status || 2 LEDs yellow RST restart signal || 2 LEDs yellow STATUS output status |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Net Weight | 0.25 kg |
| Number Of Inputs | 8 digital || 2 digital external device monitoring |
| Number Of Outputs | 4 test line control || 2 safety outputs OSSD contactor/drive connection || 2 configurable diagnostic connection |
| Number Of Terminal Blocks | 6 |
| Output Load | 60 Ohm |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Power Consumption In W, Power Dissipation In W | 3 W |
| Product Certifications | cULus || T?V || RCM |

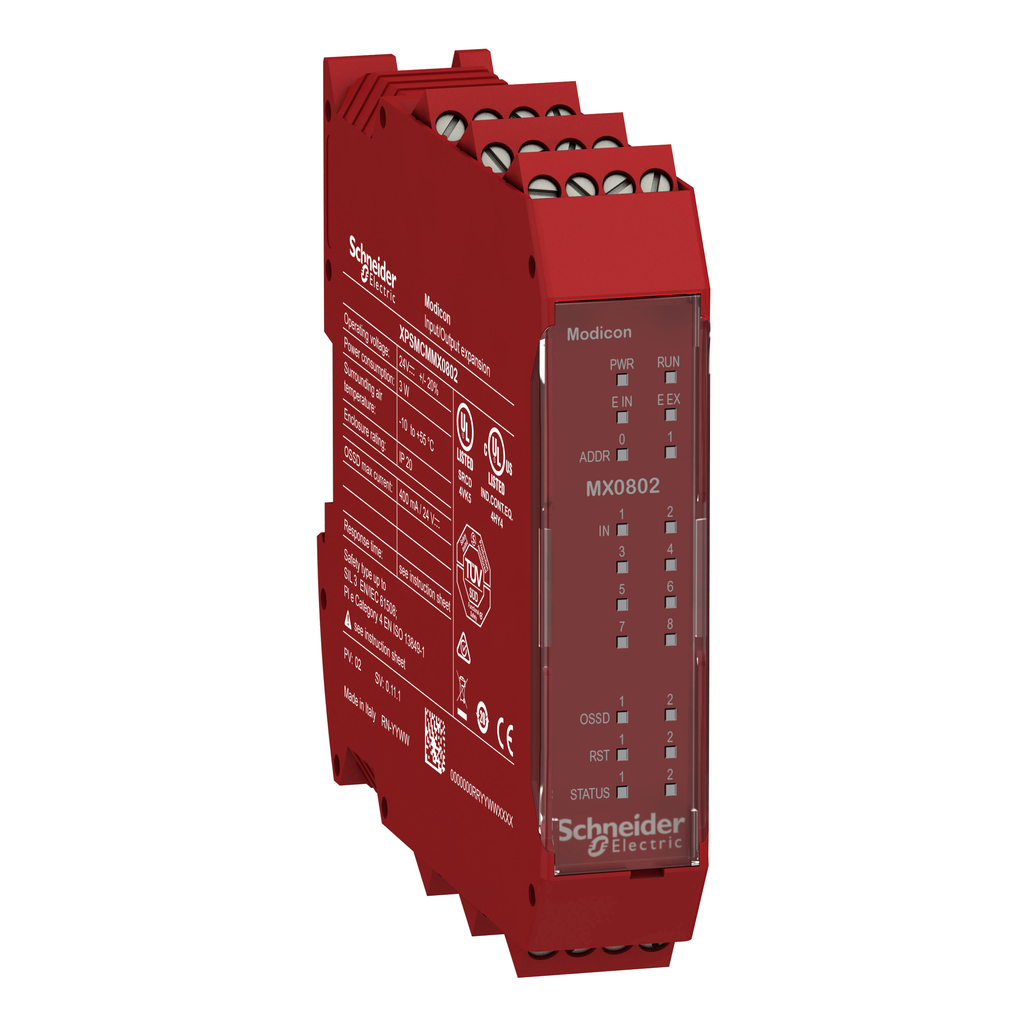

| Product Or Component Type | safe mixed I/O expansion module |
| Quality Labels | CE |
| Range Of Product | Preventa Safety automation |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 10-95 % |
| Safety Level | can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061 |
| Service Life | 20 year(s) |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Standards | EN/IEC 61800-5-1 || EN/IEC 61508 || EN/ISO 13849-1 || IEC 62061 |
| Sustainable Offer Status | Green Premium product |
| Vibration Resistance | +/-0.35 mm 10-55 Hz)EN/IEC 61496-1 |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 114.5 mm |
