Description:

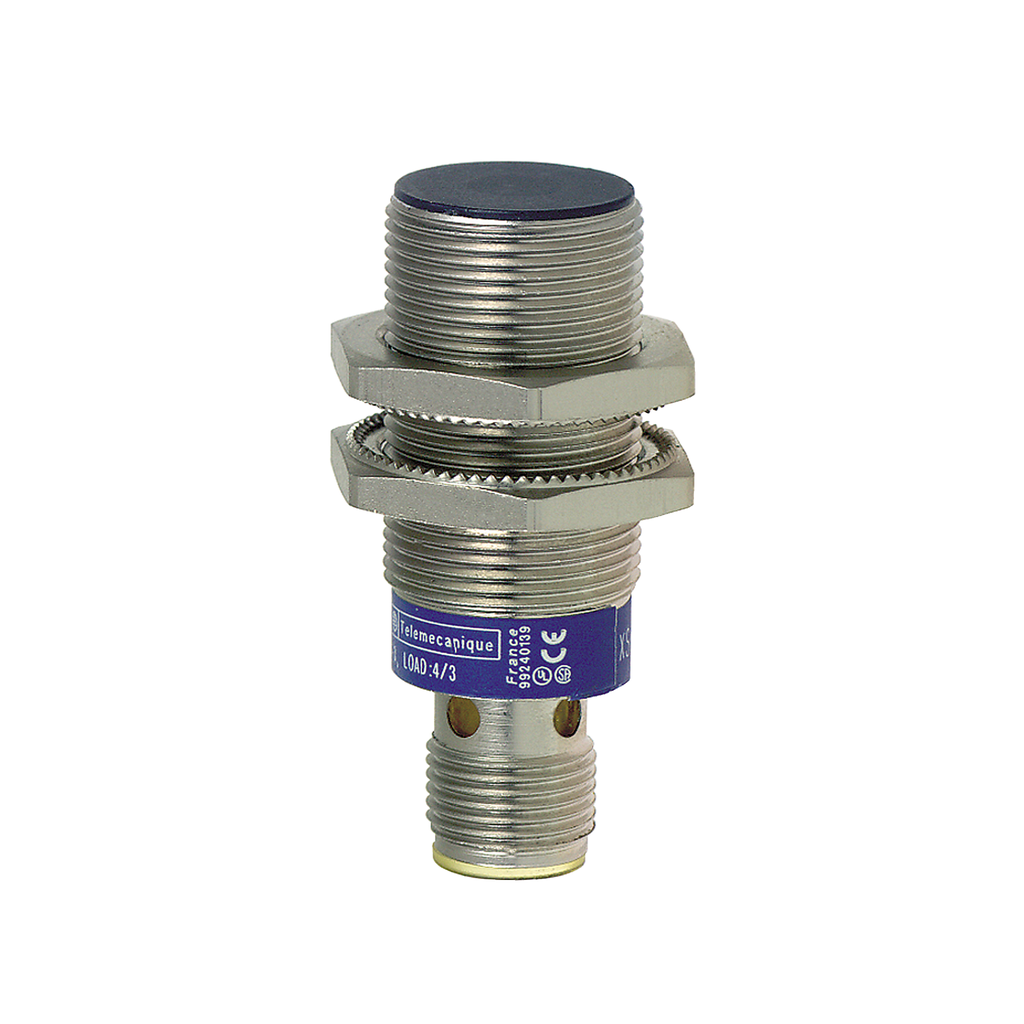

inductive sensor XS1 M18, L51mm, brass, Sn5mm, 12..24VDC, M12
Attributes
| Key ^ | Value |
|---|---|
| [Sn] Nominal Sensing Distance | 5 mm |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Body Type | fixed |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI1110045 |
| Current Consumption | 0...10 mA no-load |
| Detection Face | frontal |
| Detector Flush Mounting Acceptance | flush mountable |
| Device Application | mobile equipment |
| Differential Travel | 1...15% of Sr |
| Discrete Output Function | 1 NO + 1 NC |
| Discrete Output Type | PNP |
| Electrical Connection | male connector M12, 4 pins |
| Enclosure Material | Nickel Plated Brass |
| Environmental Disclosure | ENVPEP111006EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Front Material | PPS |
| Ip Degree Of Protection | IP69K conforming to DIN 40050 || IP65 conforming to IEC 60529 || IP67 |
| Length, Size | 51 mm |
| Marking | CE |
| Material | metal |
| Maximum Delay First Up | 5 ms |
| Maximum Delay Recovery | 0.35 ms |
| Maximum Delay Response | 0.15 ms |
| Mercury Free, Rohs Exemption Information | Yes |
| Net Weight | 0.04 kg |
| Operating Zone | 0-4 mm |
| Output Circuit Type | DC |
| Product Certifications | E2 || CSA || T?V || UL |
| Range Of Product | Telemecanique Inductive proximity sensors XS |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Safety Level | SIL 2 EN/IEC 61508 || PL = d EN/ISO 13849-1 || SILCL 2 IEC 62061 |
| Safety Reliability Data | MTTFd = 1810 years || PFHd = 62.9E-9 1/h || SFF = 92 % || DC = 74 % with appropriate safety controller |
| Sensor Design | cylindrical M18 |
| Sensor Name | XS1 |
| Sensor Type | inductive proximity sensor |
| Series Name | general purpose |
| Service Life | 20 year(s) |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Standards | IEC 62061 || EN/ISO 13849-1 |
| Status Led | output state 1 LED yellow) |
| Supply Voltage Limits | 9-36 V DC |
| Sustainable Offer Status | Green Premium product |
| Thread Type | M18 x 1 |
| Threaded Length | 28 mm |
| Type Of Output Signal | discrete |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Wire Insulation Material | PVC |
| Wiring Technique | 4-wire |
