CAI - SQUARE D 8501CO6V29

CAI - SQUARE D 8501CO6V29

mpn:
8501CO6V29
brand:
Square D by Schneider Electric
manufacturer:
Square D by Schneider Electric
MPN:
8501CO6V29
Weight:
0.0375
Weight:
0.15 LB
Preferred Price:
42.78
Price:
42.78
Min Simple Price:
23.38
Absolute Min Price:
33.19
Min Price:
33.19
Dimensions:
[4.0, 4.0, 3.0]
qty:
21
simpleSku:
NDQ4OA:::8501CO6V29
sku:
NDQ4OA::Q2:8501CO6V29@y0
condition:
11
seller:
superbreakers.com
amzMan:
cai - square d
HazMat:
False
DropShip:
False

Attributes

Key ^Value
[Uc] Control Circuit Voltage, Coil Voltage480 V AC 50/60 Hz
AC Contact Rating - Relay40A @ 300V, 40 A @ 300V
Ambient Air Temperature For Operation-22-122 ?F
Amperage Rating30
ApplicationSUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS.
Application, Device Applicationsuited for controlling small single phase motors and other light loads
Approvals, StandardsCE, CSA, UL
Awg Gauge, AWG RangeAWG 10 copper
Body Depth - Relay2.49 in
Body Height - Relay, Overall Height - Relay1.98 in
Body Width - Relay, Width2.5 in
BrandSquare D by Schneider Electric
Brand, ManufacturerSquare D
Brand, ManufacturerSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingNickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog Class, Series8501
Catalog Number, Item Number, Mpn8501CO6V29
China Rohs RegulationX
Coil Rating10.0VA, 2.0W
Coil Voltage480 VAC
Coil Volts480V AC
ColorBlack
Connection, Electrical Connection, Electrical Connection - Power RelayScrew Clamp
Connections - Terminals, Terminationscrew clamp terminal
Contact Amp Rating (Resistive)40A @ 277VAC/28VDC
Contact Configuration, Contact Operation, Contacts Type And Composition1 NO
Contact Current Rating, Current Rating10 A
Contact Form, Contact Form - RelaySPST-NO
Contact Form, Switch FunctionSPST
Contact MaterialSilver Tin Oxide
Contact RatingAC RATED
Contact Voltage Rating, Published Coil Voltage300 VAC
Contacts1NO
Control Voltage480
Country of OriginCN - China
Country of Origin, Country of Origin (subject to change)China
Current Stock22
DC Contact Rating - Relay40A @ 28V, 40 A @ 28V
Depth2.25 in., 2.25 in
Device Short Name, Sub Brandtype C
Dimensions1.98"H, 2.50"W, 2.49"D
Diode, International Shipping, Made in USA, Push-to-Test, Safety Guided, Status IndicatorNo
ECCNEAR99
EnclosurePlastic
Environmental DisclosureENVPEP1705008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Family SeriesSquare D Relays
FunctionGeneral Purpose
Gross Weight, Net Weight0 lbs
Gtin, Upc, UPC, UPC Code785901059547
Height2.43 in., 2.43 in
Hold-In Power Consumption In Va10-10 VA
HP @ 120V, HP @ 240V2
HP @ 120V, HP @ 240V, HP Rating, Rated Power In Hp2 hp
Hz50/60
Hz - Electrical50/60 Hz
Item Type, Product Or Component Typepower relay
Item, Item - RelayOpen Power Relay
Lead TimeExpected to ship in 1-2 business days
Line Rated Current, Max Current30 A
Manufacturer Part Number436059
Maximum Switching Voltage600 V AC
Mercury Free, Reach Free Of Svhc, RoHS, Rohs Exemption Information, Toxic Heavy Metal FreeYes
MountingPanel
Mounting - RelaySurface
Mounting Supportpanel mounting
Mounting, Mounting TypePanel Mount
Nominal Coil Voltage277 VAC
Number of Pins, Number of Pins - Relay, Pins4
Number of Poles, Phase1
Operating Temperature-22...122 Degrees F
Phase1 phase
Power Consumption - Relay10.0 VA
Primary TypePower Relays
Product CertificationsUL listed file E78351 CCN NLDX || CSA || CE
Range Of ProductPower Relay 8501C
Reach RegulationFree of Substances of Very High Concern above the threshold
Relay TypeElectromechanical
Series8501C Series
SKUZO-G6383386
StandardUL LISTED FILE E78351 CCN NLDX-CSA-CE
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
TerminationScrew Terminals, Screw
Tightening Torque, Torque11-15 lbf.in
UNSPSC39122324
Voltage Rating600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Width2.5 mm

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomsuperbreakers.com8501CO6V2923.3823.381In StockSquare D23.38 @ Qty: 1+
Graybar8903474426.308826.30881In StockSquare D (Schneider Electric)26.3088 @ Qty: 1+
thumbzoomGalco8501CO6V29-SQD28.3728.371In StockSquare D28.37 @ Qty: 1+
thumbzoomblackhawksupply.com8501CO6V2935.6535.651In StockSquare D35.65 @ Qty: 1+
thumbzoomZoroG638338637.2137.21126Square D0.637.21 @ Qty: 1+
standardelectricsupply.com220027043.8243.821In StockSquare D43.82 @ Qty: 1+
Newark16B639748.1448.141In StockSQUARE D BY SCHNEIDER ELECTRIC48.14 @ Qty: 1+
thumbzoomsimsupply.comZO-G638338648.8848.88122Schneider Electric48.88 @ Qty: 1+
thumbzoommayerelectric.comSQD8501CO6V2951.1851.181In StockSQUARE D51.18 @ Qty: 1+
us.rs-online.com7131536253.2453.241In StockSquare D53.24 @ Qty: 1+
thumbzoommidwestapplianceparts.com8501CO6V29-SQ-P54.7254.721In StockSquared54.72 @ Qty: 1+
thumbzoomsustainablesupply.comC117815863.3563.351In StockSquare D0.663.35 @ Qty: 1+
simplybreakers.com8501CO6V2970.9970.991In StockSchneider Electric70.99 @ Qty: 1+
thumbzoomcrescentelectric.com6406873.5773.571In StockSquare D by Schneider Electric73.57 @ Qty: 1+
grainger.caSQD8501CO6V2981.6967233681.696723361In StockSQUARE D0.681.69672336 @ Qty: 1+
thumbzoomNational Supply Network6953521986.0386.031In StockSquare D86.03 @ Qty: 1+
thumbzoomRaptor SuppliesAF9FRY122.7632445122.76324451In StockSQUARE D122.7632445 @ Qty: 1+
B00M86ORQ2
CAI - SQUARE D 8501CO6V29

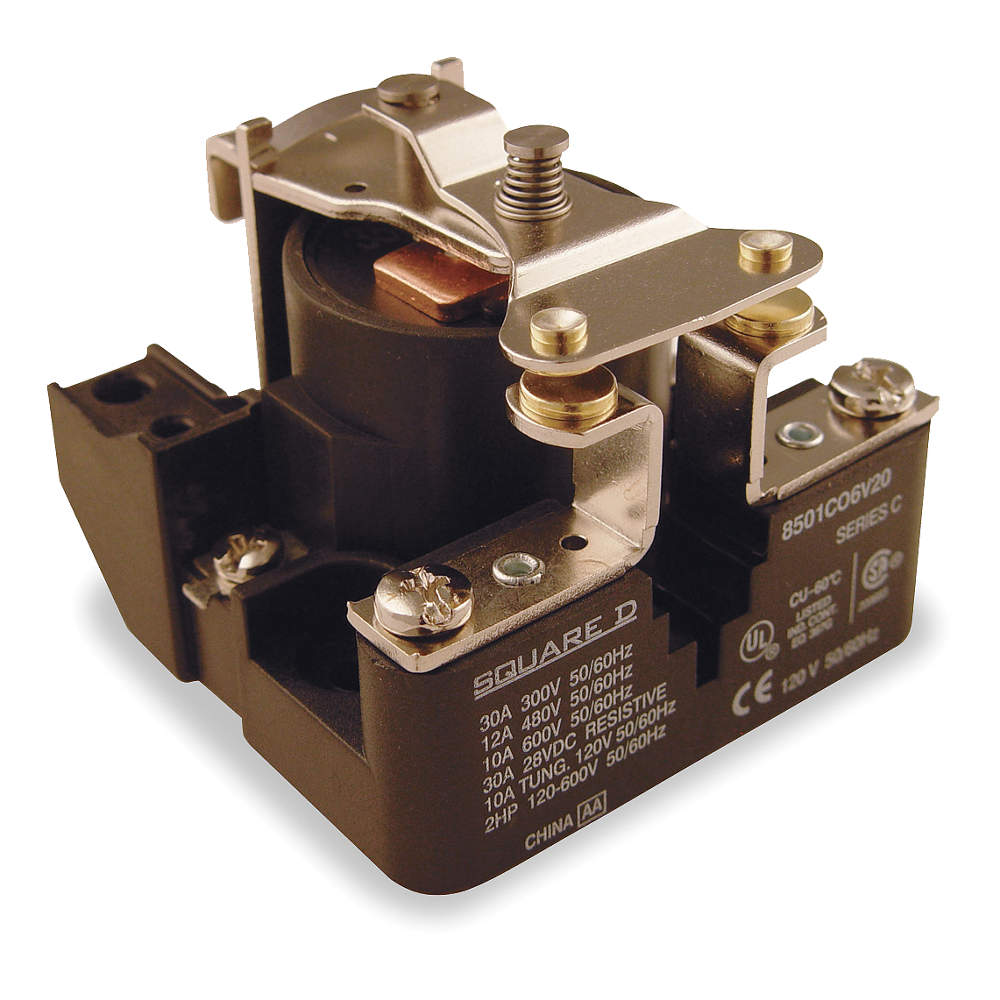

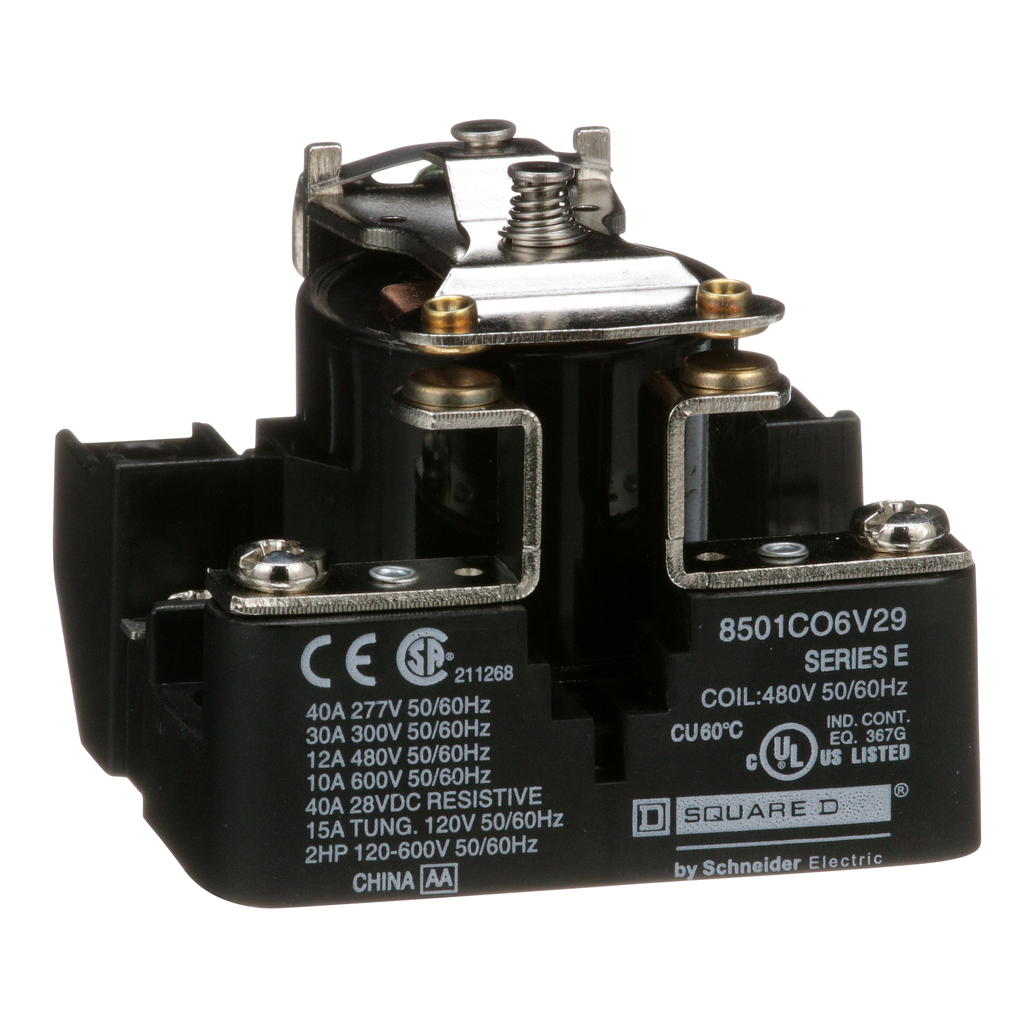

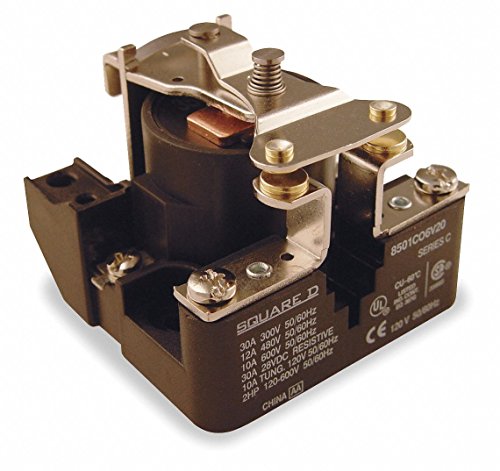

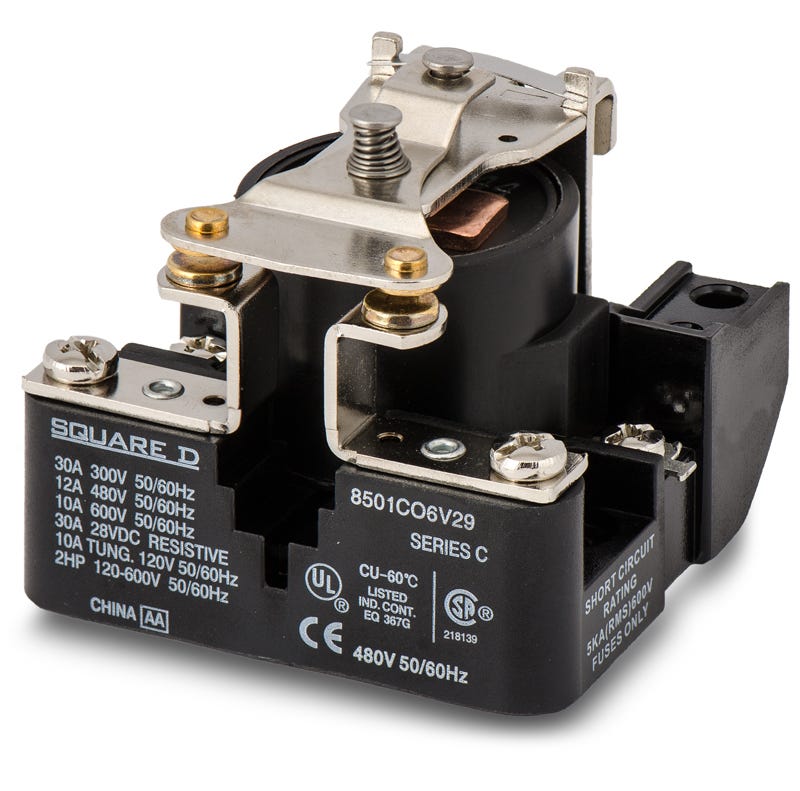

Open Power Relay, 4 Pin, 480VAC, SPST-NO
