CAI - SCHNEIDER ELECTRIC 9001SKR9P1GH13

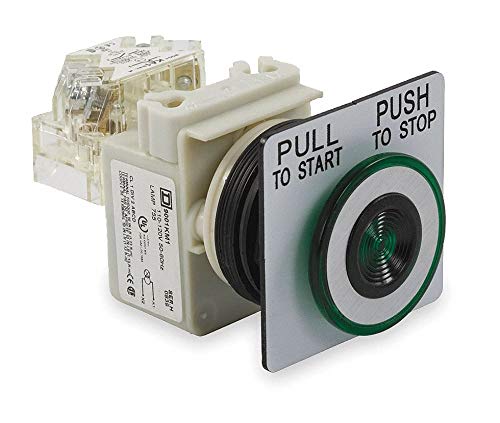

Schneider Electric 30mm Incandescent 1NO/1NC Illuminated Push Button with Maintained Pull/Maintained Push Action, Gre

Schneider Electric 30mm Incandescent 1NO/1NC Illuminated Push Button with Maintained Pull/Maintained Push Action, Grezoom

Attributes

Key Value
ActionPUSH-PULL
ActuatorGreen mushroom ? 41 mm;.
Amperage Rating10
BrandSquare D by Schneider E.
Catalog Number9001SKR9P1GH13
ConnectionScrew clamp terminals, .
Contact Configuration1 C/O
Contact RatingAC15 - DC13
Country of OriginMexico
EnclosureNEMA 1-NEMA 12-NEMA 13-.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
IndicatorBA 9S
Insulation250 V 3)IEC 60947-1
Item TypeIlluminated push-button
Made in USANo
ManufacturerSchneider Electric
MaterialPlastic
MountingPanel Mount
Operating Temperature-25-70 A Degrees C
Size1.18
Special FeaturesSCREW-ON PLASTIC MUSHRO.
Standard50 GN IEC 60068-2-27,7 .
Sub Brand9001SK
UPC785901043072
Voltage Rating110...120 V AC 50...60 .
Warranty DescriptionContractual Warranty:18.
