Square D 9050JCK13V20

Square D 9050JCK13V20

mpn:
9050JCK13V20
brand:
Square D by Schneider Electric
manufacturer:
Square D by Schneider Electric
MPN:
9050JCK13V20
Weight:
0.0625
Weight:
1.0 LB
Preferred Price:
54.79
Price:
54.79
Min Simple Price:
29.94
Absolute Min Price:
42.51
Min Price:
42.51
Dimensions:
[5.0, 3.0, 2.0]
qty:
21
simpleSku:
NDQ4OA:::9050JCK13V20
sku:
NDQ4OA::NU:9050JCK13V20@y0
condition:
11
seller:
NRI Industrial
amzMan:
square d
HazMat:
False
DropShip:
False

Attributes

Key ^Value
[Uc] Control Circuit Voltage, Coil Voltage120 V AC || 110 V DC
AC Contact Rating - Relay10A @ 120/240V
Adjustment Method - TimerPotentiometer
Ambient Air Temperature For Operation-18-150 ?F
ApprovalsCE, UL
ASINB000E279NU
Base Type, Base Type - Plug In RelayOctal
Batteries Required?, International ShippingNo
Body Depth - Relay1.71 in
Body Height - Relay3.39 in
Body Width - Relay2.4 in
BrandSquare D by Schneider Electric
Brand, ManufacturerSchneider Electric
Catalog Number, Item model number, Item Number, Mpn, Part Number9050JCK13V20
China Rohs RegulationX
Circularity ProfileENVEOLI1406037EN
Coil Rating2VA
Coil Voltage110 VDC, 120 VAC
Coil Volts120V AC
ColorWhite
Connection, Shape Of Pintubular
Contact Configuration, Contact Operation, Contacts Type And Composition2 NO + 2 NC
Contact Form, Contact Form - Relay, Contacts, Switch FunctionDPDT
Contact MaterialSilver Alloy
Contact Rating10 A,240 V AC
Contact Rating (A), Current Rating, Line Rated Current10 A
Contacts Material, Materialsilver nickel
Control Voltage120
Country of OriginUnited States, US - United States
Current Stock47
DC Contact Rating - Relay10A @ 30V
Depth104 mm
ECCNEAR99
Electrical Connection, Mounting, Mounting Support, Mounting TypeSocket
Environmental DisclosureENVPEP1406037EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Family SeriesSquare D Relays
Function, Function - Timing Relay, Mode of OperationOn Delay
Function, Time Delay TypeOn-Delay
Gross Weight, Net Weight0 lbs
Height61 mm
Hold-In Power Consumption In Va2-2 VA
Hz50/60
Hz - Electrical50 Hz, 60 Hz
ItemSingle Function Time Delay Relay
Item - RelaySingle Function Timing Relay
Item Package Quantity, Timing Range1
Item TypeTimer;DPDT
Lead TimeExpected to ship in 1-2 business days
Made in USA, Mercury Free, Reach Free Of Svhc, RoHS, Rohs Exemption Information, Toxic Heavy Metal FreeYes
ManufacturerSquare D
Manufacturer Part Number246559
Max Time60 s
Max. Time Setting - Timer1 min
Maximum Operating Temperature65 C
Maximum Switching Voltage240 V AC
Min. Time Setting0.60 sec.
Min. Time Setting - Timer0.6 sec
Minimum Operating Temperature-28 C
Mounting - RelayPlug In
Mounting TypeSocketable
National Stock Number5945-00-361-1842
No. of Pins, Number of Pins, Number of Pins - Relay, Pin Number8
Nominal Coil Voltage, Voltage (AC)120 VAC
Operating Temperature-18-150 A Degrees F
Overall Height - Relay4.1 in
Power Consumption - Relay2.0 VA
Primary TypeTime Delay Relays
Product CertificationsCE || UL Listed || UL Recognized
Product Compatibility, Use With8501NR52 || 8501NR51
Product Or Component Typetimer
Range Of Product9050JCK
Reach RegulationFree of Substances of Very High Concern above the threshold
SeriesJCK Series
Size104 MM,43 MM,61 MM
SKUZO-G1851963
Socket1EGP3, 1EGP5, 5X852
Special FeaturesON DELAY 0.6 - 60 SECONDS
StandardROHS-CE-UL LISTED-UL RECOGNIZED
StandardsCE, CSA, UL
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Termination8 Pin, 8-Pin Octal
Time Delay Range, Timing Range0.6...60 s
Time Range (Seconds)0-1, 0-2, 0-3, 0-5, 0-10, 0-15, 0-30, 0-60
Timing Range0.6 to 60 Sec.
UNSPSC39122329
UPC, UPC Code785901032564
Voltage (DC)110 VDC
Voltage Rating240 ; 30 V
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Width43 in., 43 mm

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomNRI IndustrialD54815229.9429.941In StockSQUARE D29.94 @ Qty: 1+
thumbzoomblackhawksupply.com9050JCK13V2080.5480.541In StockSquare D80.54 @ Qty: 1+
standardelectricsupply.com17822782.0182.011In StockSquare D82.01 @ Qty: 1+
thumbzoomGalco9050JCK13V20-SQD87.2387.231In StockSquare D87.23 @ Qty: 1+
thumbzoomZoroG185196388.7988.79179Schneider Electric0.2688.79 @ Qty: 1+
thumbzoomgordonelectricsupply.com9050JCK13V2094.0994.091In Stock10SQUARE D94.09 @ Qty: 1+
thumbzoomsimsupply.comZO-G185196396.5596.55147Schneider Electric96.55 @ Qty: 1+
thumbzoomsustainablesupply.comC120367296.9596.951In StockSquare D0.2696.95 @ Qty: 1+
thumbzoommidwestapplianceparts.com9050JCK13V20-SQ-P99.1899.181In StockSquared99.18 @ Qty: 1+
AmazonTPB000E279NU100.67100.671In Stock5Square D100.67 @ Qty: 1+
thumbzoomAmazonB000E279NU100.67100.671In StockSquare D1.0100.67 @ Qty: 1+
grainger.caSQD9050JCK13V20101.76628101.766281In StockSQUARE D0.26101.76628 @ Qty: 1+
us.rs-online.com71315661101.93101.93111Square D101.93 @ Qty: 1+
Graybar88249811102.6032102.60321In StockSquare D (Schneider Electric)102.6032 @ Qty: 1+
thumbzoomindustrialstores.com9050JCK13V20106.04106.041In Stock10Square D106.04 @ Qty: 1+
thumbzoommayerelectric.comSQD9050JCK13V20106.58106.581In StockSQUARE D106.58 @ Qty: 1+
thumbzoommostelectric.com9050JCK13V20107.08107.081In StockSQUARE D/TELEMECANIQUE107.08 @ Qty: 1+
thumbzoomcrescentelectric.com43719107.24107.24149Square D by Schneider Electric107.24 @ Qty: 1+
ptacsolutions.com9050JCK13V20108.33108.331In StockSchneider Electric (Square D)108.33 @ Qty: 1+
thumbzoomNewark17B2507110.21110.211In StockSQUARE D BY SCHNEIDER ELECTRIC110.21 @ Qty: 1+
thumbzoomRaptor SuppliesAG7CJR120.785535120.7855351In StockSQUARE D120.785535 @ Qty: 1+
thumbzoomNational Supply Network68618719142.18142.181In StockSquare D142.18 @ Qty: 1+
thumbzoombscsource.com9050JCK13V20173.59173.591In StockSquare D173.59 @ Qty: 1+
B000E279NU
23.05 USD

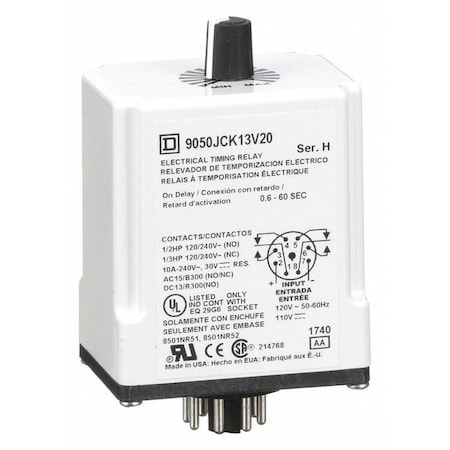

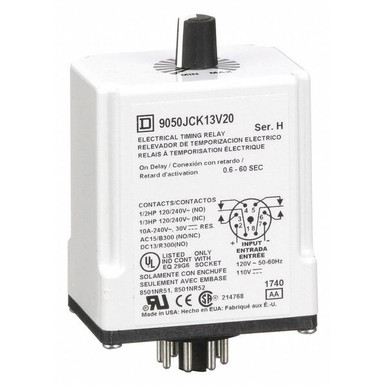

Square D 9050JCK13V20

Time Delay Rlay, 120Vac, 10A, Dpdt, 0.6 Sec.

Time Delay Rlay, 120Vac, 10A, Dpdt, 0.6 Sec.zoom
