Square D by Schneider Electric 9070TF250D20

B0078S8SII

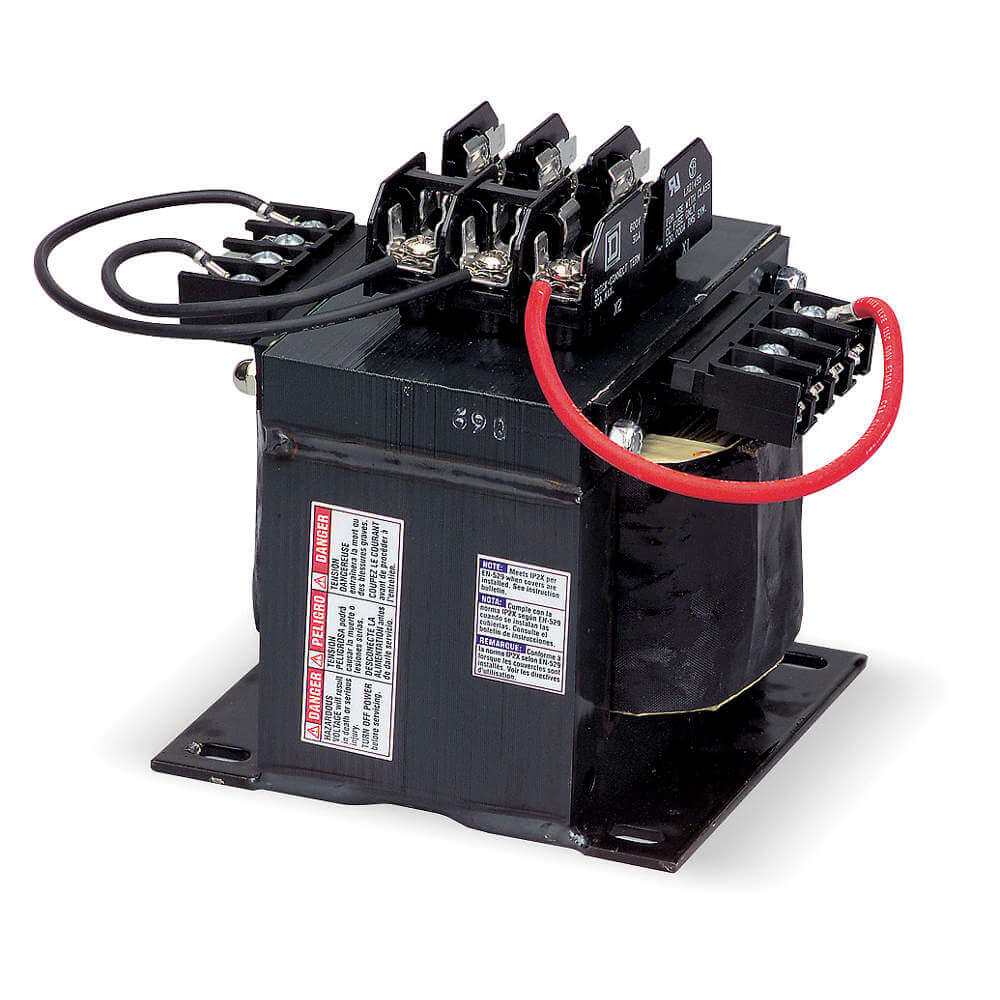

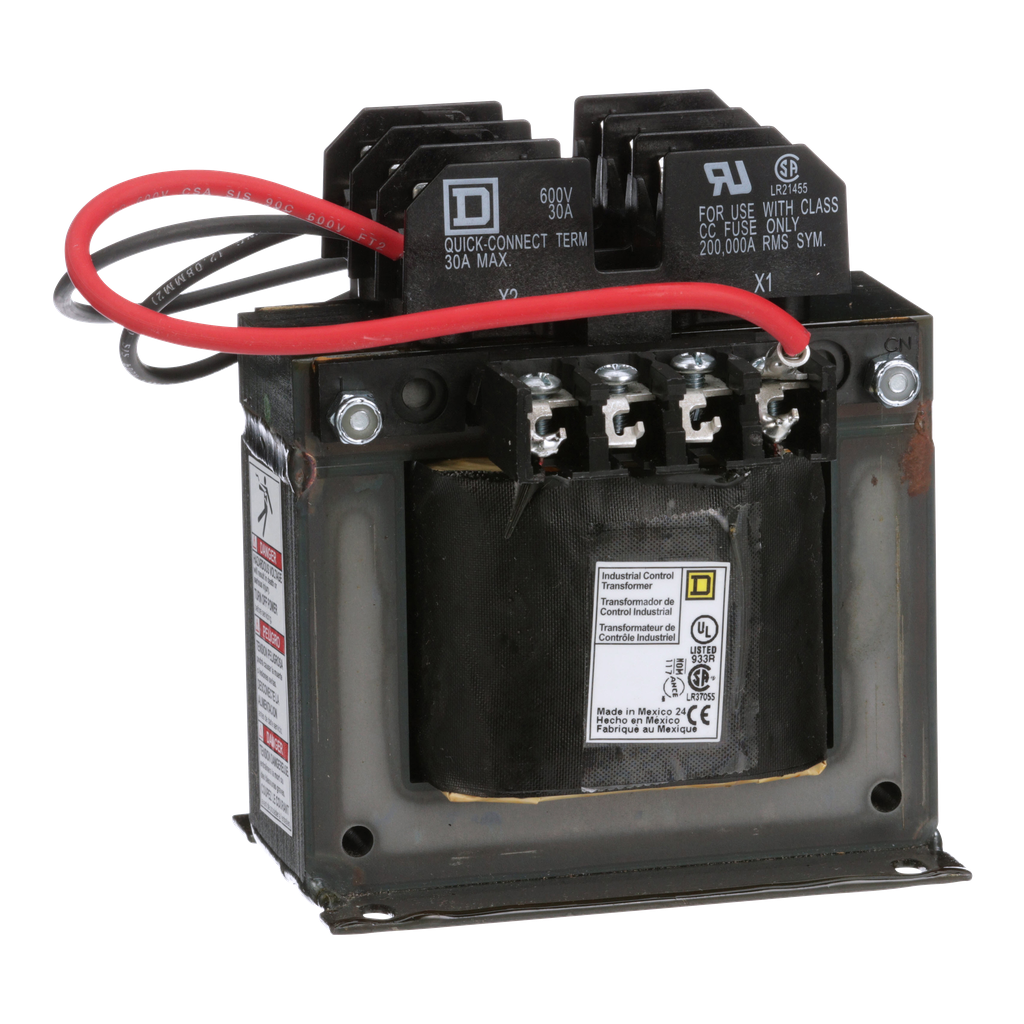

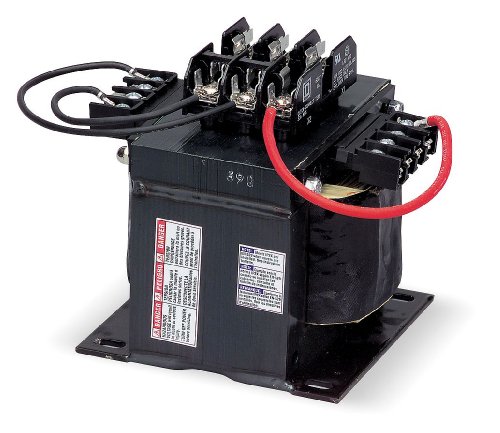

Control Transformer, 250Va, 5.10 In. H

Control Transformer, 250Va, 5.10 In. Hzoom

Attributes

Key Value
ApplicationFSC2
ApprovalsCSA, UL
BrandSquare D, Square D by S.
California Proposition .Phenyl glycidyl ether, .
Catalog Number9070TF250D20
China Rohs RegulationProduct out of China Ro.
Connection Typescrew clamp terminals
Country of OriginUS - United States, Mex.
Current Stock3
Depth4.74 in., 4.74 in, 4.5 .
ECCNEAR99
Electrical Connectionscrew clamp terminals
EnclosedNo
Enclosurenot rated (open device)
Enclosure FinishEpoxy Resin Varnish
Enclosure Style - Trans.Open
Environmental DisclosureENVPEP1308008EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Transformers
Fuse Type0.41 x 1.50 in CC top
FusedYes
Gross Weight0 lbs
Height5.13 in., 5.1 in, 5.13 .
Hz50/60
Hz - Electrical50 Hz, 60 Hz
IncludesTop Mounted Fuse Block
Input Voltage208/240/480VAC
Input Voltage - Transfo.208V AC, 240V AC, 480V .
Insulation Class80
Insulation Temperature130 ?C
International ShippingNo
ItemControl Transformer
Item - TransformerControl Transformer
Item Number9070TF250D20
Item TypeIndustrial Control Tran.
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number9070TF250D20
Manufacturers Warranty .1 yr
Materialcopper winding
Mercury FreeYes
MountingPanel
Mounting - TransformerFoot
Mounting - TransformerFoot
Mpn9070TF250D20
Nema Degree Of Protecti.not rated (open device)
Net Weight0 lbs
Output Voltage - Transf.120V AC
Phase1, 1 phase
Phase - Electrical1
Primary Voltage208 V, 230 V, 460 V, 20.
Product CertificationsUL listed file E61239 |.
Product CompatibilityFSC2
Product Or Component Ty.Industrial Control Tran.
Protective DevicePrimary Fuse, Secondary.
Pvc FreeYes
Range Of ProductTF
Rated Power In Va250 VA UL || 250 VA CSA.
Reach RegulationReference contains Subs.
RoHSYes
Rohs Exemption Informat.Yes
Secondary Voltage115 V, 115
Series9070TF
SKUZO-G2392494
Special FeaturesINDUSTRIAL CONTROL TRAN.
StandardCE-UL LISTED FILE E6123.
StandardsCE Compliant, CSA Certi.
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temperature Rating80 DEGREES C
Temperature Rise80 ?C
Temperature Rise (F)176 ?F
TerminationScrew Clamp
UNSPSC39121002
UPC785901398011
Use WithFSC2
VA Rating250 VA, 250VA, 250 VA U.
VA Rating - Transformer250 VA
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.5 in., 5.09 in, 4.5 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0078S8SII463.611In Stock5Square D463.61 @ 1
thumbzoomZoroG2392494497.3113Square D9.9497.3 @ 1
us.rs-online.com72195090519.631In StockSquare D519.63 @ 1
Grainger1YUX1564.01100SQUARE D564.0 @ 1
thumbzoomblackhawksupply.com9070TF250D20576.791In StockSquare D576.79 @ 1
thumbzoomsimsupply.comZO-G2392494588.5913Square D588.59 @ 1
thumbzoomNational Supply Network69661577616.351In StockSquare D616.35 @ 1
standardelectricsupply.com2236940622.921In StockSquare D622.92 @ 1
thumbzoomGalco9070TF250D20-SQD656.361In StockSquare D656.36 @ 1
thumbzoomsustainablesupply.comC1168983657.971In StockSquare D9.9657.97 @ 1
thumbzoomNewark81C6786664.161In StockSQUARE D BY SCHNEIDER ELECTRIC664.16 @ 1
thumbzoomgordonelectricsupply.com9070TF250D20685.01In Stock10SQUARE D685.0 @ 1
thumbzoommayerelectric.comSQD9070TF250D20702.091In StockSQUARE D702.09 @ 1
thumbzoomcrescentelectric.com144864824.9136Square D by Schneider Electric824.9 @ 1
Graybar99463686846.07041In StockSquare D (Schneider Electric)846.0704 @ 1
thumbzoomRaptor SuppliesAF6QCM853.0967251In StockSQUARE D853.096725 @ 1
