9080LBA165202

B008KNPWHA

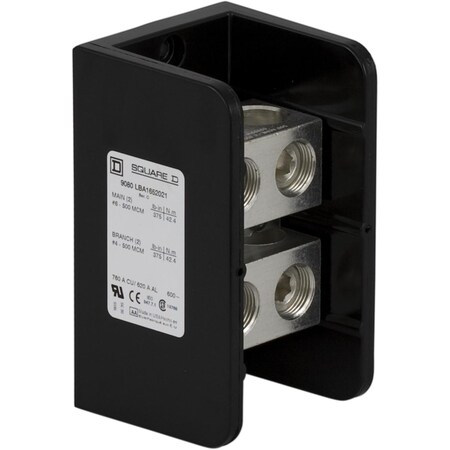

Schneider Electric / Square D 9080LBA165202 Power Distribution Block

Attributes

Key Value
Amperage Rating620A, 500/620, 500/620 A
Application9080LB,9080LB51
BrandSquare D by Schneider E.
Catalog Number9080LBA165202
CategoryUncategorized
ConnectionTin plated aluminium lu.
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Dimensions3.17 in W x 3.13 in D x.
ECCNEAR99
For Conductor MaterialAluminum, Copper
For Line Aluminum Wire .350 kcmil
For Line Aluminum Wire .6 AWG
For Line Copper Wire Si.350 kcmil
For Line Copper Wire Si.6 AWG
For Load Aluminum Wire .350 kcmil
For Load Aluminum Wire .6 AWG
For Load Copper Wire Si.350 kcmil
For Load Copper Wire Si.6 AWG
Housing ColorBlack
Housing MaterialPhenolic
ItemPower Distribution Bloc.
Item TypePower Distribution Bloc.
Line Connections/Pole2
Line Side Connection Ty.Lug
Line Side Wire Size Ran.6 AWG - 350 kcmil
Load Connections/Pole2
Load Side Connection Ty.Lug
Load Side Wire Range6 AWG - 350 kcmil
Made in USAYes
ManufacturerSchneider Electric
MaterialPhenolic, Phenolic block
Maximum Current - Alumi.500 A
Maximum Current - Coppe.620 A
Maximum Operating Tempe.302 Degrees F
Maximum Voltage600 V AC/DC
MfrSchneider Electric
MountingSurface
Number of Poles1
Overall Depth3.13 in
Overall Length5.5 in
Overall Width3.17 in
PackageBox
Packaging1 Each
Power Distribution Bloc.Open
Product StatusActive
Series*, 9080LB
Size3.13
Special FeaturesLUGS TIN PLATED ALUMINI.
StandardCE-UL RECOGNIZED E60616.
Terminal MaterialAluminum
TypeGeneral Purpose Linergy.
UNSPSC39121410
UPC785901097389
Voltage Rating600, 600 VAC/VDC, 600 V.
Warranty DescriptionContractual Warranty:18.
Wire Size6 AWG to 350 kcmil Al/C.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG085357581.191In Stock35Square D1.2381.19 @ 1
thumbzoomstandardelectricsupply.com222402289.291In StockSquare D (Schneider Electric)89.29 @ 1
Digi-Key1715494990.911In Stock12Schneider Electric90.91 @ 1
thumbzoomgordonelectricsupply.com9080LBA16520293.091In Stock10SQUARE D93.09 @ 1
Graybar90095251109.761In StockSquare D (Schneider Electric)109.76 @ 1
thumbzoomNewark17B3354114.531In StockSQUARE D BY SCHNEIDER ELECTRIC114.53 @ 1
us.rs-online.com72194897115.2511Square D115.25 @ 1
thumbzoomsustainablesupply.comC3045301117.841In StockSquare D1.23117.84 @ 1
thumbzoommostelectric.com9080LBA165202122.461In StockSQUARE D/TELEMECANIQUE122.46 @ 1
thumbzoomcrescentelectric.com143138138.511In StockSquare D by Schneider Electric138.51 @ 1
thumbzoomNational Supply Network69528297161.271In StockSquare D161.27 @ 1
