CAI - SQUARE D EDB14015

B07J9LMWW5

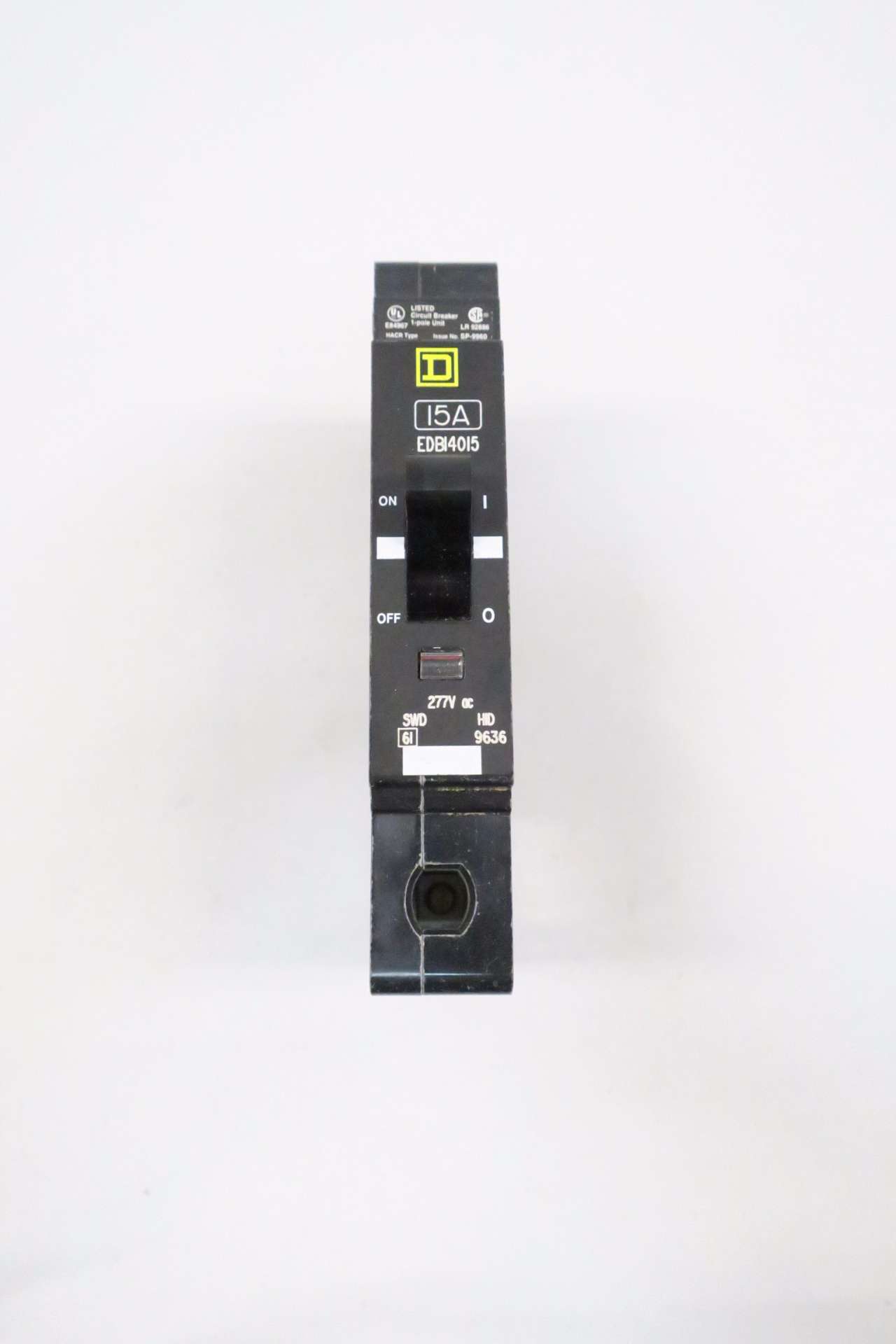

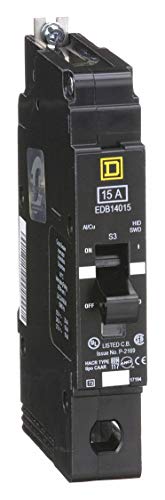

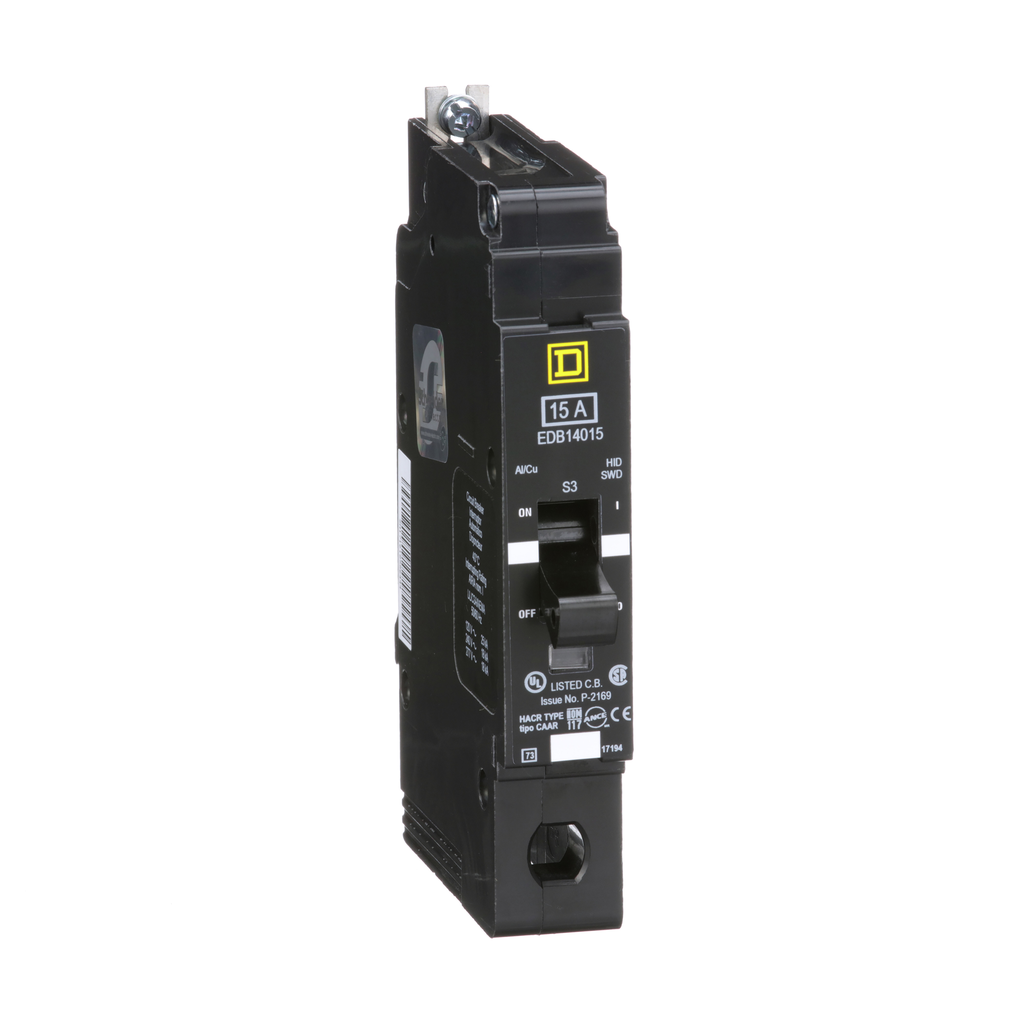

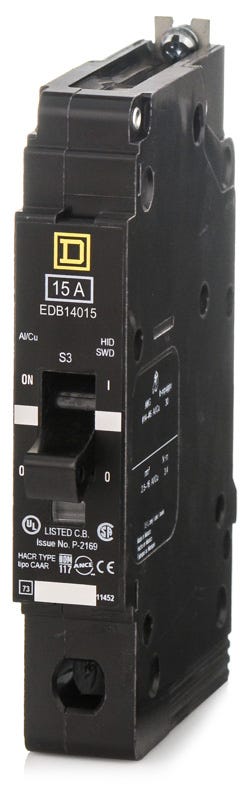

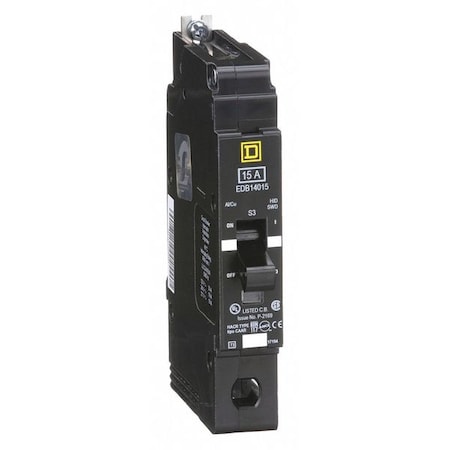

Square D Bolt On Circuit Breaker, 15 Amps, Number of Poles: 1, 277VAC AC Voltage Rating

Square D Bolt On Circuit Breaker, 15 Amps, Number of Poles: 1, 277VAC AC Voltage Ratingzoom

Attributes

Key Value
[Ue] Rated Operational .277 V AC
AC Voltage Rating277V AC
Ambient Air Temperature.40 ?C
Amperage15A
Amperage (Molded Case B.15 Amp
Amperage Rating15
Amps15 A
ApplicationSwitching Duty rated;HA.
ApprovalUL Listed, CSA Certifie.
ApprovalscULus
Auxiliary SwitchNo
Awg GaugeAWG 12...AWG 6 aluminiu.
AWG RangeAWG 12...AWG 6 aluminiu.
BrandSquare D, Square D by S.
Breaking Capacity18 kA 277 V AC || 18 kA.
Breaking Capacity CodeD
Catalog NumberEDB14015
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.Switching Duty rated ||.
Circuit Breaker Mountin.Bolt On, Bolt-On
Circuit Breaker TypeStandard
Compatible Panelboard/L.NF
ComponentMolded Case Circuit Bre.
ConnectionLugs aluminium;AWG 12...
Country of OriginMX - Mexico, Mexico
Current Rating15A, 15 A
Current Stock1
DC Voltage RatingNot Rated
Depth4.05 in., 4.05 in
Device Short NameEDB
ECCNEAR99
Electrical Connectionlugs aluminium
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Circuit Breake.
For Use WithSquare D NF Panelboards
FrameE-Frame
Frame Size125A/EDB
Frame TypeE-Frame
Frame Type (Molded Case.E Frame
Gross Weight0 lbs
Gtin785901878896
Height5.66 in, 5.66 in., 5.66
Height UOMInch
Holding Current270 A
International ShippingNo
Interrupt Rating18 kA at 277/240/120V A.
ItemMiniature Circuit Break.
Item NumberEDB14015
Item Typeminiature circuit-break.
kAIC @ 120 VAC25
kAIC @ 240 VAC18
kAIC @ 277 VAC18
Length5.66 in, 4.05
Length (Straight Wirewa.5.66 in
Length UOMInch
Line Rated Current15 A
Local Signallingtrip indicator
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number533608
Max Voltage277 VAC
Max. AIR Rating18 kA at 120/240V AC, 1.
Max. Operating Temp.104 Degrees F
Max. Wire Size6 AWG
Maximum Voltage (Molded.277 VAC
Mercury FreeYes
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
Module TypeE-Frame
MountingBolt On, Panel
Mounting ModeBolt-On
Mounting TypeBolt-On
MpnEDB14015
Net Weight2 lb(US), 2.0063 lbs
Neutral PoleNo
No. of Spaces1
Number of Poles1
Number Of Poles1
Number Of Spaces1
Number Of Spaces Requir.1
Operating Temperature40 A Degrees C
Phase1, Single
Poles1
Poles (Molded Case Brea.Single Pole
Product CertificationscULus || IEC
Product DestinationNF panelboard
Product Or Component Ty.miniature circuit-break.
Product SeriesE-Frame
ProtectionBranch Circuit
Protection Typeshort-circuit || overlo.
Range Of Product125 A Frame EDB-EGB-EJB
Rated Voltage277V AC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesEDB
Shunt TripNo
SKUZO-G2345077
Special Featurestrip indicator
StandardUL LISTED - CSA CERTIFI.
StandardscULus, IEC
Sub BrandEDB
SubCategoryElectrical
Terminal ConnectionLug
Terminal TypeBox Terminal
Terminals IncludedLine and Load
Tightening Torque3.4-3.4 N.m 2.5-16 mm? .
Torque3.4-3.4 N.m 2.5-16 mm? .
Trip Range875 AMPS
Trip Typethermal-magnetic, Therm.
Trip UnitFixed Thermal / Fixed M.
Trip Unit Rating875-875 A
Trip Unit Technologythermal-magnetic
UNSPSC39121603
Upc785901878896
UPC785901878896
Voltage277
Voltage Rating277 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.98 in, 0.98, 0.98 mm
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD54050727.651In StockSQUARE D27.65 @ 1
simplybreakers.comEDB1401569.991In StockSchneider Electric69.99 @ 1
thumbzoomsuperbreakers.comEDB1401588.21In StockSquare D88.2 @ 1
thumbzoomGalcoEDB14015-SQD104.141In StockSquare D2.0063104.14 @ 1
thumbzoomblackhawksupply.comEDB14015104.161In StockSquare D104.16 @ 1
thumbzoomRaptor SuppliesAG6QBH116.86363651In StockSQUARE D116.8636365 @ 1
standardelectricsupply.com283767123.041In StockSquare D123.04 @ 1
thumbzoomZoroG2345077124.991In StockSquare D1.05124.99 @ 1
Graybar96058946125.08161In StockSquare D (Schneider Electric)125.0816 @ 1
us.rs-online.com71536498144.1312Square D144.13 @ 1
thumbzoommayerelectric.comSQDEDB14015145.141In StockSQUARE D2.0145.14 @ 1
thumbzoomcrescentelectric.com167720156.8418Square D by Schneider Electric156.84 @ 1
rspsupply.comSCHNEIDER EDB14015163.421In StockSchneider Electric163.42 @ 1
steinerelectric.com34954165.371In StockSquare D?165.37 @ 1
thumbzoomsimsupply.comZO-G2345077166.891In StockSquare D166.89 @ 1
Newark15B7686169.641In StockSQUARE D BY SCHNEIDER ELECTRIC169.64 @ 1
thumbzoomsustainablesupply.comC1195359172.241In StockSquare D1.05172.24 @ 1
thumbzoommostelectric.comEDB14015175.68123SQUARE D/TELEMECANIQUE175.68 @ 1
thumbzoomNational Supply Network69660918218.271In StockSquare D218.27 @ 1
grainger.caSQDEDB14015222.517603481In StockSQUARE D1.05222.51760348 @ 1
