mpn:
manufacturer:
MPN:
Weight:
0.196875
Weight:
2.8 LB
Preferred Price:
220.17
Price:
220.17
Min Simple Price:
124.39
Absolute Min Price:
176.63
Min Price:
176.63
Dimensions:
[8.0, 5.0, 4.0]
qty:
21
simpleSku:
NDQ4OA:::QBL22200
sku:
NDQ4OA::SG:QBL22200@y0
condition:
11
seller:
pioneergeneralstore.com
amzMan:
square d
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 240V AC |
| Actuator | Operating handle |
| Amperage | 200 amp, 200A |
| Amperage Rating | 200 |
| Amps, Current Rating | 200 A |
| Application | Distribution;HACR rated |
| Brand | Square D, Square D by Schneider Electric |
| Catalog Number, MFR, Mpn | QBL22200 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style, Mounting | Free Standing |
| Circuit Breaker Type | Standard |
| Connection | Lugs load;lugs line |
| Country of Origin | MX - Mexico, Mexico |
| Current Rating | 200-200A |
| DC Voltage Rating | Not Rated |
| Depth | 3.93 in. |
| Depth, Length | 3.93 in |
| ECCN | EAR99 |
| Frame Size | 250A/QB |
| Frame Type | Q Frame |
| Frame, Frame Type | Q-Frame |
| Frequency Rating | 50/60 Hz |
| Gtin, UPC, Upc, UPC Code | 785901412632 |
| Height | 6.47, 6.47 in., 6.47 in, 7 |
| Height UOM, Width UOM | Inch |
| High Amp Trip Setting | 2,400 A |
| Instantaneous Trip | Fixed |
| Interrupt Rating | 10KA@240VAC, 10kA |

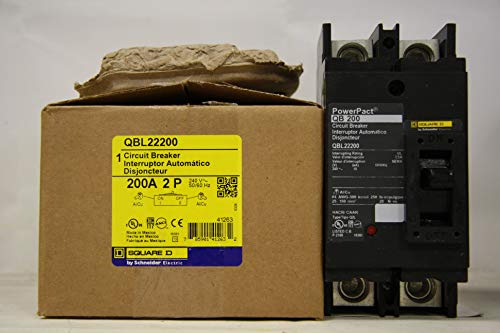

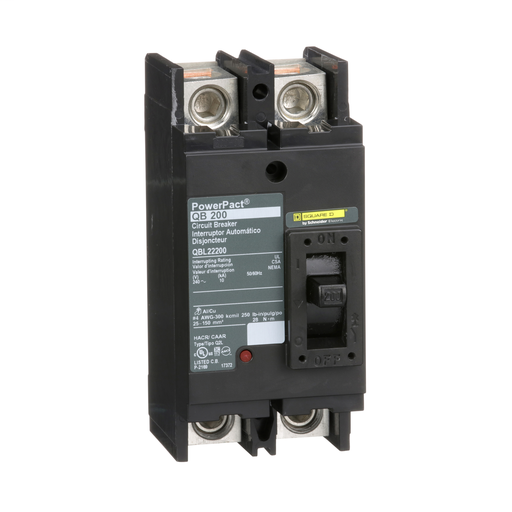

| Item | Molded Case Circuit Breaker |
| Item Type | Circuit breaker |
| Length | 11, 22 mm |
| Low Amp Trip Setting | 1,200 A |
| Made in USA | No |
| Manufacturer | Schneider Electric |
| Max. AIR Rating | 10kA at 240V AC |
| Max. Wire Size | 300 MCM |
| Min. Wire Size | 4 AWG |
| No. of Poles, Number of Poles, Poles | 2 |
| Operating Temperature | -13F AND 158F (-25 C AND +70 C) |
| Phase | 1, Single |
| Phase Connection | Not Applicable |
| Rated Voltage | 240V AC 50/60 Hz UL |
| Series | Q-Frame Series, QB, QBL |
| SKU | 12004305 |
| Special Features | UNIT MOUNT |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED, UL || CSA || NEMA || NOM-003-SCFI-2000 |
| Standards | CSA, IEC, UL Listed |
| Sub Brand | PowerPact Q |
| Terminal Connection | Line/Load Lug |
| Torque | 28-28 N.m 25-150 mm? (AWG 4...300 kcmil) |
| Trip Range | HOLD: 1200A - TRIP: 2400A |
| Trip Type | Thermal-magnetic, Thermal Magnetic |
| Type | Thermal/Magnetic |
| UNSPSC | 39121616 |
| Voltage | 240 V or 208 V |
| Voltage Rating | 240 V, 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9, 3 mm, 3.0, 4.5 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | pioneergeneralstore.com | 6191845 | 124.39 | 124.39 | 1 | In Stock | SQUARE D BY SCHNEIDER ELECTRIC | 124.39 @ Qty: 1+ | ||
 | PlumbersStock | 591600 | 146.54 | 146.54 | 1 | In Stock | Square D | 2.8 | 146.54 @ Qty: 1+ | |
| mostelectric.com | QBL22200 | 161.51 | 161.51 | 1 | In Stock | SQUARE D/TELEMECANIQUE | 161.51 @ Qty: 1+ | |||
| AmazonTP | B0068RH8SG | 171.39 | 171.39 | 1 | In Stock | 2 | Square D | 171.39 @ Qty: 1+ | ||
| Life and Home | 41524884 | 171.45 | 171.45 | 1 | In Stock | Square D | 171.45 @ Qty: 1+ | |||
 | zaynesolutions.com | 6191845 | 171.62 | 171.62 | 1 | In Stock | SQUARE D | 171.62 @ Qty: 1+ | ||
| Graybar | 22067430 | 179.1552 | 179.1552 | 1 | 3 | Square D (Schneider Electric) | 179.1552 @ Qty: 1+ | |||
 | parisfarmersunion.com | 6191845 | 179.99 | 179.99 | 1 | In Stock | SQUARE D | 179.99 @ Qty: 1+ | ||
 | Newark | 89H5588 | 180.05 | 180.05 | 1 | In Stock | SQUARE D BY SCHNEIDER ELECTRIC | 180.05 @ Qty: 1+ | ||
| Toolbox Supply | 12004305 | 187.35 | 187.35 | 1 | In Stock | Square D | 187.35 @ Qty: 1+ | |||
| AmazonSC | B007I9R180 | 189.95 | 189.95 | 1 | In Stock | Square D by Schneider Electric | 189.95 @ Qty: 1+ | |||
 | sustainablesupply.com | C1195563 | 201.25 | 201.25 | 1 | In Stock | Square D | 3.15 | 201.25 @ Qty: 1+ | |
| steinerelectric.com | 62955 | 202.12 | 202.12 | 1 | In Stock | Square D? | 202.12 @ Qty: 1+ | |||
 | Zoro | G2305956 | 216.99 | 216.99 | 1 | 123 | Square D | 3.15 | 216.99 @ Qty: 1+ | |
 | williamsautomation.com | QBL22200 | 250.0 | 250.0 | 1 | 5 | SQUARE D | 250.0 @ Qty: 1+ | ||
 | superbreakers.com | QBL22200 | 323.6 | 323.6 | 1 | In Stock | Square D | 323.6 @ Qty: 1+ | ||
| simplybreakers.com | QBL22200 | 352.99 | 352.99 | 1 | In Stock | Schneider Electric | 352.99 @ Qty: 1+ | |||
| us.rs-online.com | 70953782 | 404.33 | 404.33 | 1 | 1 | Square D | 404.33 @ Qty: 1+ | |||
| Grainger | 3XB98 | 419.13 | 419.13 | 1 | In Stock | SQUARE D | 419.13 @ Qty: 1+ | |||
 | United Electric | 93473 | 469.26 | 469.26 | 1 | In Stock | SQUARE D BY SCHNEIDER ELECTRIC | 469.26 @ Qty: 1+ | ||
| standardelectricsupply.com | 972626 | 481.52 | 481.52 | 1 | In Stock | Square D | 481.52 @ Qty: 1+ | |||
 | Raptor Supplies | AG6QEL | 589.201002 | 589.201002 | 1 | In Stock | SQUARE D | 589.201002 @ Qty: 1+ | ||
 | crescentelectric.com | 82264 | 680.91 | 680.91 | 1 | In Stock | Square D by Schneider Electric | 680.91 @ Qty: 1+ |
