Square D XACS102

B00CON7QGM

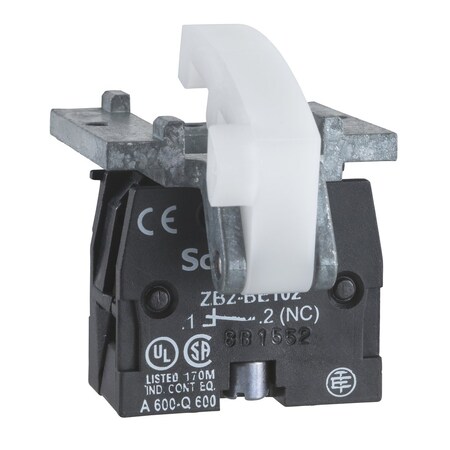

Square D Xacs102 Bottom Mntg Block 1Nc

Square D Xacs102 Bottom Mntg Block 1Nczoom

Attributes

Key Value
[Ithe] Conventional Enc.10 A
[Ui] Rated Insulation V.600 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.6 kV IEC 60947-1
Ambient Air Temperature.-40-70?C
Amperage Rating10
ApplicationControl circuit;XACA
BrandSchneider Electric
Catalog NumberXACS102
Component NameXACS
ConnectionScrew clamp terminals, .
Connections - Terminalsscrew clamp terminals, .
Contact Block Typesingle
Contact Code DesignationA600 AC-15, Ue = 240 V,.
Contact Configuration1 NC
Contact Operation1NC-Slow Break, slow-br.
Contact Ratingslow-break
Contacts Type And Compo.1 NC
Country of OriginCzech Republic, CZ - Cz.
ECCNEAR99
Electrical Circuit Typecontrol circuit
Family NameHarmony XAC Family
IEC RatingEN/IEC 60947-5-1
IP RatingIP65
ItemPendant Station Contact.
Item TypeSpring return;Single;Co.
Made in USANo
ManufacturerSchneider Electric
MaterialPolypropylene
Maximum Resistance Acro.25 MOhm
Mechanical Durability1000000 cycles
Mountingbase mounting
Mounting Of Blockbase mounting
Operating Force8 N
Operating Temperature-25-70 A Degrees C
Overvoltage Categoryclass II IEC 61140
Product Or Component Ty.contact block
SeriesXAC-S Series
Shock Resistance100 gn IEC 60068-2-27
Short-Circuit Protection10 A fuse protection ca.
Special Featuresspring return
StandardEN/IEC, UL, CSA
StandardsCSA C22.2 No 14 || EN/I.
Sub BrandXACS
Terminals Description I.(11-12)NC
Type Of Operatorspring return
UNSPSC39121561
UPC785901645252
UPC Code785901645252
Use WithOperators in Base of En.
Vibration Resistance15 gn 10-500 Hz)IEC 600.
Warranty DescriptionContractual Warranty:18.
Wattage40 W DC-13 1000000 CYCL.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG056244519.691In StockSchneider Electric0.0819.69 @ 1
thumbzoomTMEXACS10223.88116SCHNEIDER ELECTRIC23.88 @ 1
thumbzoommostelectric.comXACS10224.411In StockSQUARE D/TELEMECANIQUE24.41 @ 1
thumbzoomkempstoncontrols.co.ukXACS10227.933751In StockSchneider27.93375 @ 1
thumbzoomcrescentelectric.com147828.581In StockSchneider Electric28.58 @ 1
RS Delivers609-456228.608116Schneider Electric28.608 @ 1
Graybar9210083632.0321In StockSquare D (Schneider Electric)32.032 @ 1
Newark16B280934.421In StockSQUARE D BY SCHNEIDER ELECTRIC34.42 @ 1
thumbzoomsustainablesupply.comC303931536.741In StockSchneider Electric0.0836.74 @ 1
us.rs-online.com7033658137.0612Schneider Electric37.06 @ 1
thumbzoomNational Supply Network6967203851.941In StockSquare D51.94 @ 1
