Schneider Electric 8736SFO1V02S

B00CONQRRG

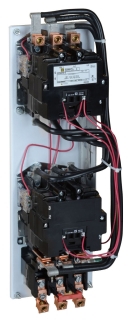

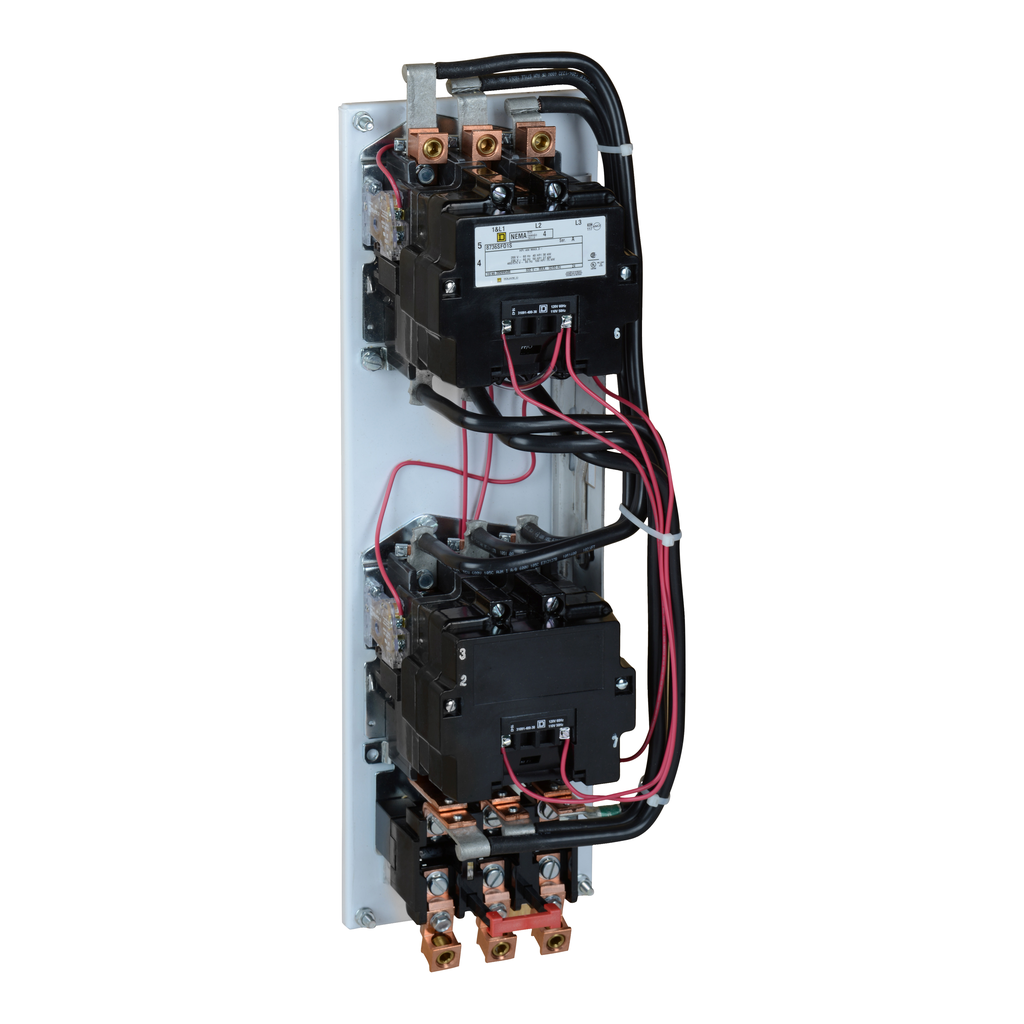

SCHNEIDER ELECTRIC 8736SFO1V02S Reversing Starter 600-Vac 135-Amp Nema Electrical Box

SCHNEIDER ELECTRIC 8736SFO1V02S Reversing Starter 600-Vac 135-Amp Nema Electrical Boxzoom

Attributes

Key Value
[Uc] Control Circuit Vo.110 V AC 50 Hz || 120 V.
[Ue] Rated Operational .600 V AC
ApplicationUSED FOR FULL-VOLTAGE R.
ApprovalsCSA, UL
Auxiliary Contact Compo.without
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8736SFO1V02S
China Rohs RegulationProduct out of China Ro.
Coil Voltage110 V AC 50 Hz;120 V AC.
ComponentNEMA Starter
ConditionNew
Connectionscrew clamp terminals
Continuous Amps Rating135 A
Control Circuitseparate control circuit
Control Unitsno control units
Country of OriginMexico
Depth177.80 mm
Electrical Connectionscrew clamp terminals
Estimated Lead Time (in.17
Eu Rohs DirectiveNot compliant
Family SeriesSquare D Starters
Gross Weight0 lbs
GTIN785901021797, 007859010.
Height680.97 mm
Industry StandardNEMA
Installation Directionvertical
Item Number8736SFO1V02S
Item Typestarter
Line Rated Current135 A
Local Signallingwithout pilot light
Made in USANo
ManufacturerSquare D, Schneider Ele.
Max HP 200/208V 3PH40 hp
Max HP 230/240V 3PH50 hp
Max HP 460/480V 3PH100 hp
Max HP 575/600V 3PH100 hp
Motor Starter Typereversing
MountingSurface
Nema Degree Of Protecti.not rated (open device)
Nema Size4
Net Weight0 lbs
Nominal Coil Voltage120 VAC
Number of Poles3
Phase3, 3 phase
Poles3
Poles Description3P
Power Supply120VAC@60HZ - 110VAC@50.
Product CertificationsUL Listed || CSA
Product Or Component Ty.starter
Range Of ProductS
Rated Power In Hp40 HP 200 V AC || 50 HP.
Reset TypeTHERMAL - MELTING ALLOY
Size4
Special Featureswithout pilot light
StandardUL LISTED - CSA CERTIFI.
Starter Amperage135 Amp
Starter Coil Voltage120 VAC, 110 VAC
Starter Enclosure TypeOpen
Starter HP100 HP @ 575 VAC, 50 HP.
Starter Nema Size4
Starter Overload TypeThermal Overload Alloy
Starter PolesThree Pole
Starter Voltage3 phase
StyleOpen
Sub BrandS
Sub ComponentReversing Starter
TerminationScrew
Thermal Overload Typemelting alloy 3
UPC785901021797
Voltage Rating600VAC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width202.44 mm
Wiring Mode3 wires

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com48098707132.061In StockSquare D7132.06 @ 1
thumbzoomblackhawksupply.com8736SFO1V02S7617.041In StockSquare D7617.04 @ 1
thumbzoomindustrialrefrigerationparts.com8736SFO1V02S7617.041In StockSquare D2.07617.04 @ 1
thumbzoomGalco8736SFO1V02S-SQD8423.651In StockSquare D8423.65 @ 1
thumbzoomgordonelectricsupply.com8736SFO1V02S9035.01In Stock10SQUARE D9035.0 @ 1
thumbzoommayerelectric.comSQD8736SFO1V02S9089.321In StockSQUARE D9089.32 @ 1
thumbzoomcrescentelectric.com25261210632.111In StockSquare D10632.11 @ 1
rspsupply.comSCHNEIDER 8736SFO1V02S10919.61In StockSchneider Electric10919.6 @ 1
