mpn:
brand:
manufacturer:
MPN:
Description:

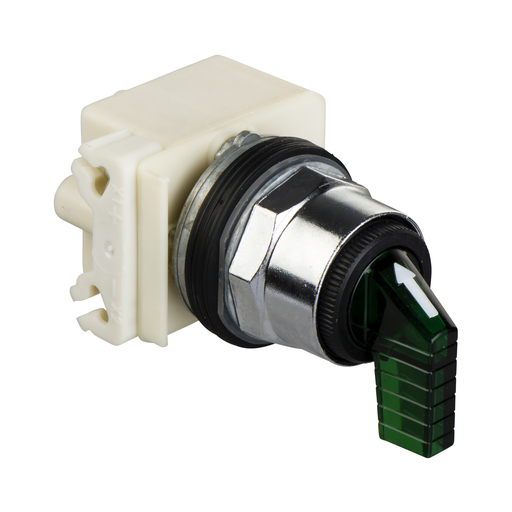

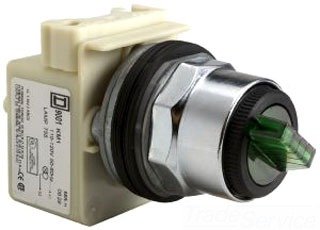

SquareD 9001K53J35LGFG SELECTOR SWITCH OPERATOR 30MM T-K 9001K53J35LGFG SELECTOR SWITCH OPERATOR 30MM T-K - MROSupply.com
Weight:
0.625
Weight:
0.625 LB
Preferred Price:
281.41
Price:
281.41
Min Simple Price:
158.99
Absolute Min Price:
225.76
Min Price:
225.76
Dimensions:
[10.0, 10.0, 10.0]
qty:
21
simpleSku:
DY0NDY:::9001K53J35LGFG
sku:
DY0NDY::QE:9001K53J35LGFG@y0
condition:
11
seller:
Zoro
amzMan:
schneider electric
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Action | SPRING RETURN (TO CENTRE) |
| Actuator | 3 POSITIONS,GREEN LONG HANDLE,TO CENTRE SPRING RETURN |
| Ambient Air Temperature For Operation | -25-70?C, -25-70 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C, -40-70?C |
| Application | 9001KA1 side 1 or 2 |
| Bezel Material | metal |
| Brand | Schneider Electric |
| Bulb Base | BA 9s |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number | 9001K53J35LGFG |
| China Rohs Regulation | X |
| Connection | SCREW CLAMP |
| Contact Configuration | without contact block |
| Contacts Type And Composition | without contact block |
| Country of Origin | MX - Mexico, Mexico |
| Device Presentation | basic element |
| Device Short Name | 9001K |
| ECCN | EAR99 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR) |
| Environmental Disclosure | ENVPEP121006EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Indicator | BA 9S,GREEN |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Item | SELECTOR SWITCH OPERATOR 30MM T-K |
| Item Type | ILLUMINATED SELECTOR SWITCH |
| Light Block Colour | green |
| Light Block Supply | direct |
| Light Source | LED |
| Made in USA | No |
| Manufacturer | Schneider Electric |
| Mechanical Durability | 500000 cycles |
| Mercury Free | Yes |
| Mounting | Panel Mount |
| Mounting Diameter | 30 mm |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Net Weight | 0.245 kg |
| Operating Temperature | -25-70 A Degrees C |
| Operator Position Information | 3 positions |
| Operator Profile | green long handle |
| Product Certifications | UL 508 || NEMA |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Product Or Component Type | head for illuminated selector switch |
| Protective Treatment | TC |
| Range Of Product | Harmony 9001K |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Shape Of Signaling Unit Head | octagonal |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Size | 30 mm |
| Special Features | CHROMIUM PLATED METAL,ILLUMINATED SELECTOR SWITCH |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 4520-EN/IEC 60947-5-4-JIS C 852-EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14-EN/IEC 60947-1,UL 508-NEMA |
| Standards | JIS C 4520 || EN/IEC 60947-5-4 || JIS C 852 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 |
| Sub Brand | 9001K |
| Sustainable Offer Status | Green Premium product |
| Type Of Operator | to centre spring return |
| UNSPSC | 39122216 |
| UPC | 785901750277 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Voltage Rating | 24 V AC/DC |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G3305912 | 158.99 | 158.99 | 1 | In Stock | Schneider Electric | 10.0 | 158.99 @ Qty: 1+ | |
 | gordonelectricsupply.com | 9001K53J35LGFG | 172.59 | 172.59 | 1 | In Stock | 10 | SQUARE D | 172.59 @ Qty: 1+ | |
| Sager Electronics | 9001K53J35LGFG | 175.95 | 175.95 | 1 | In Stock | Schneider Electric | 175.95 @ Qty: 1+ | |||
 | mostelectric.com | 9001K53J35LGFG | 195.9 | 195.9 | 1 | In Stock | SQUARE D/TELEMECANIQUE | 195.9 @ Qty: 1+ | ||
 | mayerelectric.com | SQD9001K53J35LGFG | 206.13 | 206.13 | 1 | In Stock | SCHNEIDER ELECTRIC | 0.539 | 206.13 @ Qty: 1+ | |
| us.rs-online.com | 74649254 | 302.84 | 302.84 | 1 | In Stock | Schneider Electric | 302.84 @ Qty: 1+ | |||
| Newark | 09P8279 | 336.12 | 336.12 | 1 | In Stock | SCHNEIDER ELECTRIC | 336.12 @ Qty: 1+ | |||
| Graybar | 25181382 | 351.9152 | 351.9152 | 1 | In Stock | Square D (Schneider Electric) | 351.9152 @ Qty: 1+ | |||
 | crescentelectric.com | 32201 | 490.1 | 490.1 | 1 | In Stock | Schneider Electric | 490.1 @ Qty: 1+ |
