Schneider Electric 9001SKR24BH13

B00CONPD12

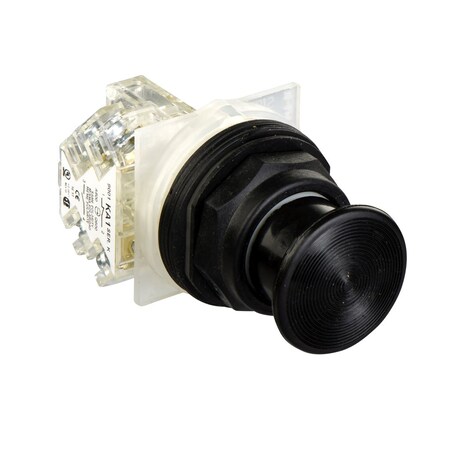

SCHNEIDER ELECTRIC 9001SKR24BH13 Pushbutton 600-Vac 10-Amp 30-Mm Sk Plus Options Electrical Box

SCHNEIDER ELECTRIC 9001SKR24BH13 Pushbutton 600-Vac 10-Amp 30-Mm Sk Plus Options Electrical Boxzoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A600-.
[Ith] Conventional Free.10 A
[Ui] Rated Insulation V.250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.2.5 kV EN/IEC 60947-1
Actionspring return
Actuatorspring return;Black mus.
Actuator Colorblack
Actuator TypeMushroom 30 mm
Bezelplastic
Bezel Materialplastic
Body StyleStandard
BrandSchneider Electric
Cad Overall Depth69 mm
Cad Overall Height45 mm
Cad Overall Width48 mm
Cap/Operator Or Lens Co.black
Catalog Number9001SKR24BH13
ConnectionScrew clamp terminals, .
Connections - Terminalsscrew clamp terminals, .
Contact Configuration1 C/O;1 C/O
Contact FormSPDT
Contact RatingAC15 - DC13
ContactsSilver Alloy
Country of OriginMexico
Current Rating10 A
Device Short Name9001SK
EnclosureNEMA 1-NEMA 12-NEMA 13-.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Head TypeRound
Insulation250 V 3)EN/IEC 60947-1
ItemPUSHBUTTON 600VAC 10AMP.
Item Typepush-button
Made in USANo
ManufacturerSchneider Electric
Materialplastic
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm
Mounting TypePanel Mount
Operating Temperature-25-70 A Degrees C
OperationMomentary
Operator Profileblack mushroom ? 35 mm,.
Overvoltage Categoryclass II IEC 61140
Product CertificationsUL 508 || NEMA
Product Or Component Ty.push-button
Protective TreatmentTC
Rated Breaking Capacity3 kA 240 V AC-15, 720 V.
Series9001SKR Series
Shape Of Screw Headcross slotted
Shock Resistance50 gn IEC 60068-2-27
Size30 mm, 1.18
Special FeaturesSCREW-IN WITH SET SCREW.
Standard50 GN IEC 60068-2-27,7 .
StandardsEN/IEC 60947-5-1 || EN/.
Sub Brand9001SK
TypePush Button
Type Of Operatorspring return
UPC785901715368
UPC Code785901715368
Voltage Rating600V, 600 V
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3301310100.991In StockSchneider Electric10.0100.99 @ 1
thumbzoommostelectric.com9001SKR24BH13205.8411SQUARE D/TELEMECANIQUE205.84 @ 1
us.rs-online.com70060431217.971In StockSchneider Electric217.97 @ 1
Newark81C5178235.461In StockSQUARE D BY SCHNEIDER ELECTRIC235.46 @ 1
thumbzoomcrescentelectric.com26560357.671In StockSchneider Electric357.67 @ 1
