Square D 9013GSG2J20E

B0078RMXX0

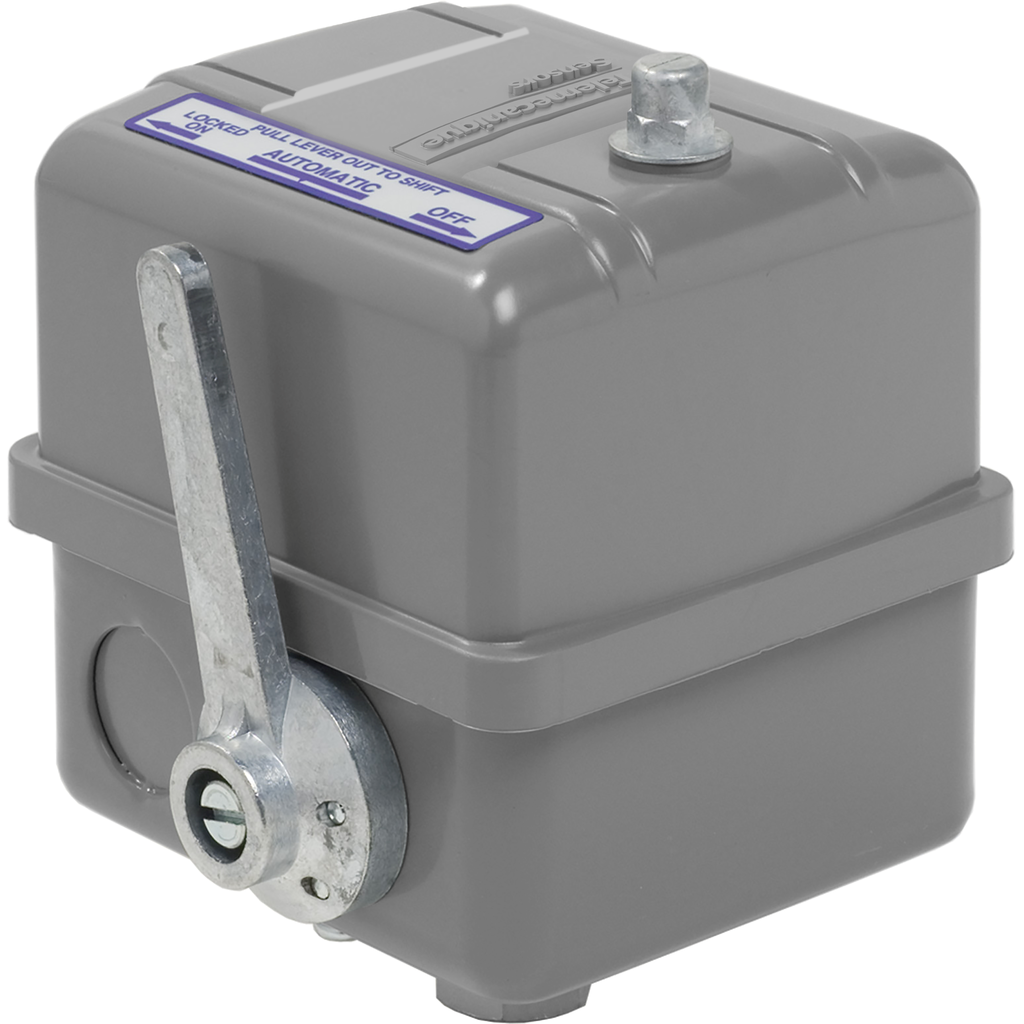

Pressure Switch, DPST, 20/40 psi, 1/4" FNPS

Pressure Switch, DPST, 20/40 psi, 1/4" FNPSzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V, 10 A @ 575V
Actuation TypeDiaphragm
Adjustable Range On Ris.20-80 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApprovalsCSA, UL
Approximate Adjustable .15-30 psi
BrandSquare D
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
Circularity ProfileENVEOLI111210EN
ColorGrey
ConditionNew
Contact TypeDPST
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock3
Depth3.88 in
DescriptionSQUARE D PUMPTROL, PUMP.
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GSG2J20E-ND
Electrical Circuit Typepower circuit
Electrical ConnectionScrew Terminals, screw-.
Electrical Durability100000 cycles 10 cyc/mn
Enclosure RatingNEMA 1
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.6
Eu Rohs DirectivePro-active compliance (.
Factory Modification3-way lever (ON-AUTO-OF.
Family SeriesSquare D Pressure Switc.
Fluid Connection Type0.25 inch NPSF internal.
Gauge Proof Pressure500 psig
Gross Weight0 lbs
GTIN785901153290
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
Increasing Pressure20-80 psi
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item Number9013GSG2J20E
Lead TimeExpected to ship in 1-2.
Local Displaywithout
Manual Switch ActionAuto/Off
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155354
Manufacturer Product Nu.9013GSG2J20E
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GSG2J20E
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight2.25 lb(US), 2.25 lbs
Operating Positionany position
PackageBox
Port Connection1/4 NPT Female
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GS
Pressure Sensor Size80 psi 5-60 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.20/40 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsUL listed file E12158 |.
Product Series9013G
Product Specific Applic.control electrically dr.
Product StatusActive
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013GSG, Square D Pumpt.
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G1746342
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsCE || NSF ANSI 372 || U.
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
TypePump Switch
Type of CircuitNormally Closed
Type Of Packingindividual
UPC785901153290
Value Of Setting20...40 psi
Warranty18 months
Weight2.000000
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key1656764297.791In StockSchneider Electric97.79 @ 1
thumbzoomindustrialrefrigerationparts.com9013GSG2J20E99.411In StockSquare D2.099.41 @ 1
thumbzoomGalco9013GSG2J20E-SQD101.011In StockSquare D2.25101.01 @ 1
thumbzoomZoroG1746342113.99131Square D2.05113.99 @ 1
thumbzoomsustainablesupply.comC2681974122.651In StockSquare D2.05122.65 @ 1
thumbzoommidwestapplianceparts.com9013GSG2J20E-SQ-P124.81In StockSquared124.8 @ 1
thumbzoomsimsupply.comZO-G1746342135.013Square D135.0 @ 1
thumbzoommostelectric.com9013GSG2J20E135.241In StockSQUARE D/TELEMECANIQUE135.24 @ 1
thumbzoommayerelectric.comSQD9013GSG2J20E136.771In StockSQUARE D2.25136.77 @ 1
grainger.caGUS6B449194.457943521In StockSQUARE D2.05194.45794352 @ 1
thumbzoomRaptor SuppliesAJ2JGQ287.17012351In StockSQUARE D287.1701235 @ 1
thumbzoomebay.com_radwell_international9013GSG2J20E329.941In StockSchneider Electric329.94 @ 1
