Square D 9013GSG2J24E

B0078RU7RY

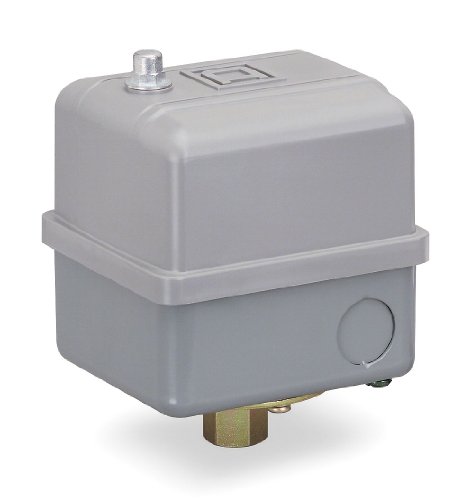

Pressure Swtch, Stndrd, 40/60 psi, 1/4"FNPS

Pressure Swtch, Stndrd, 40/60 psi, 1/4"FNPSzoom

Attributes

Key Value
AC Contact Rating10A @ 575V
ApplicationControl electrically dr.
BrandSquare D, Square D by S.
Burst Pressure300 psi
Catalog Number9013GSG2J24E
ColorGrey
ConditionNew
Contact Configuration2 NC, snap action, DPST.
Country of OriginMexico
Current Stock3
Electrical ConnectionScrew-Clamp Terminals
EnclosureNEMA 1 UL 50
Environmental ConditionsGENERAL PURPOSE (INDOOR)
Estimated Lead Time (in.7
GTIN785901870951
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V3
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item TypeElectromechanical press.
Lead TimeExpected to ship in 1-2.
Made in USANo
Manual Switch ActionAuto/Off
ManufacturerSquare D, Schneider Ele.
Mpn9013GSG2J24E
NEMA Rating1
Operating Cycles10 CYC/MN
Operating Temperature-33-257 A Degrees F
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.40/60 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch UnloaderNo
Process Connection0.25 INCH NPSF INTERNAL.
Series9013GSG
SKUZO-G1394005
Special FeaturesNitrile (Buna-N) Diaphr.
StandardCE-NSF ANSI 372-UL 508,.
StandardsANSI /NSF Standard 61, .
Sub Brand9013GS
SubCategoryElectrical
System Pressure80 PSI 5-60 PSI)
Temp. Range-22 Degrees to 257 Deg.
UPC785901870951
Warranty DescriptionContractual Warranty:18.
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com9013GSG2J24E99.411In StockSquare D2.099.41 @ 1
thumbzoomZoroG1394005103.99112Square D2.12103.99 @ 1
Onlinecomponents.com9013GSG2J24E108.661In StockSquare D108.66 @ 1
thumbzoomsimsupply.comZO-G1394005123.1713Square D123.17 @ 1
thumbzoomgordonelectricsupply.com9013GSG2J24E126.591In Stock10SQUARE D126.59 @ 1
thumbzoomcrescentelectric.com1011998176.851In StockSquare D by Schneider Electric176.85 @ 1
thumbzoomRaptor SuppliesAH2QFF262.07444251In StockSQUARE D262.0744425 @ 1
