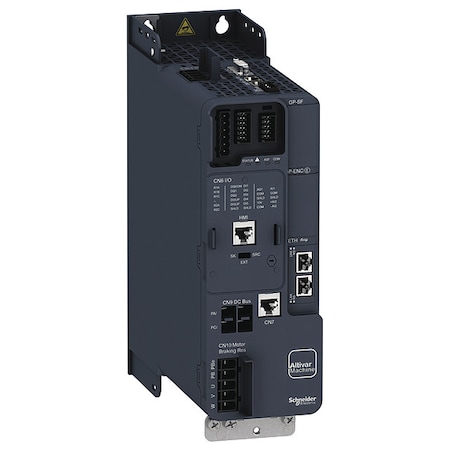

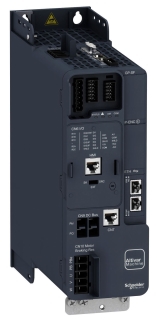

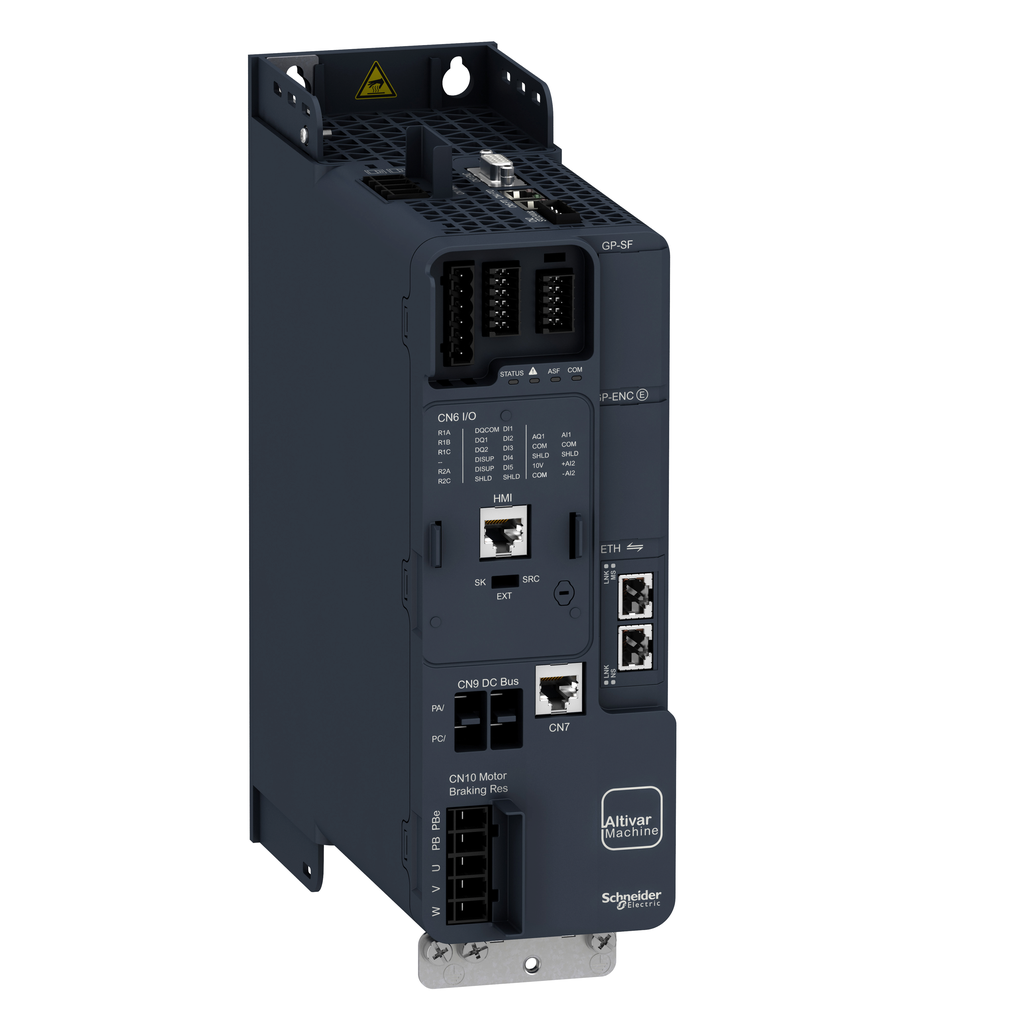

SCHNEIDER ELECTRIC ATV340U15N4E Variable Frequency Drive,2,3 Max. HP

SCHNEIDER ELECTRIC ATV340U15N4E Variable Frequency Drive,2,3 Max. HPzoom

Attributes

Key Value
4 Quadrant Operation Po.true
[Us] Rated Supply Volta.380...480 V - 15...10 %
Acceleration And Decele.linear adjustable separ.
Ambient Air Temperature.-15-50 ?C without derat.
Ambient Air Temperature.-40-70 ?C
Ambient Air Transport T.-40-70 ?C
Analogue Input Number2
Analogue Input TypeAI1 software-configurab.
Analogue Output Number2
Analogue Output Typesoftware-configurable v.
Apparent Power3.8 kVA 480 V normal du.
Applicationmachine
Assembly Stylewith heat sink
Asynchronous Motor Cont.constant torque standar.
Base Load Current At Hi.4.0 A
Base Load Current At Lo.5.6 A
Brake Chopper Integratedtrue
Braking To Standstillby DC injection
BrandSchneider Electric
Catalog NumberATV340U15N4E
CategoryMotors, Actuators, Sole.
China Rohs RegulationX
CommunicationModbus serial;EtherNet/.
Communication Port Prot.Modbus serial || EtherN.
Connector Type3 RJ45
Continuous Output Curre.5.6 A 4 kHz normal duty.
Control / Drive TypeVariable Frequency Driv.
Control MethodConstant Torque Standar.
Country of OriginIndonesia
Current - Output5.6A
Data Format8 bits, configurable od.
Depth9.15 in, 232.5 mm
DescriptionVARIABLE SPEED DRIVE, A.
Detailed DescriptionVariable Frequency Driv.
Digi-Key Part Number4008-ATV340U15N4E-ND
Digital ReadoutNo
Discrete Input Logic16 preset speeds
Discrete Input Number5
Discrete Input TypePTI programmable as pul.
Discrete Output Number2.0
Discrete Output Typeprogrammable output DQ1.
Display TypeNone
Dynamic BrakingNo
Electrical Connectionscrew terminal 1.5...4 .
Electromagnetic Compati.electrostatic discharge.
Emc Filterclass C3 EMC filter int.
Environmental Class (Du.class 3C3 according to .
Features-
For Use WithThree-phase supply volt.
For Use With/Related Pr.-
GTIN03606480966996
Height270.0 mm, 10.63 in
Input Frequency50/60 Hz
Input Phase ACThree
Input TypeAnalog, Discrete
Input Voltage380...480 V - 15...10 %.
Input Voltage Range380V AC to 480V AC
InterfaceEtherCat, RS-485
Ip Degree Of ProtectionIP20
Isolationbetween power and contr.
Itemvariable speed drive
Item TypeVariable speed drive;3 .
Line Current5.1 A 380 V normal duty.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.ATV340U15N4E
Manufacturer Standard L.1 Weeks
MarkingCE
Max. HP2 hp, 3 hp
Max. Output Amps6 A, 6.2 A, 7.2 A, 7.6 A
Maximum Acceleration Un.70 m/s? at 22 ms
Maximum Acceleration Un.5 m/s? at 9...200 Hz
Maximum Deflection Unde.1.5 mm at 2...9 Hz
Maximum Horse Power Rat.3 hp normal duty || 2 h.
Maximum Output Frequency0.599 kHz
Maximum Output Voltage480 V
Maximum Switching Curre.relay output R1C resist.
Maximum Transient Curre.6.2 A 60 s normal duty).
Mercury FreeYes
Method Of Accessslave Modbus RTU || sla.
MfrSchneider Electric
Minimum Switching Curre.relay output R1B 5 mA 2.
Motor Power Kw2.2 kW normal duty || 1.
Motor Slip Compensationadjustable || not avail.
Motor TypeAC Motor
Mountingcabinet mount
Mounting Modecabinet mount
Mounting TypeChassis Mount
Net Weight1.7 kg
Noise Level55.4 dB
Nominal Output Current4.0 A
Nominal Switching Frequ.4 kHz
Number Of Addresses1-247
Number of Motors1
Operating Positionvertical +/- 10 degree
Operating Temperature-15?C ~ 60?C
Output Voltage480V AC
Overall Depth9 1/8 in
Overall Height10 5/8 in
Overall Width3 3/8 in
Overvoltage Categoryclass III
PackageBox
Permitted Relative Humi.class 3K5 according to .
Phase3, 3 phase
Physical Interface2-wire RS 485
Pollution Degree2 IEC 61800-5-1, 2
Power Dissipation In Wnatural convection 46 W.
Product CertificationsUL || CSA || T?V || EAC.
Product Or Component Ty.variable speed drive
Product Specific Applic.machine
Product StatusActive
Prospective Line Isc5 kA
ProtectionBreak on the control ci.
Protection Typethermal protection moto.
Range Of ProductAltivar Machine ATV340
Reach RegulationReference contains Subs.
Regulation Loopadjustable PID regulator
Relay Output Number2
Relay Output Typerelay outputs R1A || re.
SeriesAltivar
Size9.15
Special FeaturesScrew terminal 1.5...4 .
StandardIP20
StandardsEN/IEC 61800-3, Environ.
Start/Stop ControlProgrammable
Supply Frequency50...60 Hz +/- 5 %
Switching Frequency2...16 kHz adjustable |.
Synchronous Motor Contr.permanent magnet motor .
Transmission FrameRTU
Transmission Rate4.8 kbit/s || 9.6 kbit/.
TypeModule
Type Of Coolingforced convection
Type Of Polarizationno impedance
UPC785901715238
UPC Code785901715238
Variantstandard version
Voltage - Load380 ~ 480V
Voltage - Supply-
Volume Of Cooling Air18.0 m3/h
Wattage - Load1500 W
WeeeThe product must be dis.
Weight-
Width85.0 mm, 3.35 in
With Line Contactor / N.With Line Contactor
With Safety Function Sa.true
With Safety Function Sa.false
With Safety Function Sa.false
With Safety Function Sa.false
With Safety Function Sa.false
With Safety Function Sa.false
With Safety Function Sa.true
With Safety Function Sa.true
With Safety Function Sa.false
With Safety Function Sa.true
With Sft Fct Safe Stop .false
