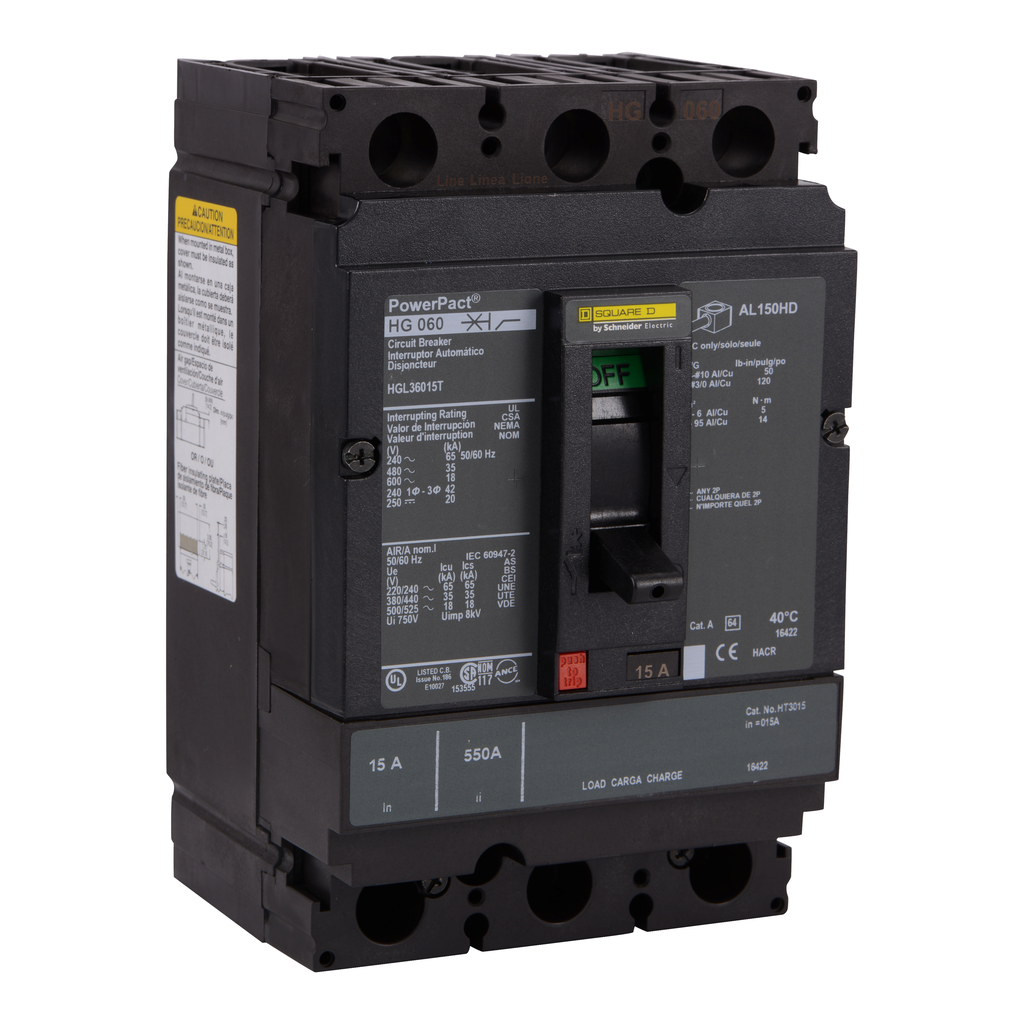

SquareD HGL36015T MOLDED CASE CIRCUIT BREAKER 600V 15A - MROSupply.com
Weight:
4.0
Weight:
4.0 LB
Preferred Price:
2318.69
Price:
2318.69
Min Simple Price:
1310.0
Absolute Min Price:
1860.2
Min Price:
1860.2
Dimensions:
[12.0, 12.0, 12.0]
qty:
21
simpleSku:
NzIzOQ:::HGL36015T
sku:
NzIzOQ::2U:HGL36015T@y0
condition:
11
seller:
gordonelectricsupply.com
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| [Ics] Rated Service Breaking Capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Ambient Air Temperature For Operation | -2-70 ?C |
| Ambient Air Temperature For Storage | -50-85 ?C |
| Amperage Rating | 15 |
| Application, Device Application | distribution |
| Awg Gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Brand | Square D by Schneider Electric |
| Breaking Capacity | 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489 |
| Breaking Capacity Code, Frame | G |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number | HGL36015T |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311006EN |
| Color | Black |
| Communication Interface | Modbus || Ethernet |
| Connection | Lugs line;lugs load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Continuous Current Rating | 80 % |
| Control Type | toggle |
| Country of Origin | United States |
| Depth | 86 mm |
| Display | HGL36015T Circuit breaker, PowerPact H, 15A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%, interchangeable trip unit |
| Electrical Connection | lugs line || lugs load |
| Environmental Disclosure | ENVPEP1311006EN |
| Eu Rohs Directive | Compliant |
| Height | 163 mm, 6.42 |
| Installed Device | trip unit field installable |
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Item Type, Product Or Component Type | circuit breaker |
| Length | 3.39 |
| Length UOM | Inch |
| Line Rated Current | 15-15 A |
| Local Signalling | switched off (OFF) 1 trip indicator green) |
| Made in USA, Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Magnetic Hold Current | 350 A |
| Magnetic Tripping Current | 750-750 A |
| Manufacturer | Schneider Electric |
| Mounting Mode | unit mount lug) |
| Mounting Support | lug |
| Net Weight | 2.2 kg |
| Network Frequency | 50/60 Hz |
| Number of Poles | 3 |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in) |
| Operating Temperature | 40 A Degrees C |
| Poles Description | 3P |
| Pollution Degree | 3 IEC 60947-1 |
| Product Certifications | UL || CSA || NOM |
| Product Name | PowerPact H |
| Protected Poles Description | 3t |
| Quality Labels | CE |
| Quantity Per Set | 1 |
| Range | PowerPact |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Special Features | Trip unit field installable;Modbus;Ethernet |
| Standard | CE-IEC-CCC-UL LISTED-CSA |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Sustainable Offer Status | Green Premium product |
| Terminal Identifier | AL150HD |
| Tightening Torque | 5-5 N.m 2.5-6 mm? (AWG 14...AWG 10) || 14-14 N.m 10-95 mm? (AWG 8...AWG 3/0) |
| Trip Range | 15 A,350 A,750 A |
| Trip Type, Trip Unit Technology | thermal-magnetic |
| UPC | 785901414971 |
| Utilisation Category | category A |
| Voltage Rating | 250 V DC-600 V AC-500 V DC |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18 months |
| Width | 104 mm, 4.09 |
| Wire Stripping Length | 16 mm |
