Schneider Electric HU363RBVW

B00CONDV0C

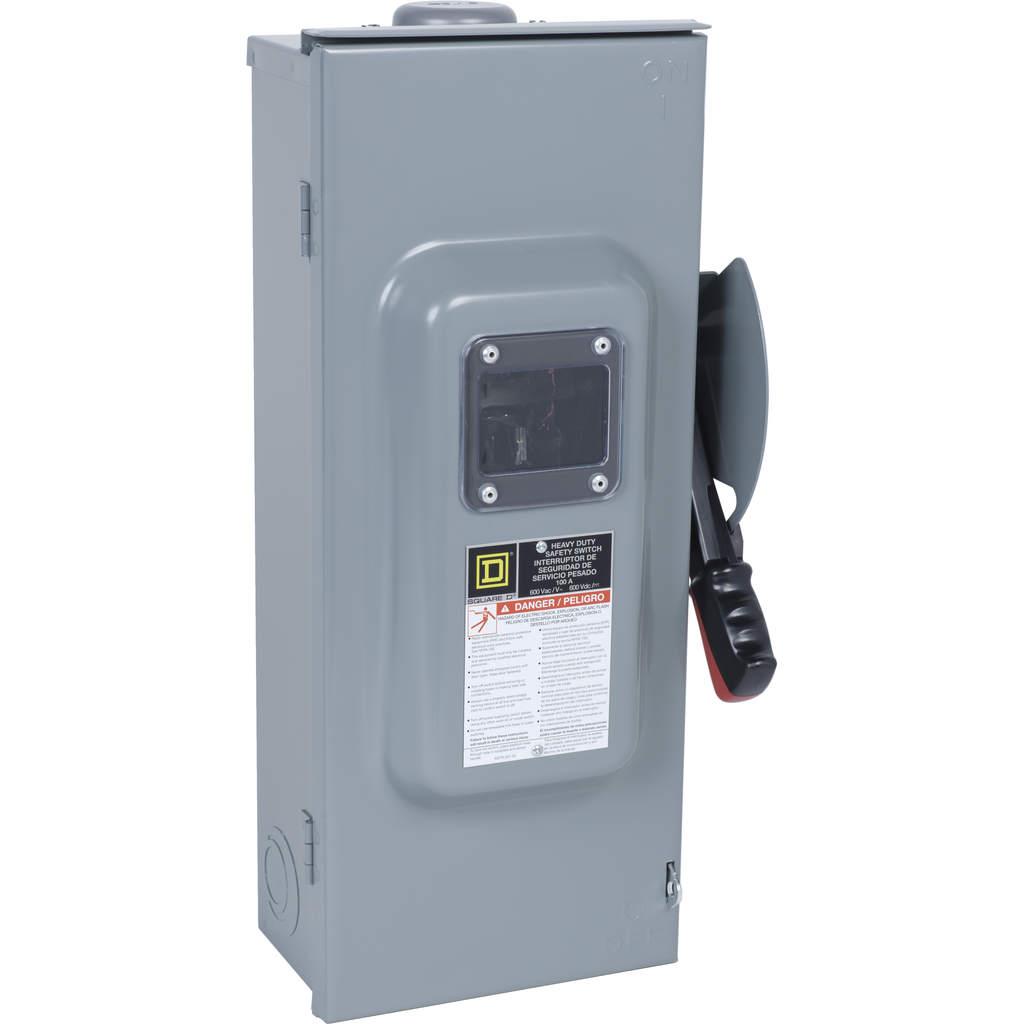

SCHNEIDER ELECTRIC Switch 600-Volt 100-Amp 3-Point Nema-3R HU363RBVW Sw Not Fusible Hd 600V 100A 3P Nema3R

SCHNEIDER ELECTRIC Switch 600-Volt 100-Amp 3-Point Nema-3R HU363RBVW Sw Not Fusible Hd 600V 100A 3P Nema3Rzoom

Attributes

Key Value
[Ue] Rated Operational .600 V AC/DC
Actuator TypeHandle
Additional FeaturesIceproof, Rainproof and.
Amperage Rating100, 100, 100 A, 100A
Applicationheavy application
Awg GaugeAWG 12...AWG 1/0 alumin.
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog NumberHU363RBVW
China Rohs RegulationProduct out of China Ro.
ColorGray
ConnectionLUGS
Contact FormTPST
Country of OriginUnited States, US - Uni.
Depth6.38 in
Device Applicationheavy application
Device Compositionnone
Device Mountingsurface
Dimensions21.25 in H x 10.5 in W .
Disconnector Device Typenon-fusible disconnect
ECCNEAR99
EnclosureNEMA 3R galvannealed st.
Enclosure TypeNEMA 3R
Environmental ConditionsRAINPROOF AND SLEET/ICE.
Environmental DisclosureENVPEP1304031
Eu Rohs DirectiveCompliant
FinishGalvannealed/Painted
Height21.25 in
Horsepower40 hp at 600 VAC 1-Phas.
Item TypeNon-fusible disconnect;.
Line Rated Current100 A
Made in USAYes
ManufacturerSchneider Electric
MaterialSteel, GALVANNEALED STE.
Mercury FreeYes
Mountingsurface
Mounting typesurface
Mounting Typesurface
Nema Degree Of Protecti.NEMA 3R galvannealed st.
NEMA Rating3R
Number Of Poles3
Number of Poles3
Phase1/3, 3-Jan, 3 phase
Product CertificationsUL listed file E2875
Product Or Component Ty.Single Throw Safety Swi.
Pvc FreeYes
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesF5 Series, F5
Series Nameheavy duty
Short Circuit Current R.200, 200 A
Size6.38
Special FeaturesLUGS
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-22 to 104, -22 to 104 .
Terminal TypeLug
Tightening Torque50-50 lbf.in (AWG 1...A.
TypeNon-Fusible, Iceproof N.
UNSPSC39122218
UPC785901693529
Voltage Rating600, 600 VAC/VDC, 600 V.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width10.25 in
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHU363RBVW880.01In Stock10SQUARE D880.0 @ 1
thumbzoommayerelectric.comSQDHU363RBVW1058.071In StockSQUARE D1058.07 @ 1
thumbzoomstandardelectricsupply.com21928971073.251In StockSquare D (Schneider Electric)1073.25 @ 1
Graybar998948061484.01In StockSquare D (Schneider Electric)1484.0 @ 1
thumbzoomcrescentelectric.com12789891670.431In StockSquare D by Schneider Electric1670.43 @ 1
