mpn:
brand:
manufacturer:
MPN:
Description:

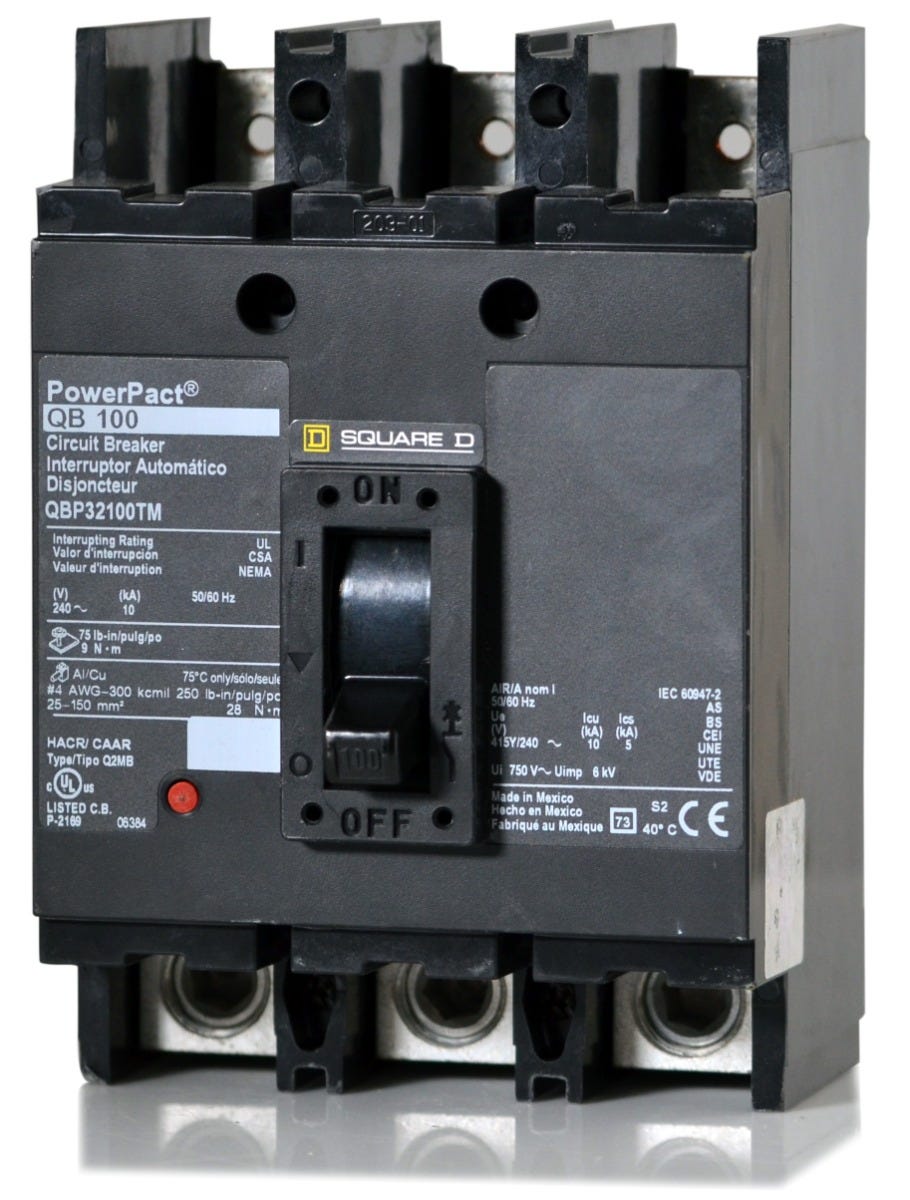

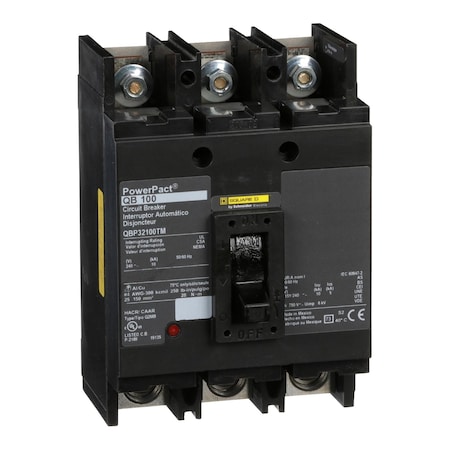

SquareD QBP32100TM MOLDED CASE CIRCUIT BREAKER 240V 100A CIRCUIT BREAKER 240V 100A - MROSupply.com
Weight:
53.0
Weight:
53.0 LB
Preferred Price:
1575.76
Price:
1575.76
Min Simple Price:
890.26
Absolute Min Price:
1264.16
Min Price:
1264.16
Dimensions:
[10.0, 7.0, 7.0]
qty:
2
simpleSku:
NDQ4OA:::QBP32100TM
sku:
NDQ4OA::K8:QBP32100TM@y0
condition:
11
seller:
superbreakers.com
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 240V AC |
| Amperage, Amperage Rating | 100 |
| Amps | 100 A |
| Application | Distribution, HACR rated Applications; Distribution |
| Approval | UL, CSA, IEC |
| Brand | Square D, Square D by Schneider Electric |
| Catalog Number, Mpn | QBP32100TM |
| Circuit Breaker Actuator | Operating Handle |
| Circuit Breaker Mounting Style | Unit Mount Lug |
| Connection | Terminal nut line;lugs load |
| Connection Type | Bolt-On |
| Country of Origin | MX - Mexico, Mexico |
| Current Rating | 100-100A |
| Depth | 3.93 in., 3.93 in |
| ECCN | EAR99 |
| Features | Mercury Free; PVC Free |
| For Use With | 225A MPL Lever Bypass Meter-Pak Metering Equipment |
| Frame | B |
| Frame Size | Q |
| Frame Type, Series | QBP |
| Functions | Long Time and Instantaneous Trip |
| Gtin, UPC | 785901439967 |
| Height | 6.47, 6.47 in., 6.47 in |
| Height UOM, Length UOM, Width UOM | Inch |
| High Amp Trip Setting | 2400 A |
| Interrupt Rating | 10kA, 10 kA at 120/208/240V AC, 10 KA 240 V AC,240 V AC |
| Interrupting Rating | 10kAIC@240V |
| Item | PowerPact Q - molded case circuit breake |
| Item Type | Circuit breaker |
| Length | 3.93, 22 mm |
| Made in USA | No |
| Manufacturer | Schneider Electric |
| Max. AIR Rating | 10 kA |
| Mounting Type | unit mount lug), Unit |
| No. of Poles | 3-Pole |
| Number of Poles, Phase, Poles | 3 |
| Protection, Trip Type | Thermal Magnetic |
| Rated Voltage | 240V AC 50/60 Hz UL |
| Special Features | UNIT MOUNT |
| Standard | UL LISTED-IEC-CSA, UL || CSA || NEMA || NOM-003-SCFI-2000 |
| Standards | NOM, GEN, RoHS, UL, CSA, NEMA, NOM |
| Terminal Connection | Load side lug, Lug, Terminal Nut |
| Torque | 28-28 N.m 25-150 mm? (AWG 4...300 kcmil) |
| Trip Range | 100 A,1200 A,2400 A |
| Trip Type | Thermal-magnetic |
| UNSPSC | 39121616 |
| Voltage | 240VAC |
| Voltage Rating | 240 V AC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.5, 4.5 mm, 4-1/2 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | superbreakers.com | QBP32100TM | 890.26 | 890.26 | 1 | 12 | Square D | 890.26 @ Qty: 1+ | ||
| simplybreakers.com | QBP32100TM | 926.99 | 926.99 | 1 | In Stock | Schneider Electric | 926.99 @ Qty: 1+ | |||
 | Raptor Supplies | AG8TXQ | 1113.461622 | 1113.461622 | 1 | In Stock | SQUARE D | 1113.461622 @ Qty: 1+ | ||
 | gordonelectricsupply.com | QBP32100TM | 1155.0 | 1155.0 | 1 | In Stock | 10 | SQUARE D | 1155.0 @ Qty: 1+ | |
 | Zoro | G3979321 | 1155.0 | 1155.0 | 1 | In Stock | 32 | Square D | 4.6 | 1155.0 @ Qty: 1+ |
 | crescentelectric.com | 21097 | 1281.06 | 1281.06 | 1 | In Stock | Square D by Schneider Electric | 1281.06 @ Qty: 1+ | ||
| Newark | 89H5611 | 1286.5 | 1286.5 | 1 | In Stock | SQUARE D BY SCHNEIDER ELECTRIC | 1286.5 @ Qty: 1+ | |||
| Graybar | 22083266 | 1560.0592 | 1560.0592 | 1 | In Stock | Square D (Schneider Electric) | 1560.0592 @ Qty: 1+ | |||
 | mostelectric.com | QBP32100TM | 2151.55 | 2151.55 | 1 | 2 | SQUARE D/TELEMECANIQUE | 2151.55 @ Qty: 1+ |
