mpn:
brand:
manufacturer:
MPN:
Description:

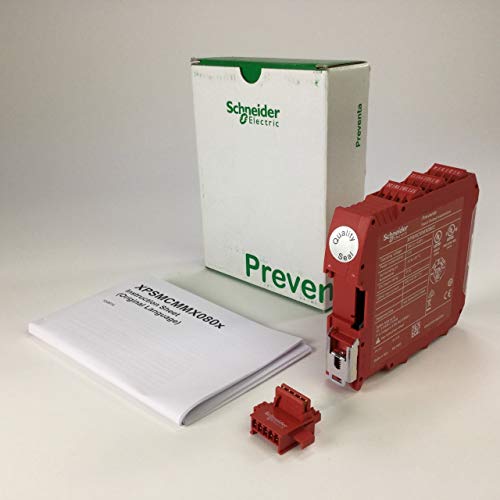

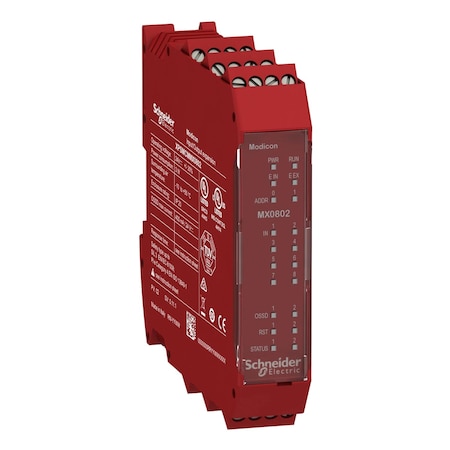

SquareD XPSMCMMX0802 8 inputs 2 outputs exp spring term - MROSupply.com
Weight:
1.543235834
Weight:
1.543235834 LB
Preferred Price:
561.12
Price:
561.12
Min Simple Price:
317.2
Absolute Min Price:
450.1
Min Price:
450.1
Dimensions:
[4.0, 4.0, 4.0]
qty:
21
simpleSku:
DY0NDY:::XPSMCMMX0802
sku:
DY0NDY::PD:XPSMCMMX0802@y0
condition:
11
seller:
cappusa.com
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 61800-5-1 |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Ambient Air Temperature For Operation | -10-55 ?C |
| Ambient Air Temperature For Storage | -20-85 ?C |
| Brand, Manufacturer | Schneider Electric |
| Cable Cross Section | 0.2-1.5 mm? - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm? - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm? - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm? - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm? - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm? - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm? - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm? - AWG 24...AWG 14 solid without cable end |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number, Item Number, Manufacturer Part Number | XPSMCMMX0802 |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409010EN |
| Component | IO module |
| Connections - Terminals | 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block |
| Country of Origin | 00 - Unknown |
| Country of Origin, Country of Origin (subject to change) | Italy |
| Depth | 22.5 mm |
| Device Short Name | XPSMCM |
| Dimensions | 4.51 in W x 0.89 in D x 3.90 in H |
| Discrete Input Type | isolated |
| Discrete Input Voltage, Discrete Output Voltage | 24 V DC |
| Discrete Output Current | 400 mA || 100 mA |
| Discrete Output Type | PNP |
| ECCN | EAR99 |
| Electrical connection | screw terminals |
| Electrical Connection | screw terminal |
| Electromagnetic Compatibility | electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3 |
| Environmental Disclosure | ENVPEP1409010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Family Series | Square D Miscellaneous |
| Function Of Module | monitoring safety detection discrete input || monitoring safety dialogue discrete input || monitoring safety actuators discrete output |
| Gross Weight, Net Weight | 0 lbs |
| GTIN | 00785901743194, 03606480748851 |
| Height | 99 mm, 3.9 |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
| Integrated Connection Type | backplane expansion bus |
| Ip Degree Of Protection | IP20 enclosure) |
| IP rating | IP20 |
| Item | Pairs Output Module Inputs Expansion 8 2 |
| Load Type | resistive load |
| Local Signalling | 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status || 2 LEDs green/red OUT output status || 2 LEDs yellow RST restart signal || 2 LEDs yellow STATUS output status |
| Made in USA | No |
| Manufacturer | Square D |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting | for DIN rail mounting |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Net Weight | 0.25 kg |
| Number Of Inputs | 8 digital || 2 digital external device monitoring |
| Number of inputs, Number of outputs, Safety PLC Digital Outputs | 8 |
| Number of inputs, Safety PLC Digital Inputs | 10 |
| Number Of Outputs | 4 test line control || 2 safety outputs OSSD contactor/drive connection || 2 configurable diagnostic connection |
| Number Of Terminal Blocks | 6 |
| Operating temperature | -10...55?C |
| Output Load | 60 Ohm |
| Overvoltage Category | II |
| Pollution Degree, Safety outputs | 2 |
| Power Consumption In W, Power Dissipation In W, Power Rating | 3 W |
| Product Certifications | cULus || T?V || RCM |
| Product Or Component Type | safe mixed I/O expansion module |
| Quality Labels | CE |
| Range Of Product | Preventa Safety automation |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 10-95 % |
| Safety category | 4 |
| Safety Level | can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061 |
| Service Life | 20 year(s) |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Standards | EN/IEC 61800-5-1 || EN/IEC 61508 || EN/ISO 13849-1 || IEC 62061 |
| Sustainable Offer Status | Green Premium product |
| Temperature Rating (Degrees F) | -10 to 55 deg C |
| Terminal Type | Screw |
| Trade name | PREVENTA |
| Type of module | extension |
| UPC | 785901743194 |
| Vibration Resistance | +/-0.35 mm 10-55 Hz)EN/IEC 61496-1 |
| Voltage Rating | 24 V |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 4.51, 114.5 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | cappusa.com | 4814091 | 317.2 | 317.2 | 1 | In Stock | Schneider Electric | 317.2 @ Qty: 1+ | ||
 | blackhawksupply.com | XPSMCMMX0802 | 330.08 | 330.08 | 1 | In Stock | Square D | 330.08 @ Qty: 1+ | ||
 | Galco | XPSMCMMX0802-SQD | 375.61 | 375.61 | 1 | In Stock | Square D | 375.61 @ Qty: 1+ | ||
 | mayerelectric.com | SQDXPSMCMMX0802 | 393.88 | 393.88 | 1 | In Stock | SQUARE D | 0.55 | 393.88 @ Qty: 1+ | |
| RS Delivers | 111-3520 | 406.224 | 406.224 | 1 | In Stock | Schneider Electric | 406.224 @ Qty: 1+ | |||
| gordonelectricsupply.com | XPSMCMMX0802 | 406.37 | 406.37 | 1 | In Stock | 10 | SQD | 406.37 @ Qty: 1+ | ||
| Digi-Key | 16614227 | 410.43 | 410.43 | 1 | In Stock | schneider-electric | 410.43 @ Qty: 1+ | |||
 | standardelectricsupply.com | 2396334 | 410.47 | 410.47 | 1 | In Stock | Square D (Schneider Electric) | 410.47 @ Qty: 1+ | ||
 | Radwell | XPSMCMMX0802 | 420.0 | 420.0 | 1 | In Stock | SCHNEIDER ELECTRIC TELEMECANIQUE | 420.0 @ Qty: 1+ | ||
| Graybar | 25782702 | 424.48 | 424.48 | 1 | 5 | Square D (Schneider Electric) | 424.48 @ Qty: 1+ | |||
 | Zoro | G7807518 | 426.18 | 426.18 | 1 | In Stock | 70 | Schneider Electric | 2.2 | 426.18 @ Qty: 1+ |
| Newark | 85Y0616 | 430.46 | 430.46 | 1 | In Stock | SCHNEIDER ELECTRIC | 430.46 @ Qty: 1+ | |||
 | crescentelectric.com | 400245 | 460.73 | 460.73 | 1 | In Stock | Schneider Electric | 460.73 @ Qty: 1+ | ||
| TME | XPSMCMMX0802 | 465.86 | 465.86 | 1 | In Stock | SCHNEIDER ELECTRIC | 465.86 @ Qty: 1+ | |||
| rspsupply.com | SCHNEIDER XPSMCMMX0802 | 468.88 | 468.88 | 1 | In Stock | Schneider Electric | 468.88 @ Qty: 1+ | |||
| industrialrefrigerationparts.com | XPSMCMMX0802 | 34087.5 | 34087.5 | 1 | In Stock | Schneider Electric | 34087.5 @ Qty: 1+ |
