Schneider XS230AAMAU20

B01N20X15U

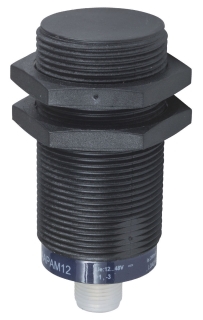

XS230AAMAU20 inductive sensor XS2 M30 - L70mm - PPS -Sn22mm - 24..240VAC/DC - 1/2"

XS230AAMAU20 inductive sensor XS2 M30 - L70mm - PPS -Sn22mm - 24..240VAC/DC - 1/2"zoom

Attributes

Key Value
[Sn] Nominal Sensing Di.22 mm
[Us] Rated Supply Volta.24...240 V AC 50/60 Hz .
Ambient Air Temperature.-25-85 ?C
Ambient Air Temperature.-40-85 ?C
Body Typefixed
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI1110045
Detection Facefrontal
Detector Flush Mounting.non flush mountable
Device Applicationfood and beverage
Differential Travel1...15% of Sr
Discrete Output Function1 NO
Electrical Connectionmale connector 1/2"20 U.
Enclosure MaterialPPS
Environmental DisclosureENVPEP111006EN
Eu Rohs DirectivePro-active compliance (.
Front MaterialPPS
Ip Degree Of ProtectionIP67 conforming to IEC .
Length70 mm
Market Segmentpharmaceutical
MarkingCE
Materialplastic
Maximum Delay First Up30 ms
Maximum Delay Recovery2 ms
Maximum Delay Response0.5 ms
Maximum Residual Current0.8 mA open state
Mercury FreeYes
Operating Zone0-17.6 mm
Output Circuit TypeAC/DC
Product CertificationsUL || CSA || CCC
Range Of ProductTelemecanique Inductive.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Sensing Range> 0.59...1.57 in (> 15..
Sensor Designcylindrical M30
Sensor NameXS2
Sensor Typeinductive proximity sen.
Series NameApplication
Shock Resistance50 gn 11 ms IEC 60068-2.
Size70 mm
Status Ledoutput state 1 LED yell.
Supply Voltage Limits20-264 V AC/DC
Sustainable Offer StatusGreen Premium product
Switching Capacity In Ma5...200 mA DC || 5...30.
Thread TypeM30 x 1.5
Threaded Length51 mm
Type Of Output Signaldiscrete
Vibration Resistance25 gn +/- 2 mm 10-55 Hz.
Warranty18 months
Wiring Technique2-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comXS230AAMAU2095.091In Stock10SQUARE D95.09 @ 1
thumbzoommayerelectric.comSQDXS230AAMAU20104.641In StockSQUARE D104.64 @ 1
thumbzoomRadwellXS230AAMAU20110.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE110.0 @ 1
thumbzoomkempstoncontrols.co.ukXS230AAMAU20154.0378711In StockSchneider154.037871 @ 1
