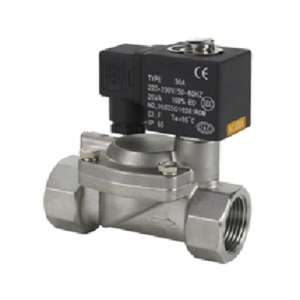

<p><strong>STC, 2DS200-3/4-4-D, 2DS200 220VAC Coil 3/4" NPT Anti-Water Hammering Pilot Diaphragm Solenoid Valve </strong> </p>
Attributes
| Key ^ | Value |
|---|---|
| Action | Anti-Hammering, Slow Closing, Pilot Diaphragm |
| Coil Duty | 100% ED (Continuous Duty) |
| Coil Power | AC Coil: 28VA |
| Flow Coefficient (Cv) | 7 |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Material | 304 Stainless Steel |
| Operating Pressure | AC Coil: 4 PSI to 175 PSI |
| Operating Temperature | 14?F to 176?F (-10?C to 80?C) |
| Orifice | 20mm |
| Port Size (NPT) | 3/4" |
| Seal Material | Standard Option: NBR (Buna N) |
| Service | Liquid, Water, Oil, Air |
| Valve Type | 2 Way, Normally Closed (NC) |
| Voltage Options | 220/240VAC (50/60Hz) |
| Voltage Tolerance | ?10% of Specified Voltage |
| Wetted Surfaces | Standard 2DS Series Valve Body: 304 Stainless Steel |
