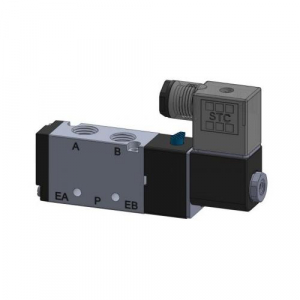

<p><strong>STC, 4V310-1/4B-2A-D, 1/4" NPT 5 Port 4 Way 24VAC DIN Namur Style Solenoid Valve, 200C Coil </strong> </p> <strong>Features: </strong> <ul><li>Port/Position/Solenoid: 5/2/1 </li> <li>Four Way Valve </li> <li>Single Solenoid </li> <li>Operating Temp: 14-140 deg. F </li> <li>Operating Pressure: 21 - 115PSI </li> <li>Response Time <20ms</li> </ul>
Attributes
| Key ^ | Value |
|---|---|
| Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F |
| Coil Locking Nut | M8x0.75 Threads |
| Coil Power | 3/4.8W |
| Coil Voltage Options | 24VAC |
| Cv | 1.68 |
| Electrical Connection | DIN |
| Manual Override | Detentable (depress & rotate) |
| Operating Pressure | Operating Pressure: 21 to 115 PSI, Proof Pressure: 200 PSI (leaks develop) |
| Operating Temperature | 14 to 140?F (-10 to 60?C) |
| Port & Mounting | Body Ported, 4-Way, 2-Position, Spring Return |
| Port Sizes (NPT) | 1/4" |
| SCFM @ 100 PSI | 80 |
| Wetted Surfaces | Anodized Aluminum, NBR (Buna N), Stainless Steel |
| Working Medium | 40 micron filtered air or inert gas |
