STMicroelectronics STGWT40H65DFB

B073RPQHFF

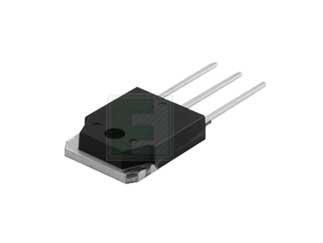

ST MICROELECTRONICS STGWT40H65DFB Discretes igbts STGWT40 Series 650 V 80 A Through Hole Silicon IGBT - TO-3P - 5 item(s)

ST MICROELECTRONICS STGWT40H65DFB Discretes igbts STGWT40 Series 650 V 80 A Through Hole Silicon IGBT - TO-3P - 5 item(s)zoom

Attributes

Key Value
Base Product NumberSTGWT40
CategoryDiscrete Semiconductor .
Current - Collector (Ic.80 A
Current - Collector Pul.160 A
DescriptionIGBT 650V 80A 283W TO3P.
Detailed DescriptionIGBT Trench Field Stop .
Digi-Key Part Number497-14229-5-ND
ECCN EUEAR99
ECCN US175.0
Gate Charge210 nC
GradeEcopack2
IGBT TypeTrench Field Stop
Input TypeStandard
ManufacturerSTMicroelectronics
Manufacturer Product Nu.STGWT40H65DFB
Manufacturer Standard L.52 Weeks
MfrSTMicroelectronics
Mounting TypeThrough Hole
Operating Temp Max Cels.-55.0
Operating Temp Min Cels.TO-3P
Operating Temperature-55?C ~ 175?C (TJ)
PackageTube
Package / CaseTO-3P-3, SC-65-3
Package NameIndustrial
Packing TypeNEC
Power - Max283 W
Product StatusActive
Reverse Recovery Time (.62 ns
RoHs compliantTube
Series-
Supplier Device PackageTO-3P
Switching Energy498?J (on), 363?J (off)
Td (on/off) @ 25?C40ns/142ns
Test Condition400V, 40A, 5Ohm, 15V
Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
Voltage - Collector Emi.650 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics80466453.5288005STMicroelectronics3.528 @ 800
HotendaH18487104.051580STMicroelectronics4.05 @ 5
thumbzoomst.comSTGWT40H65DFB4.9615STMicroelectronics4.96 @ 5
thumbzoomDigi-Key45523035.111296STMicroelectronics5.11 @ 5
thumbzoomNewark69AH27385.271112STMICROELECTRONICS5.27 @ 5
