| ANSI Code | 3NU-TPG221 |
| ANSI Number | 3NUTPG221-BN7000 |
| Cast Iron (K) Compatibility, Super Alloy (S) Compatibility | Yes |
| Chip-Breaker, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility | No |
| Clearance Angle | 11 Degrees |
| Coating | Cermet |
| Corner Radius | 0.0156 in |
| Country of Origin (subject to change) | Multiple |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Material Coverage | Multi-Mini Tip |
| Depth of Cut | 0.0150 in |
| Features | Fracture Resistant, Wear Resistant |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | BN7000 |
| Included Angle | 60 Degrees |
| Inscribed Circle | 1/4 in |
| Insert Application | Finishing |
| Insert Holding Type | No Screw Hole |
| Insert Material, Material, Material - Machining | CBN |
| Insert Shape, Shape | Triangle |
| Insert Size | 221 |
| Insert Style | TPG |
| Insert Thickness | 0.1250" |
| ISO Number | 3NU-TPGN110304 |

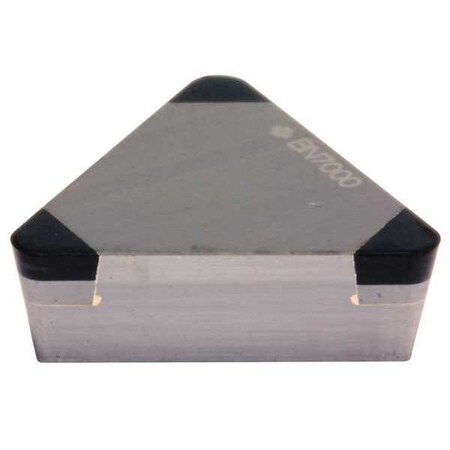

| Item | Triangle Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Style | Screw-On |
| No. of Edges, Number of Cutting Edges | 3 |
| Nose Radius | 0.0156" |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Rake | Positive |
| Thickness | 0.125 in |
| Workpiece Compatibility | Cast Iron (K), Super Alloy (S) |
