ANSI Code, ISO Number | CGAR1504300 |
ANSI Number | CGAR1504300-BN2000 |
Cast Iron (K) Compatibility, Hardened (H) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | Yes |
Coating | CVD |
Corner Radius | 0.0078 in |
Country of Origin (subject to change) | Multiple |
Cutting Application | Grooving |
Cutting Direction | Right Hand |
Depth of Cut | 0.1575 in |
For Toolholder | GWB Grooving Toolholders |
For Use With | Toolholders, Boring Bars |
Grade, Manufacturer Grade | BN2000 |
Inscribed Circle | 5/8 in |
Insert Application | Medium |
Insert Holding Type | Screw |
Insert Material, Material, Material - Machining | CBN |
Insert Shape | Diamond |
Insert Size | 1504300 |
Insert Style | CGA |

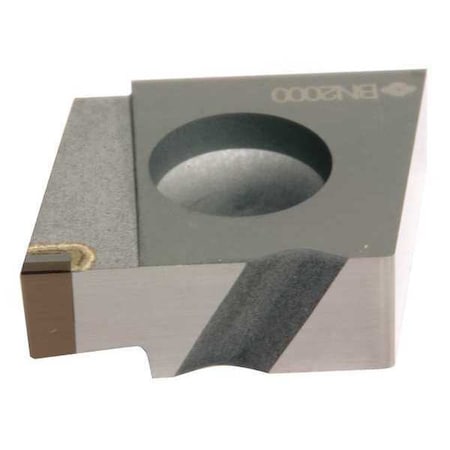

Item | Parting and Grooving Insert |
Measurement System | Fractional Inch |
Mounting Hole Dia. | 0.625" |
Mounting Style | Screw-On |
No. of Edges, Number of Cutting Edges | 1 |
Non Ferrous (N) Compatibility, Stainless (M) Compatibility | No |
Nose Radius | 0.0078" |
Primary Material Application | Hardened Steel |
Primary Material Application ISO Code | H |
Rake | 0 Degrees |
Thickness | 3/16 in |
Workpiece Compatibility | Cast Iron (K), Hardened (H), Steel (P), Super Alloy (S) |
