| ANSI Code | CNMA434 |
| ANSI Number | CNMA434-AC405K |
| Cast Iron (K) Compatibility | Yes |
| Chip-Breaker, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Clearance Angle | 0 Degrees |
| Coating | PCD |
| Coating Process | CVD |
| Corner Radius | 1/16 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Excellent Wear Resistance |
| Finish - Machining | Al203+TiCN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | AC405K |
| Included Angle | 80 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 434 |
| Insert Style | CNMA |
| Insert Thickness | 0.1875" |
| ISO Number | CNMA120416 |

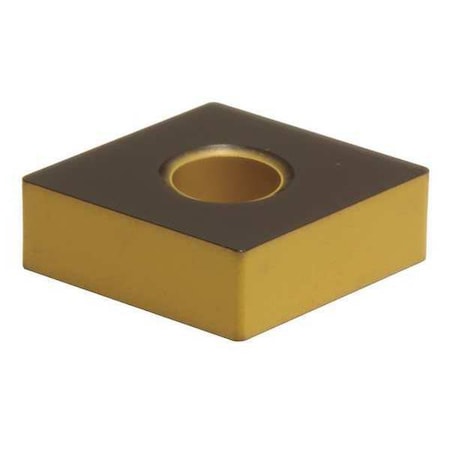

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Screw-On |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.0625" |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Rake | Positive |
| Shape | Rhombic |
| Thickness | 3/16 in |
| Workpiece Compatibility | Cast Iron (K) |
