Attributes
| Key | Value |
|---|---|
| ANSI Code | DCGT21.51LFY |
| Chip-Breaker | Yes |
| Chip-Breaker Style | Single |
| Clearance Angle | 7 Degrees |
| Corner Radius | 1 |
| Cutting Direction | Neutral |
| Features | Excellent Wear Resistance |
| Finish - Machining | AlTiSiN |
| For Use With | Toolholders, Boring Bars |
| Included Angle | 55 Degrees |
| Inscribed Circle | 2 |
| Insert Shape | Diamond |
| Insert Size | 21.51 |
| Insert Style | DCGT |
| ISO Number | DCGT070204L-FY |

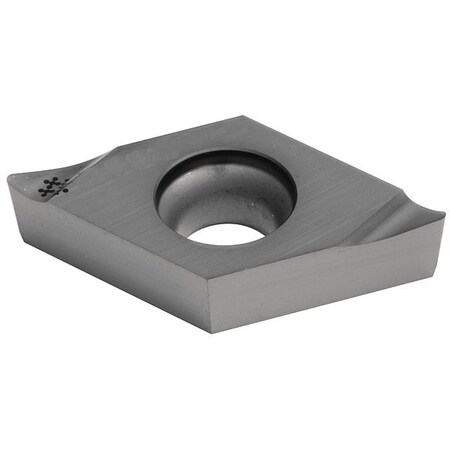

| Item | Diamond Turning Insert |
| Manufacturer Grade | AC5015S |
| Mounting Hole Dia. | 0.110" |
| Mounting Style | Screw |
| Number of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | K, M, N, P, S |
| Rake | 15 Degrees |
| Relief Angle | 7 Degrees |
