| ANSI Code | DNMG333EGE |
| ANSI Number | DNMG333EGE-AC830P |
| Cast Iron (K) Compatibility, Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility | Yes |
| Chip-Breaker Code | EGE |
| Chip-Breaker Style | Double |
| Clearance Angle | 0 Degrees |
| Coating, Coating Process | CVD |
| Corner Radius | 3/64 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Excellent Wear Resistance |
| Finish - Machining | Al203+TiCN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | AC830P |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Super Alloy (S) Compatibility | No |
| Included Angle | 55 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Medium |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 333 |
| Insert Style | DNMG |
| Insert Thickness | 0.1875" |
| ISO Number | DNMG110412N-GE |

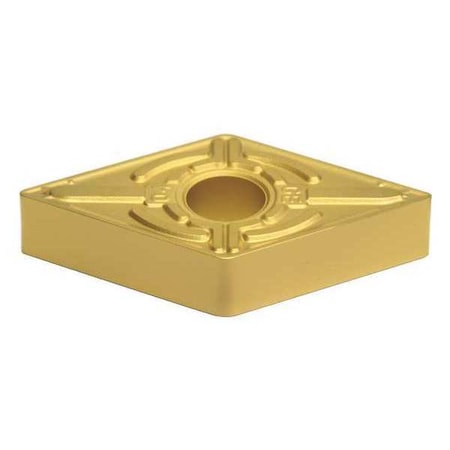

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.150" |
| Mounting Style | Top and hole Clamping |
| No. of Edges, Number of Cutting Edges | 2 |
| Nose Radius | 0.0469" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Positive |
| Shape | Rhombic |
| Thickness | 3/16 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
