Attributes
| Key | Value |
|---|---|
| ANSI Code | SEMT13T3AGSR-H-ACP100 |
| ANSI Number | SEMT13T3AGSR-H-ACP100 |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | H |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 20 Degrees |
| Coating | CVD |
| Coating Process | CVD |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 13.40mm |
| Depth of Cut | 6.00mm |
| Features | Wear and Thermal Cracking Resistance |
| Finish - Machining | TiCN+Al2O3 |
| For Toolholder | WGX13032EW, WGX13040EW, WGX13050EW, WGX13063EW, WGX410000R, WGX42000EW, WGX42000R, WGX42500EW, WGX42500R, WGX43000R, WGX44000R, WGX44000R-1.50, WGX45000R, WGX46000R, WGX48000R, WGXF42000R, WGXF42500R, WGXF43000R, WGXF44000R, WGXF44000R-1.50, WGXF45000R, WGXF46000R, WGXF48000R, WGXM42000R, WGXM42500R, WGXM43000R, WGXM44000R, WGXM44000R-1.50, WGXM45000R, WGXM46000R, WGXM48000R |
| For Use With | Indexable Milling Cutters |
| Grade | ACP100 |
| Hardened (H) Compatibility | No |
| Hole Type | Countersink Hole |
| Included Angle | 90 Degrees |
| Inscribed Circle | 0.5280 in |
| Insert Application | Finishing |
| Insert Holding Type | Screw-On |
| Insert Material | Carbide |
| Insert Shape | Square |
| Insert Size | 13T3 |
| Insert Style | SEMT |
| Insert Thickness | 0.156" |
| ISO Number | SEMT13T3AGSR-H-ACP100 |

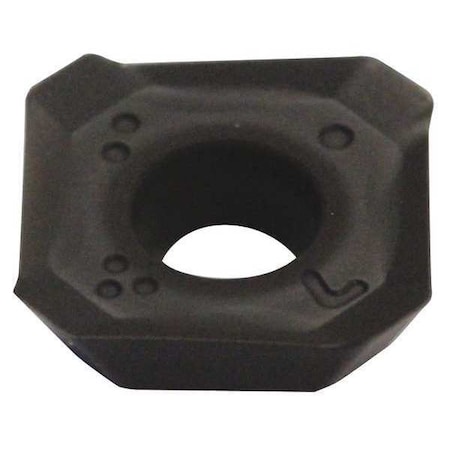

| Item | Square Milling Insert |
| Lead Angle | 45 Degrees |
| Manufacturer Grade | ACP100 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Style | Screw-On |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Number of Cutting Edges | 4 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | -20 Degrees to -24 Degrees Radial, 20 Degrees to 22 Degrees Axial |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Shape | Square |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Thickness | 0.156 in |
| Wiper Insert | Yes |
| Workpiece Compatibility | Steel (P) |
