| ANSI Code | SNMG866ENZ |
| ANSI Number | SNMG866ENZ-AC820P |
| Cast Iron (K) Compatibility, Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility | Yes |
| Chip-Breaker Code | ENZ |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 Degrees |
| Coating, Coating Process | CVD |
| Corner Radius | 3/32 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Wear Resistance and Fracture Resistance |
| Finish - Machining | Al203+TiCN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | AC820P |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Super Alloy (S) Compatibility | No |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1 in |
| Insert Application | Roughing |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape, Shape | Square |
| Insert Size | 866 |
| Insert Style | SNMG |
| Insert Thickness | 0.3750" |
| ISO Number | SNMG250924N-UZ |

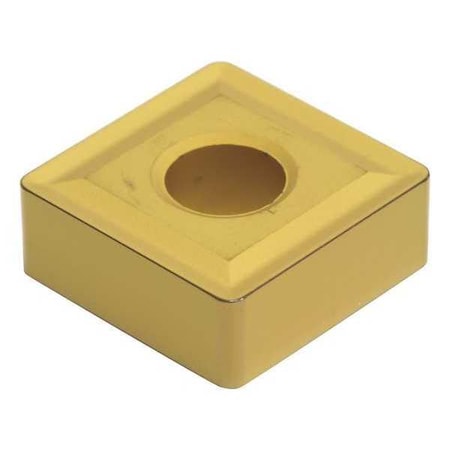

| Item | Square Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.362" |
| Mounting Style | Top and hole Clamping |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.0938" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application ISO Code | K20, P20 |
| Rake | Positive |
| Thickness | 3/8 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
