| ANSI Code, ANSI Number, ISO Number | SNMT1205ZNEN-L-ACK200 |
| Cast Iron (K) Compatibility, Chip-Breaker, Steel (P) Compatibility, Wiper Insert | Yes |
| Chip-Breaker Code | L |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 0 Degrees |
| Coating, Coating Process | CVD |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Milling |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.70mm |
| Depth of Cut | 0.3140 in |
| Features | Anti-Adhesion and Wear Resistance |
| Finish - Machining | TiCN |
| For Toolholder | DNX12080R, DNX12080RS, DNX12100R, DNX12100RS, DNX12125R, DNX12125RS, DNX12160R, DNX12160RS, DNX12200R, DNX12200RS, DNX12250R, DNX12250RS |
| For Use With | Milling Cutters |
| Grade, Manufacturer Grade | ACK200 |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Hole Type | Countersink Hole |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Medium |
| Insert Holding Type, Mounting Style | Screw-On |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Square |
| Insert Size | 1205 |
| Insert Style | SNMT |
| Insert Thickness | 0.270" |

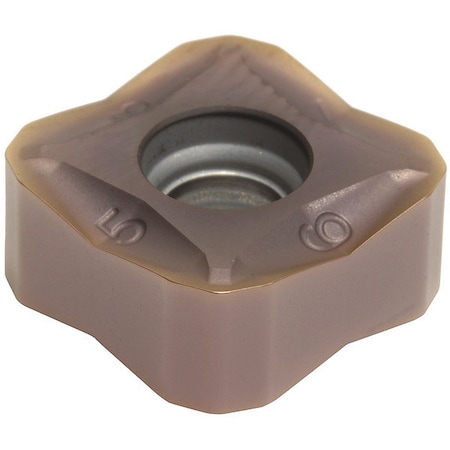

| Item | Square Milling Insert |
| Lead Angle | 25 Degrees |
| Measurement System | Fractional Inch |
| No. of Edges, Number of Cutting Edges | 8 |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Rake | Negative |
| Thickness | 0.270 in |
| Workpiece Compatibility | Cast Iron (K) |
