Description:

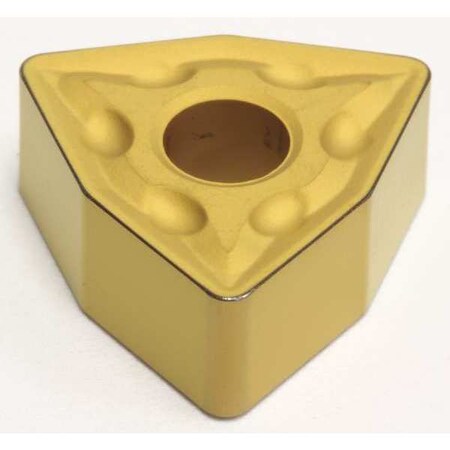

Turning Insert, Chip-Breaker Code EMU, Inscribed Circle 1/2 in, Al203+TiCN
Attributes
| Key ^ | Value |
|---|---|
| Cast Iron (K) Compatibility, Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Cutting Direction | Neutral |
| For Use With | Toolholders, Boring Bars |
| Grade | AC810P |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility | No |
| Inscribed Circle | 1/2 in |
| Insert Application | Roughing |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Insert Size | 432 |
| Insert Style | WNMG |
| Insert Thickness | 0.1875" |
| ISO Number | WNMG080408NMU |
| Item | Turning Insert |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Top and hole Clamping |
| No. of Edges | 3 |
| Nose Radius | 0.0313" |
| Rake | 4 Degrees |
| Through Hole Inside Dia. | 0.2031 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
