| ANSI Code, ANSI Number, ISO Number | XNMU060604PNER-G-ACP100 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | G |
| Chip-Breaker Style | General Purpose |
| Chip-Breaker, Steel (P) Compatibility, Wiper Insert | Yes |
| Clearance Angle, Lead Angle | 0 Degrees |
| Coating, Coating Process | CVD |
| Corner Radius | 0.40mm |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Milling |
| Cutting Direction | Neutral |
| Cutting Edge Length | 3.20mm |
| Depth of Cut, Thickness | 6.00mm |
| Finish - Machining | TiCN+Al2O3 |
| For Toolholder | DFC21000EW, DFC21250EW, DFC21500EW, DFC22000EW, DFC22000R, DFC22500EW, DFC22500R, DFC23000R, DFC24000R, DFC24000R-1.50, DFC25000R, DFC26000R, DFC28000R, DFCF22000R, DFCF22500R, DFCF23000R, DFCF24000R, DFCF24000R-1.50, DFCF25000R, DFCF26000R, DFCF28000R, DFCM21500EW, DFCM22000EW, DFCM22000R, DFCM22500EW, DFCM22500R, DFCM23000R, DFCM24000R, DFCM24000R-1.50, DFCM25000R, DFCM26000R, DFCM28000R |
| For Use With | Milling Cutters |
| Grade, Manufacturer Grade | ACP100 |
| Inscribed Circle | 0.180 in |
| Insert Application | Finishing |
| Insert Holding Type, Mounting Style | Screw-On |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Triangle |
| Insert Size | 060604 |
| Insert Style | XNMU |
| Insert Thickness | 0.240" |

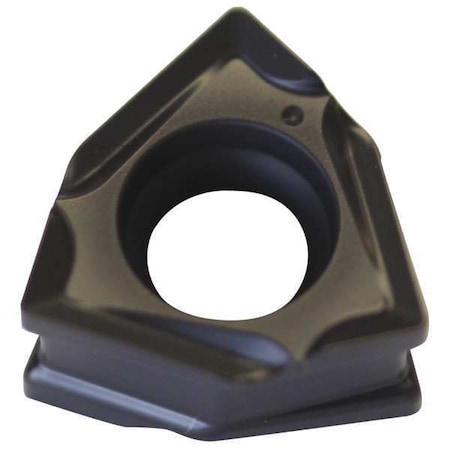

| Item | Triangle Milling Insert |
| Measurement System | Metric |
| No. of Edges, Number of Cutting Edges | 6 |
| Nose Radius | 0.410" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | -5 Degrees Radial, -9 Degrees Axial |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Width | 11.20mm |
| Workpiece Compatibility | Steel (P) |
