mpn:
brand:
manufacturer:
MPN:
Weight:
26.0
Weight:
26.0 LB
Preferred Price:
718.62
Price:
718.62
Min Simple Price:
406.0
Absolute Min Price:
576.52
Min Price:
576.52
Dimensions:
[19.0, 19.0, 2.0]
qty:
21
simpleSku:
NTcwMQ:::8MPC180S12
sku:
NTcwMQ::PI:8MPC180S12@y0
condition:
11
seller:
Zoro
amzMan:
tb woods
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Belt width | 12 mm |
| Bore type | Taper locking bushing |
| Bushing | 2517 |
| Bushing bore range | 1/2 - 2 11/16 |
| Dimension | 1.75 |
| Face width | 0.85 |
| Flanges | 0 |
| Groove profile | 8M |
| Hub Diameter | 4.88 |
| Hub diameter | 4.88 |
| Hub length | 1.75 |
| I.D. | 16.5 |
| Inertia WR2 (lbs ft2) | 7.34 |
| Inertia WR? | 7.34 |
| Inside hub projection | 0 |

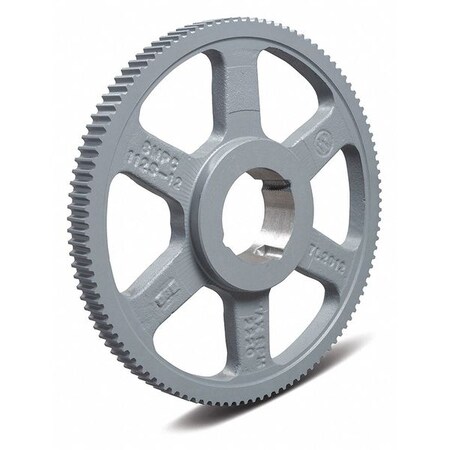

| Item | QT PowerChain II,8MPC-180S-12-2517 |
| Material type | Cast iron |
| Number of grooves | 180 |
| Number of hubs | 2 |
| Number of teeth | 180 |
| O.D. | 17.98 |
| O.D. (in) | 17.983 |
| Outside hub projection | 0.9 |
| Pitch | 8 |
| Pitch diameter | 18.05 |
| Rim face | 0.85 |
| RPM upper limit | 1400 |
| Tooth pitch | 8 |
| Type | B3 |
