Taiyo Yuden NS10145T6R8NNA

B00M2DFOMC

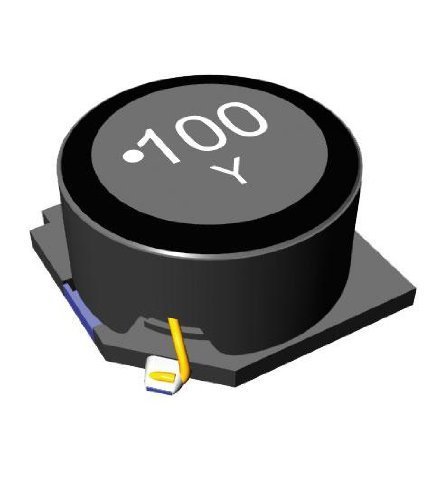

TAIYO YUDEN NS10145T6R8NNA

TAIYO YUDEN NS10145T6R8NNAzoom

Attributes

Key Value
Alternate Part No.963-NS10145T6R8NNA
BrandTaiyo Yuden
Case Height4.5 mm
Case Length10.1 mm
Case Width10.1 mm
CategoryInductors, Coils, Chokes
Current - Saturation (I.5.05A
Current Rating (Amps)4.22 A
DC Resistance (DCR)24mOhm Max
Frequency - Self Resona.23.1MHz
Height - Seated (Max)0.191" (4.85mm)
Inductance6.8 uH, 6.8 ?H
Inductance Frequency - .100 kHz
ManufacturerTaiyo Yuden
Manufacturer Part No.NS10145T6R8NNA
Material - CoreFerrite
Maximum DC Current5.05 A
Maximum DC Resistance20 mOhms
MfrTaiyo Yuden
Mounting TypeSurface Mount
Operating Temperature-40?C ~ 125?C
Operating Temperature R.- 40 C to + 125 C
PackageTape & Reel (TR)
Package / CaseNonstandard
PackagingReel
Product CategoryFixed Inductors
Product StatusActive
Q @ Freq-
Ratings-
Self Resonant Frequency23.1 MHz
SeriesNS
ShieldingShielded
Size / Dimension0.398" L x 0.398" W (10.
Supplier Device Package-
Termination StyleSMD/SMT
Tolerance?30%
TypeDrum Core, Wirewound

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark66T90770.4122000242TAIYO YUDEN0.412 @ 1
HotendaH21645170.4914500242Taiyo Yuden0.4914 @ 500
Digi-Key27747091.184514976Taiyo Yuden1.1845 @ 1
thumbzoomswatee.comNS10145T6R8NNA2.091152Taiyo Yuden2.09 @ 1
